Bobcat
/
E14
/

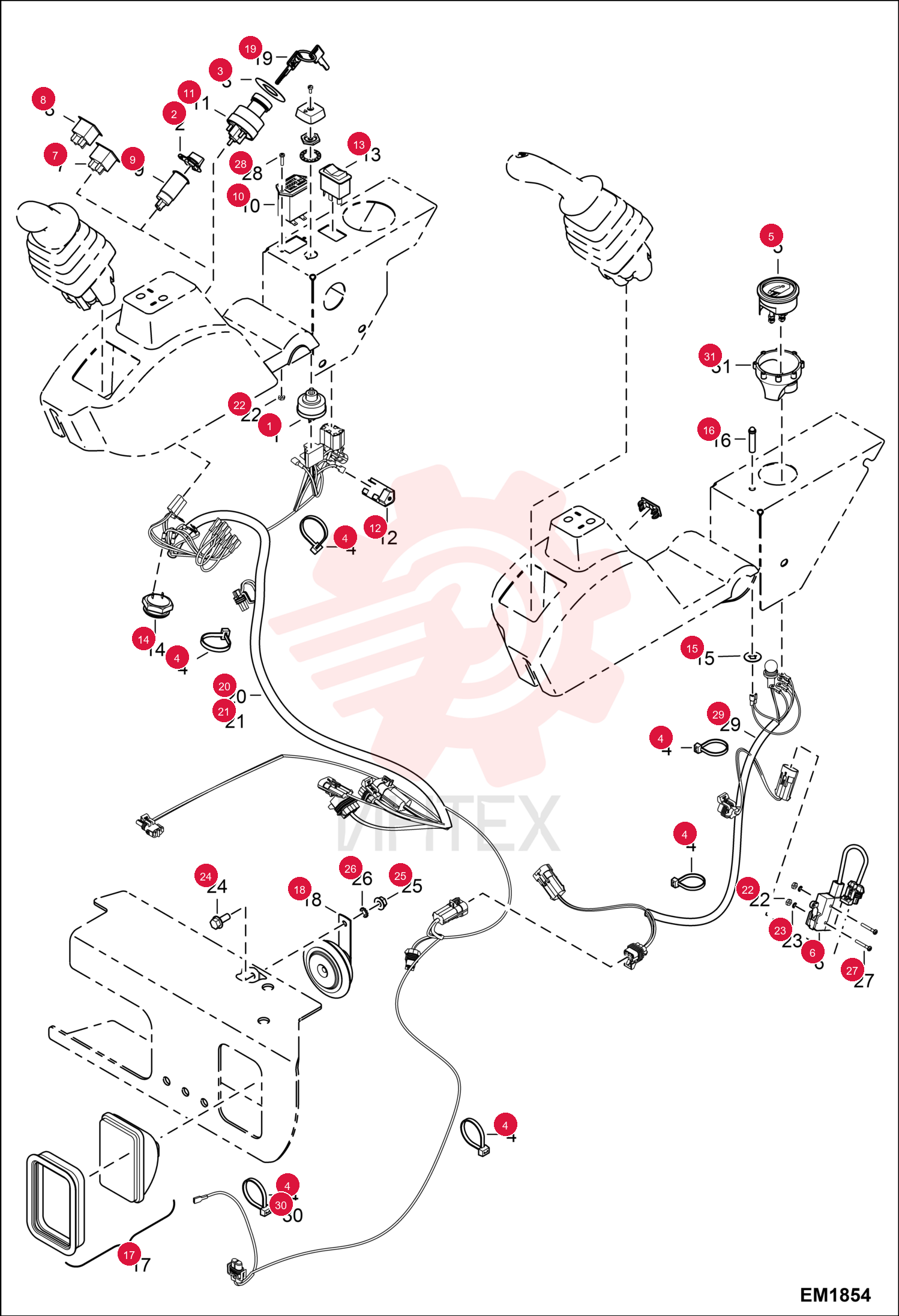

SWITCH-LT 6512808

SWITCH-LT 6512808

SWITCH-LT 6512808

1 6512808

  • 6512808 - SWITCH-LT

2 6664224

  • 6664224 - CAP

3 6596218

  • 6596218 - PLATE

4 6624289

  • 6624289 - STRAP
  • TIE

5 6624289

  • 6624289 - STRAP
  • TIE

6 6634273

  • 6634273 - GAUGE
  • FUEL

7 7017075

  • 7017075 - GAUGE
  • FUEL

8 6661150

  • 6661150 - SWITCH
  • ROLLER MICRO

9 6661598

  • 6661598 - LAMP

10 6661599

  • 6661599 - LAMP

11 6664223

  • 6664223 - OUTLET ELECTRICAL

12 6664886

  • 6664886 - METER HOUR

13 6691594

  • 6691594 - SWITCH IGNITION ASSY

14 6673122

  • 6673122 - REG.TIMER

15 6674025

  • 6674025 - SWITCH

16 6675705

  • 6675705 - ALARM

17 6675859

  • 6675859 - RETAINER

18 7227564

  • 7227564 - LIGHT
  • LED GREEN
  • Was 6675908

19 6676238

  • 6676238 - LIGHT

20 6665105

  • 6665105 - HORN
  • mounted W/bolt in vertical position - Was 6688669

21 6691276

  • 6691276 - ALARM
  • mounted W/bolt in horizontal position

22 7136179

  • 7136179 - HARNESS
  • W/Ref. 21

23 7105066

  • 7105066 - HARNESS RH CONSOLE
  • W/Ref. 21

24 6567537

  • 6567537 - DIODE

25 6567537

  • 6567537 - DIODE

26 12D6

  • 12D6 - NUT HEX MACH SCREW

27 12E6

  • 12E6 - WASHER

28 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

29 43DM8

  • 43DM8 - NUT FLANGED HEX

30 6E6

  • 6E6 - WASHER

31 10EM80

  • 10EM80 - WASHER

32 85G616

  • 85G616 - SCREW PNH SLTD MACH

33 87G610

  • 87G610 - SCREW

34 7193280

  • 7193280 - HARNESS LH CONSOLE
  • Was 7105067

35 6679027

  • 6679027 - CLAMP GAUGE
