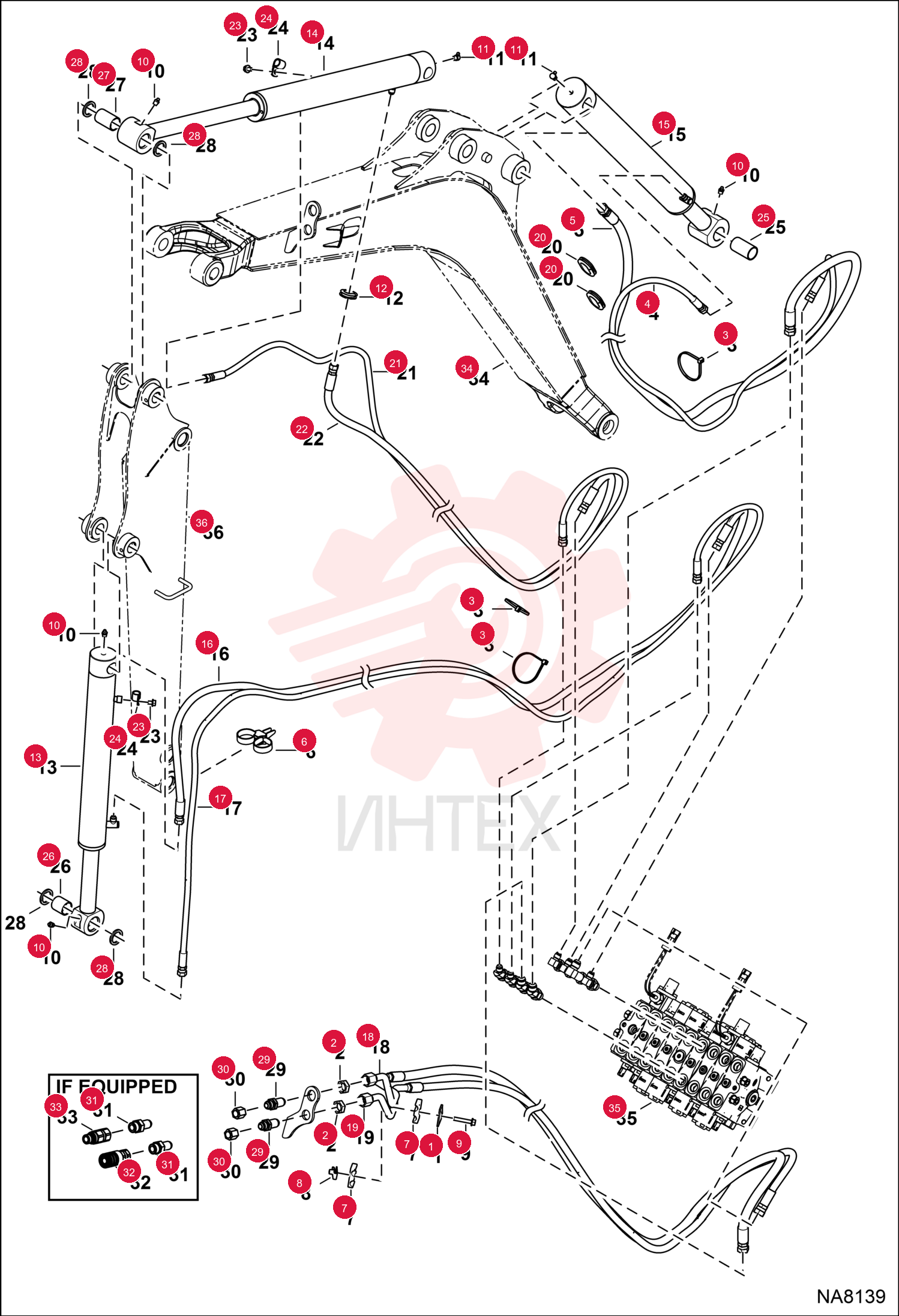

PLATE 6652521

PLATE 6652521

PLATE 6652521

1 6652521

  • 6652521 - PLATE

2 86F7

  • 86F7 - NUT 5

3 6624289

  • 6624289 - STRAP
  • TIE

4 7174956

  • 7174956 - HOSE
  • HYD

5 7204433

  • 7204433 - HOSE
  • HYD
  • Was 7174957

6 6678668

  • 6678668 - STRAP

7 6701893

  • 6701893 - CLAMP

8 6676169

  • 6676169 - NUT

9 29CM845

  • 29CM845 - SCREW HEX FLANGE

10 10H25

  • 10H25 - FTG GREASE STRAIGHT

11 12H15

  • 12H15 - FTG GREASE 90

12 7135240

  • 7135240 - GROMMET ELIPTICAL

13 7167729

  • 7167729 - CYLINDER
  • BUCKET

14 7168938

  • 7168938 - CYLINDER
  • ARM

15 7169170

  • 7169170 - CYLINDER
  • BOOM

16 7173103

  • 7173103 - HOSE
  • HYD

17 7173104

  • 7173104 - HOSE
  • HYD

18 7173106

  • 7173106 - TUBELINE

19 7173764

  • 7173764 - GROMMET

20 7174954

  • 7174954 - HOSE
  • HYD

21 7174955

  • 7174955 - HOSE
  • HYD

22 29CM812

  • 29CM812 - BOLT

23 30H38

  • 30H38 - CLIP

24 7102512

  • 7102512 - BUSHING WEAR

25 6804060

  • 6804060 - BUSHING

26 6803814

  • 6803814 - BUSHING

27 6653534

  • 6653534 - SEAL
  • OIL 5

28 45K7

  • 45K7 - CONNECTR

29 36K7

  • 36K7 - FITTING

30 6812816

  • 6812816 - ADAPTER

31 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - was 6672960

32 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

33 7246791EF

  • 7246791EF - COUPLER FF MALE 1/2 BODY 3/4 SAE THREAD

34 7246791

  • 7246791 - COUPLER FF MALE 1/2
  • - Was 7246777
