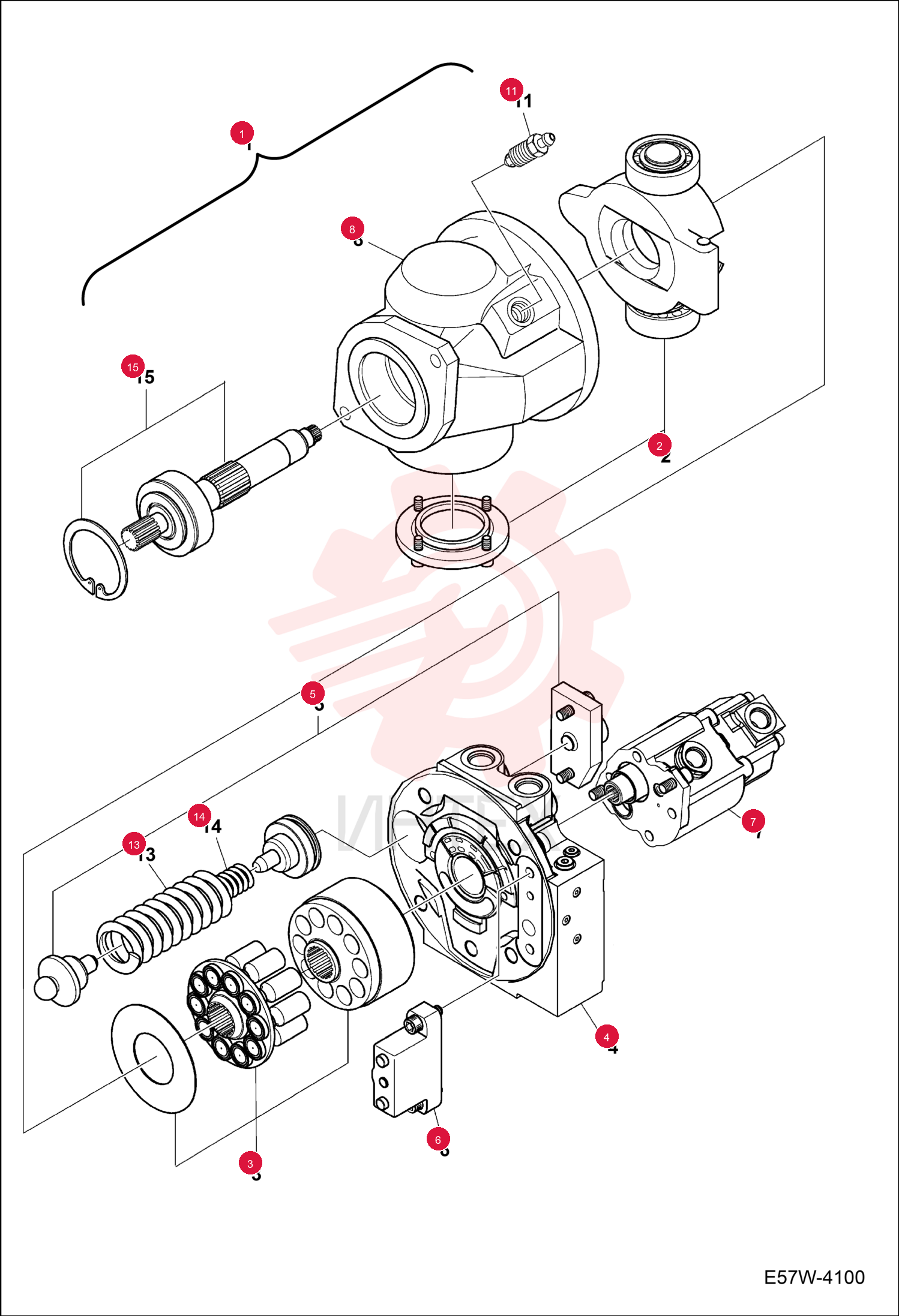

PUMP HYDROSTATIC 7344153 (1)

PUMP HYDROSTATIC 7344153 (1)

PUMP HYDROSTATIC 7344153 (1)

1 7344153

  • 7344153 - PUMP HYDROSTATIC

2 7004385

  • 7004385 - BRACKET HANGER ASSY

3 7006964

  • 7006964 - ROTATOR ASSY

4 7296202

  • 7296202 - COVER

5 7007447

  • 7007447 - SPRING ASSEMBLY

6 7296252

  • 7296252 - PISTON

7 7296267

  • 7296267 - PUMP
  • GEAR

8 7004348

  • 7004348 - HOUSING

9 7004398

  • 7004398 - VALVE AIR VENT

10 7296302

  • 7296302 - SPRING

11 7296303

  • 7296303 - SPRING

12 7296291

  • 7296291 - SHAFT
  • - NLA - Order 7344157 shaft - Was 7296291

13 7344157

  • 7344157 - SHAFT PUMP
