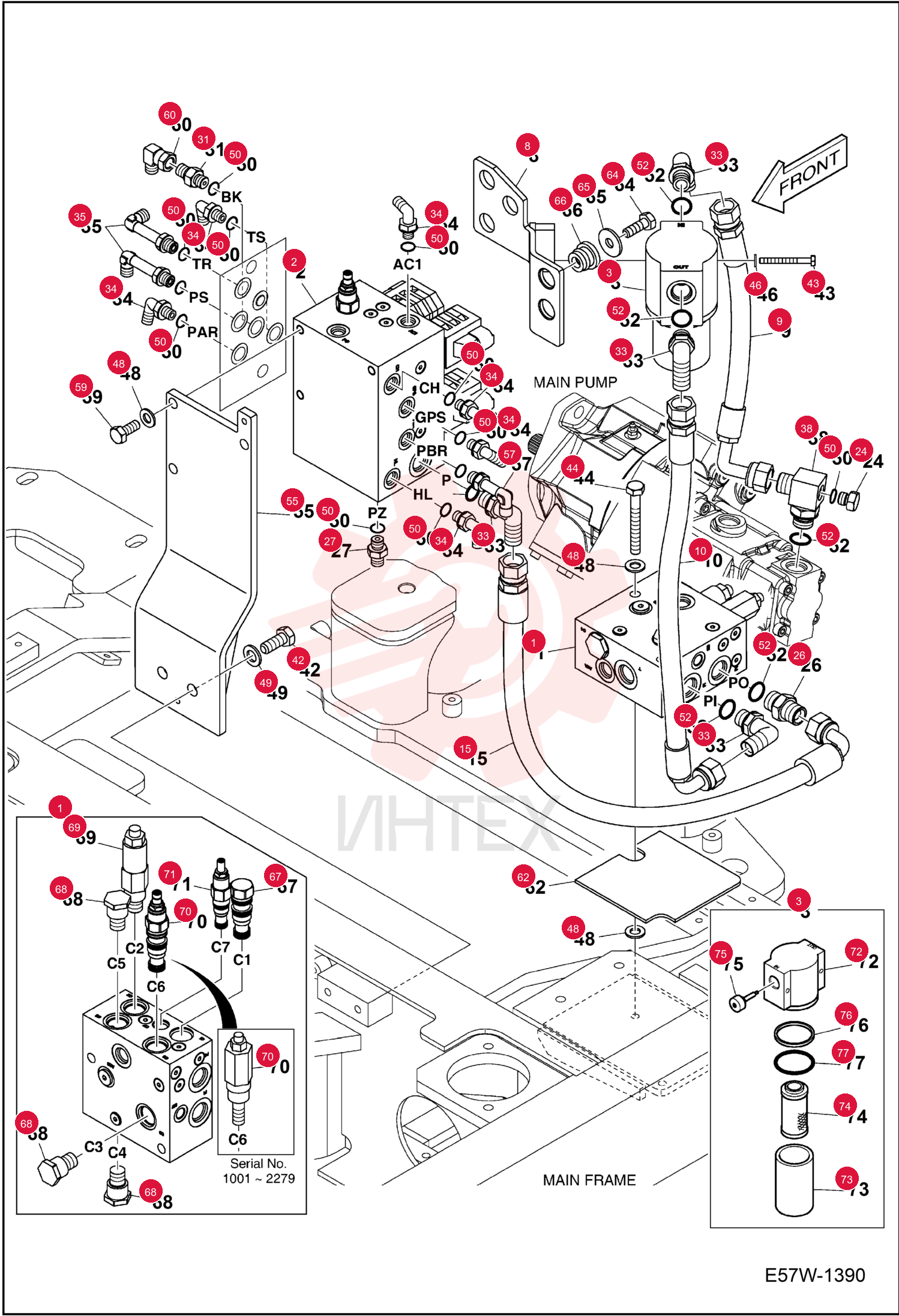

VALVE BRAKE 7341303

VALVE BRAKE 7341303

VALVE BRAKE 7341303

1 7341303

  • 7341303 - VALVE BRAKE

2 7288552

  • 7288552 - VALVE
  • SOLENOID

3 7276722

  • 7276722 - ELEMENT
  • FILTER
  • Ref. 72-77

4 7287422

  • 7287422 - BRACKET
  • FILTER

5 7287885

  • 7287885 - HOSE
  • HYD

6 7005201

  • 7005201 - HOSE

7 7287886

  • 7287886 - HOSE
  • HYD

8 7004732

  • 7004732 - PLUG

9 7004699

  • 7004699 - ADAPTER

10 7004683

  • 7004683 - ADAPTER

11 7288028

  • 7288028 - ORIFICE

12 7004710

  • 7004710 - ELBOW

13 7004713

  • 7004713 - ELBOW

14 7004720

  • 7004720 - ELBOW

15 7006567

  • 7006567 - TEE

16 7007640

  • 7007640 - BOLT

17 7287355

  • 7287355 - BOLT

18 7287352

  • 7287352 - BOLT

19 7277303

  • 7277303 - WASHER

20 7288588

  • 7288588 - WASHER

21 7276070

  • 7276070 - WASHER

22 7007906

  • 7007906 - O-RING

23 7007911

  • 7007911 - O-RING

24 7287390

  • 7287390 - BRACKET

25 7022863

  • 7022863 - ELBOW

26 7007628

  • 7007628 - BOLT

27 7030062

  • 7030062 - FITTING

28 7288156

  • 7288156 - STOP
  • RUBBER

29 7007630

  • 7007630 - BOLT

30 7004467

  • 7004467 - WASHER PLAIN

31 7021821

  • 7021821 - BUSHING
  • SPACER

32 7288564

  • 7288564 - VALVE
  • LOGIC

33 7006850

  • 7006850 - VALVE CHECK

34 7341304

  • 7341304 - VALVE RELIEF

35 7288570

  • 7288570 - VALVE
  • RELIEF

36 7288580

  • 7288580 - VALVE

37 7003832

  • 7003832 - VALVE UNLOADER

38 7288571

  • 7288571 - VALVE
  • RELIEF

39 7276723

  • 7276723 - HOUSING

40 7275347

  • 7275347 - ELEMENT
  • FILTER

41 7276724

  • 7276724 - VALVE
  • BYPASS

42 7276725

  • 7276725 - RING
  • BACK UP

43 7276726

  • 7276726 - O-RING
