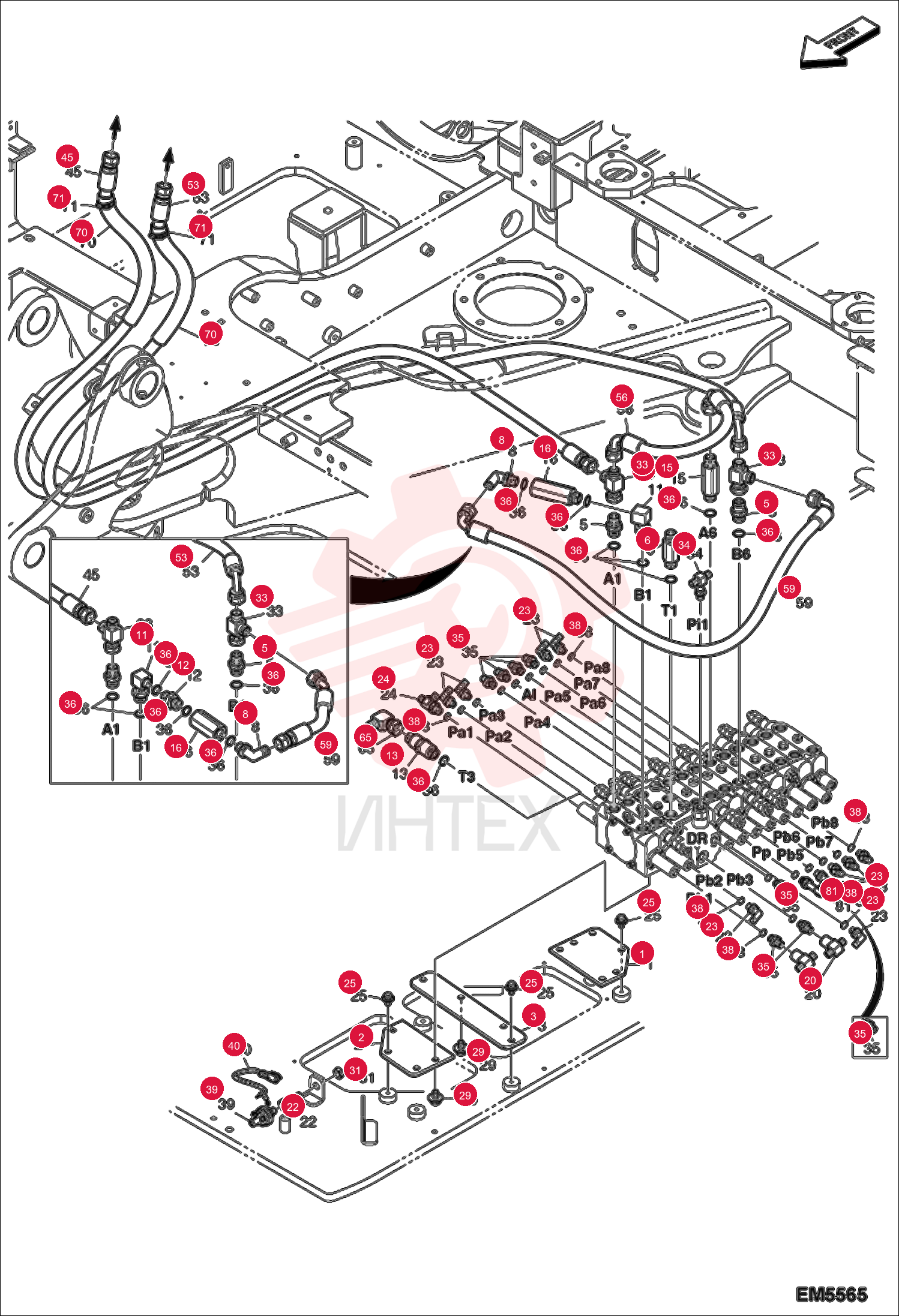

PLATE 7006399

PLATE 7006399

PLATE 7006399

1 7006399

  • 7006399 - PLATE

2 7006394

  • 7006394 - PLATE

3 7006395

  • 7006395 - PLATE

4 7004699

  • 7004699 - ADAPTER

5 7004703

  • 7004703 - ADAPTER

6 7004710

  • 7004710 - ELBOW

7 7004753

  • 7004753 - ELBOW

8 7004731

  • 7004731 - ADAPTER

9 7005541

  • 7005541 - ADAPTER

10 7005548

  • 7005548 - ADAPTER

11 7015589

  • 7015589 - VALVE
  • CHECK

12 7004768

  • 7004768 - TEE

13 7006550

  • 7006550 - REDUCER

14 7004713

  • 7004713 - ELBOW

15 7004738

  • 7004738 - TEE

16 7005129

  • 7005129 - BOLT SET

17 7005119

  • 7005119 - BOLT SET

18 7003878

  • 7003878 - NUT

19 7003961

  • 7003961 - TEE UNION

20 7005562

  • 7005562 - TEE

21 7004683

  • 7004683 - ADAPTER

22 7004683

  • 7004683 - ADAPTER

23 7284557

  • 7284557 - O-RING
  • Was 7007911

24 7284557

  • 7284557 - O-RING
  • Was 7007911

25 7283267

  • 7283267 - O-RING
  • Was 7007906

26 7030247

  • 7030247 - HARNESS JOINT

27 7274074

  • 7274074 - SWITCH
  • PRESS
  • Was 7030246

28 7005012

  • 7005012 - HARNESS JOINT

29 7012231

  • 7012231 - HOSE

30 7019180

  • 7019180 - HOSE HYDRAULIC ASSY

31 7012235

  • 7012235 - HOSE

32 7019181

  • 7019181 - HOSE HYDRAULIC ASSY

33 7012236

  • 7012236 - HOSE
  • Was 7005210

34 7005172

  • 7005172 - HOSE

35 7019182

  • 7019182 - HOSE HYDRAULIC ASSY

36 7003958

  • 7003958 - ELBOW

37 7012259

  • 7012259 - GUARD

38 7007975

  • 7007975 - CLAMP

39 7022863

  • 7022863 - ELBOW
