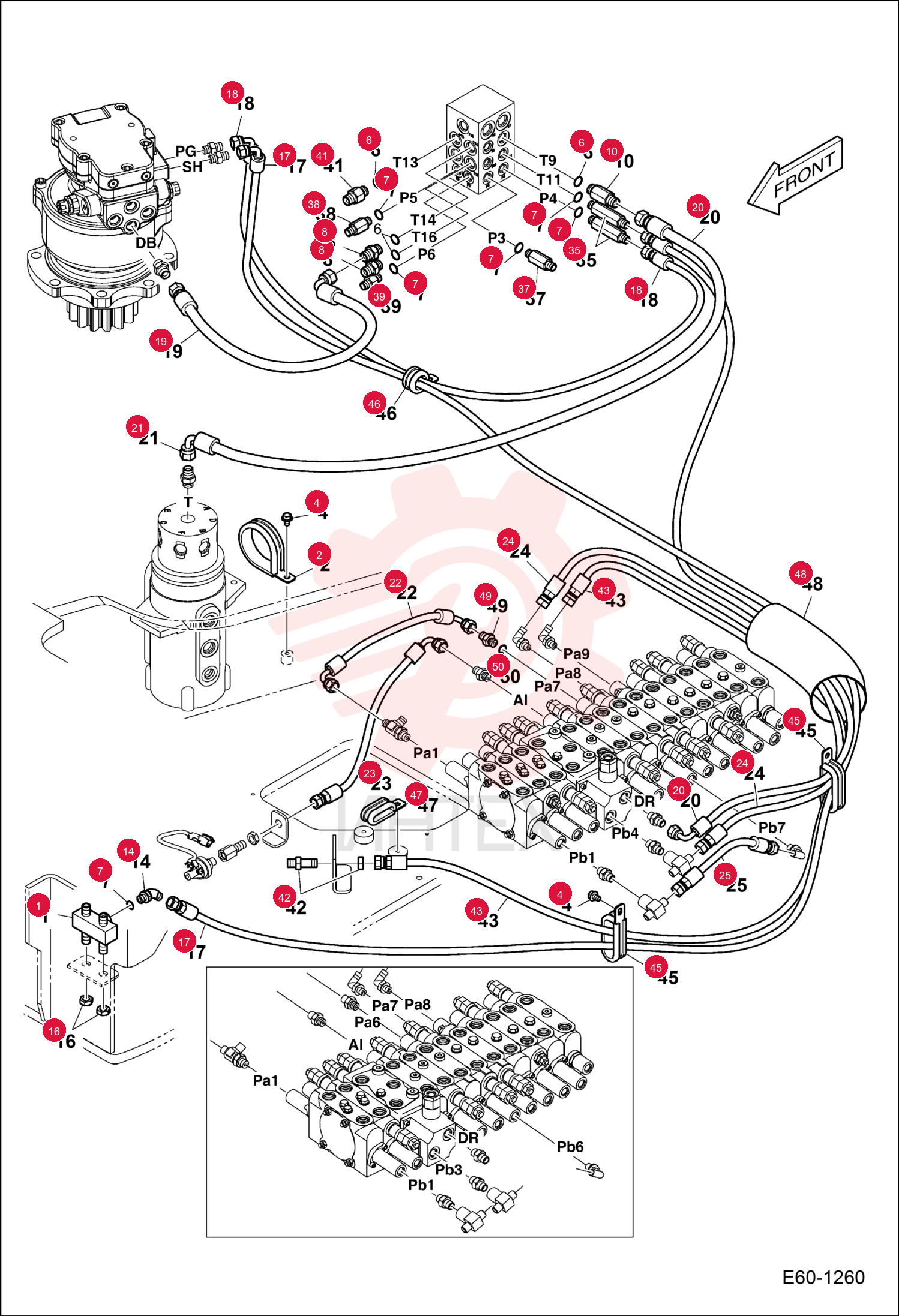

VALVE SHUTTLE 7004978

VALVE SHUTTLE 7004978

VALVE SHUTTLE 7004978

1 7004978

  • 7004978 - VALVE SHUTTLE

2 7003900

  • 7003900 - CLIP

3 7005629

  • 7005629 - BOLT

4 7005629

  • 7005629 - BOLT

5 7284551

  • 7284551 - O-RING
  • Was 7007909

6 7283267

  • 7283267 - O-RING
  • Was 7007906

7 7004700

  • 7004700 - ADAPTER

8 7004688

  • 7004688 - ADAPTER

9 7004755

  • 7004755 - ELBOW

10 7003878

  • 7003878 - NUT

11 7005335

  • 7005335 - HOSE PF1/4-1910L

12 7005422

  • 7005422 - HOSE

13 7005364

  • 7005364 - HOSE

14 7005325

  • 7005325 - HOSE PF1/4-1150L

15 7005451

  • 7005451 - HOSE PF3/8-745L

16 7005257

  • 7005257 - HOSE PF1/4-260L

17 7005247

  • 7005247 - HOSE

18 7005305

  • 7005305 - HOSE

19 7021852

  • 7021852 - HOSE HYDRAULIC ASSY

20 7005483

  • 7005483 - HOSE

21 7019193

  • 7019193 - HAMMER

22 7005499

  • 7005499 - HOSE

23 7005497

  • 7005497 - HOSE

24 7004704

  • 7004704 - ADAPTER

25 7004692

  • 7004692 - ADAPTER

26 7004702

  • 7004702 - ADAPTER

27 7004678

  • 7004678 - ADAPTER

28 7005544

  • 7005544 - ADAPTER

29 7003949

  • 7003949 - ADAPTER

30 7005507

  • 7005507 - HOSE PF1/4-1200L

31 7003907

  • 7003907 - CLIP

32 7003896

  • 7003896 - CLIP

33 7003904

  • 7003904 - CLIP

34 7006523

  • 7006523 - GUARD PROTECTOR

35 7004683

  • 7004683 - ADAPTER

36 7283267

  • 7283267 - O-RING
  • Was 7007906
