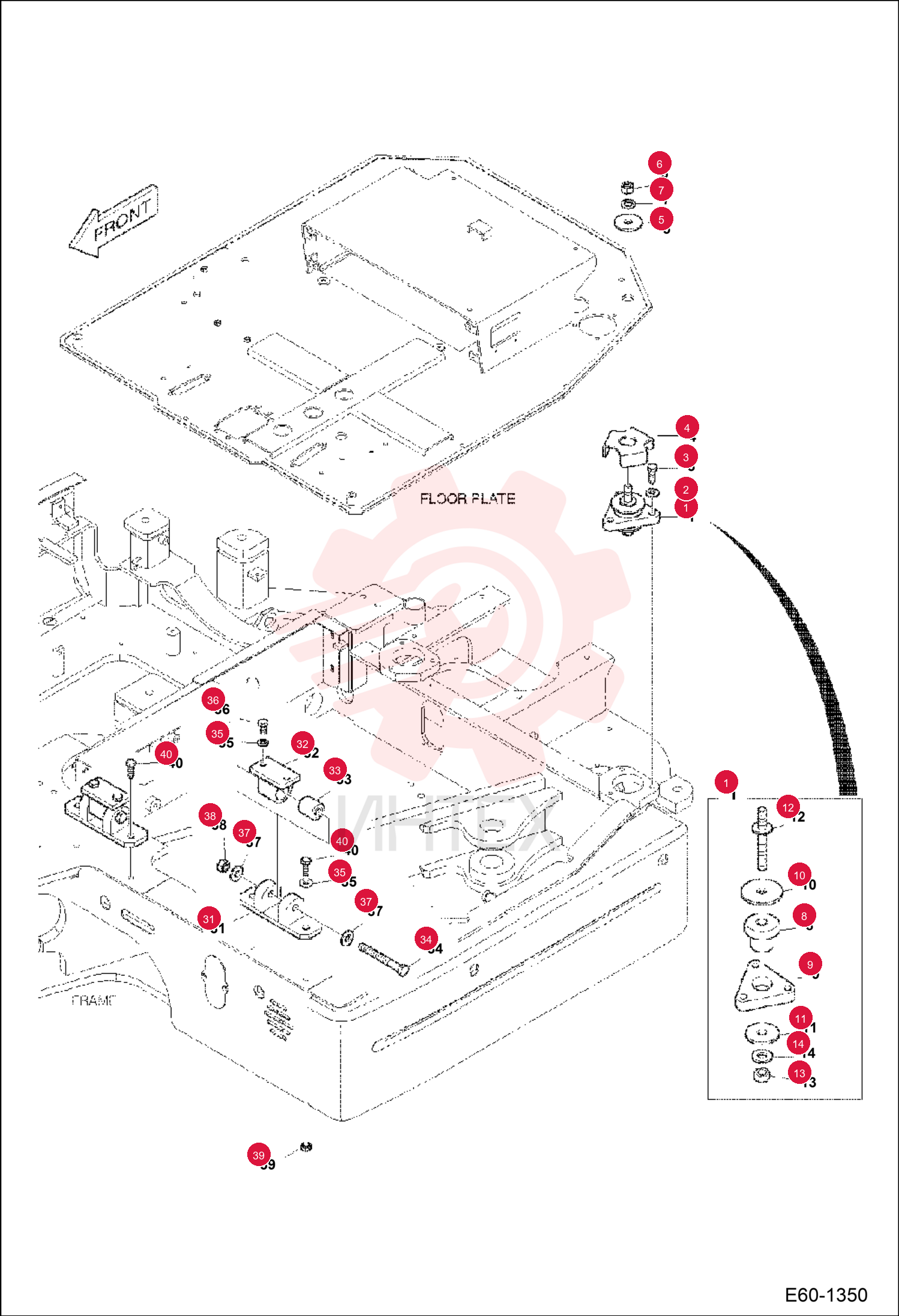

WASHER 7004514

WASHER 7004514

WASHER 7004514

1 7004514

  • 7004514 - WASHER

2 7004542

  • 7004542 - BOLT

3 7006281

  • 7006281 - PLATE

4 7006168

  • 7006168 - PLATE

5 7004566

  • 7004566 - NUT

6 7007823

  • 7007823 - WASHER PLAIN

7 7006075

  • 7006075 - MOUNT CAB RUBBER
  • rubber

8 7006167

  • 7006167 - PLATE

9 7008208

  • 7008208 - PLATE

10 7006168

  • 7006168 - PLATE

11 7006169

  • 7006169 - BOLT STUD

12 7029431

  • 7029431 - STUD

13 7004566

  • 7004566 - NUT

14 7004468

  • 7004468 - WASHER

15 7006207

  • 7006207 - BRACKET

16 7006208

  • 7006208 - BRACKET

17 7006648

  • 7006648 - MOUNT CAB RUBBER
  • rubber

18 7007711

  • 7007711 - BOLT M16X2.0X130

19 7004518

  • 7004518 - WASHER

20 7004537

  • 7004537 - BOLT

21 7004468

  • 7004468 - WASHER

22 7004566

  • 7004566 - NUT

23 7004567

  • 7004567 - NUT LOCK

24 7004542

  • 7004542 - BOLT
