Bobcat
/
E60
/

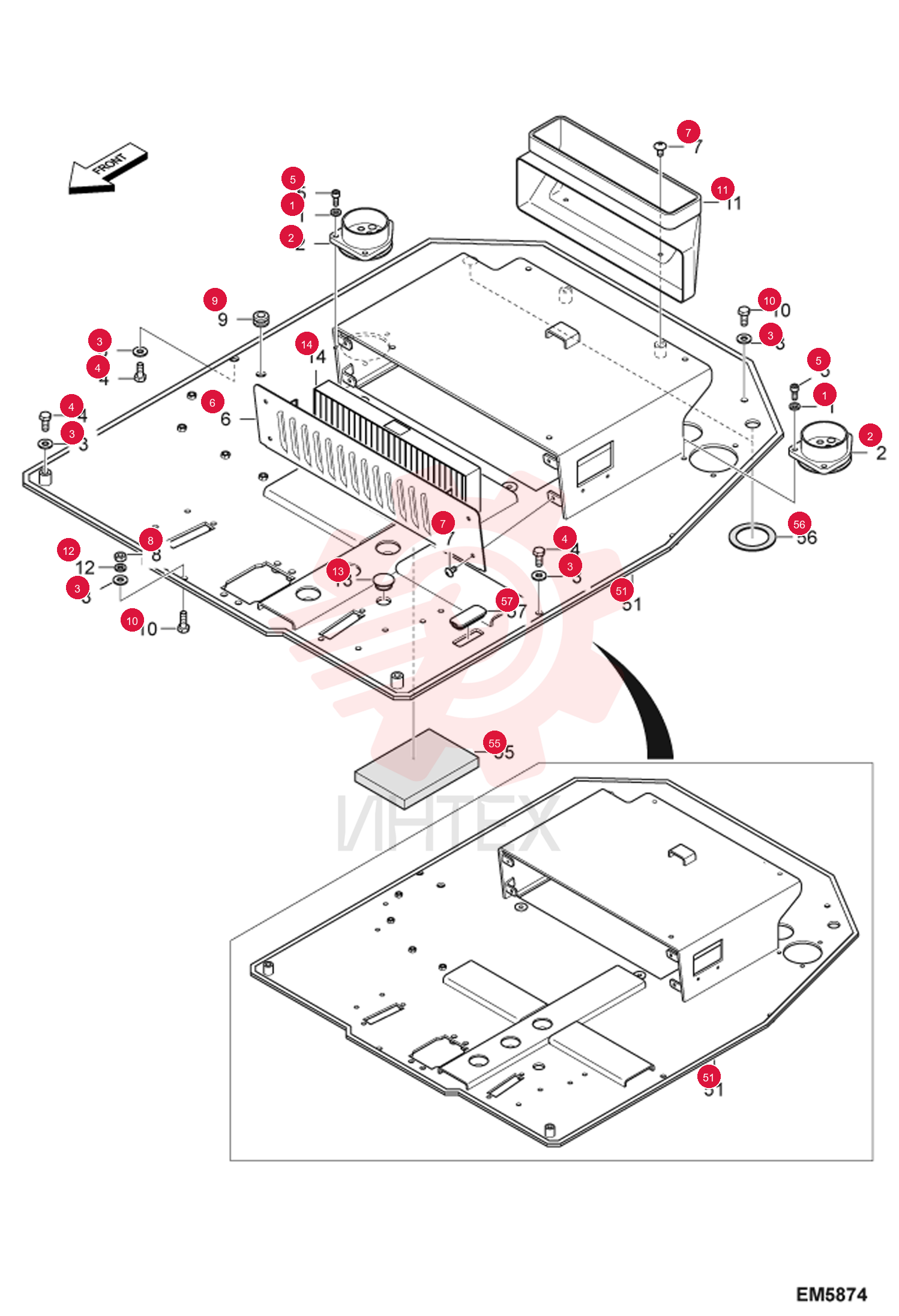

WASHER 7004515

WASHER 7004515

WASHER 7004515

1 7004515

  • 7004515 - WASHER

2 7005841

  • 7005841 - BUSHING
  • RUBBER

3 7004509

  • 7004509 - WASHER

4 7004534

  • 7004534 - BOLT

5 7007735

  • 7007735 - BOLT

6 7006337

  • 7006337 - COVER

7 7004547

  • 7004547 - BOLT

8 7007798

  • 7007798 - NUT M10X1.5

9 7004604

  • 7004604 - BUSHING
  • RUBBER

10 7004530

  • 7004530 - BOLT M10X1.5X30

11 7005880

  • 7005880 - DUCT
  • REAR

12 7004522

  • 7004522 - WASHER

13 7004626

  • 7004626 - CAP
  • RUBBER

14 7006085

  • 7006085 - FILTER A/C

15 7012497

  • 7012497 - FLOOR

16 7006734

  • 7006734 - FOAM

17 7006796

  • 7006796 - FOAM

18 7013289

  • 7013289 - BUSHING
  • RUBBER
  • use with floorplate #7012497 only
