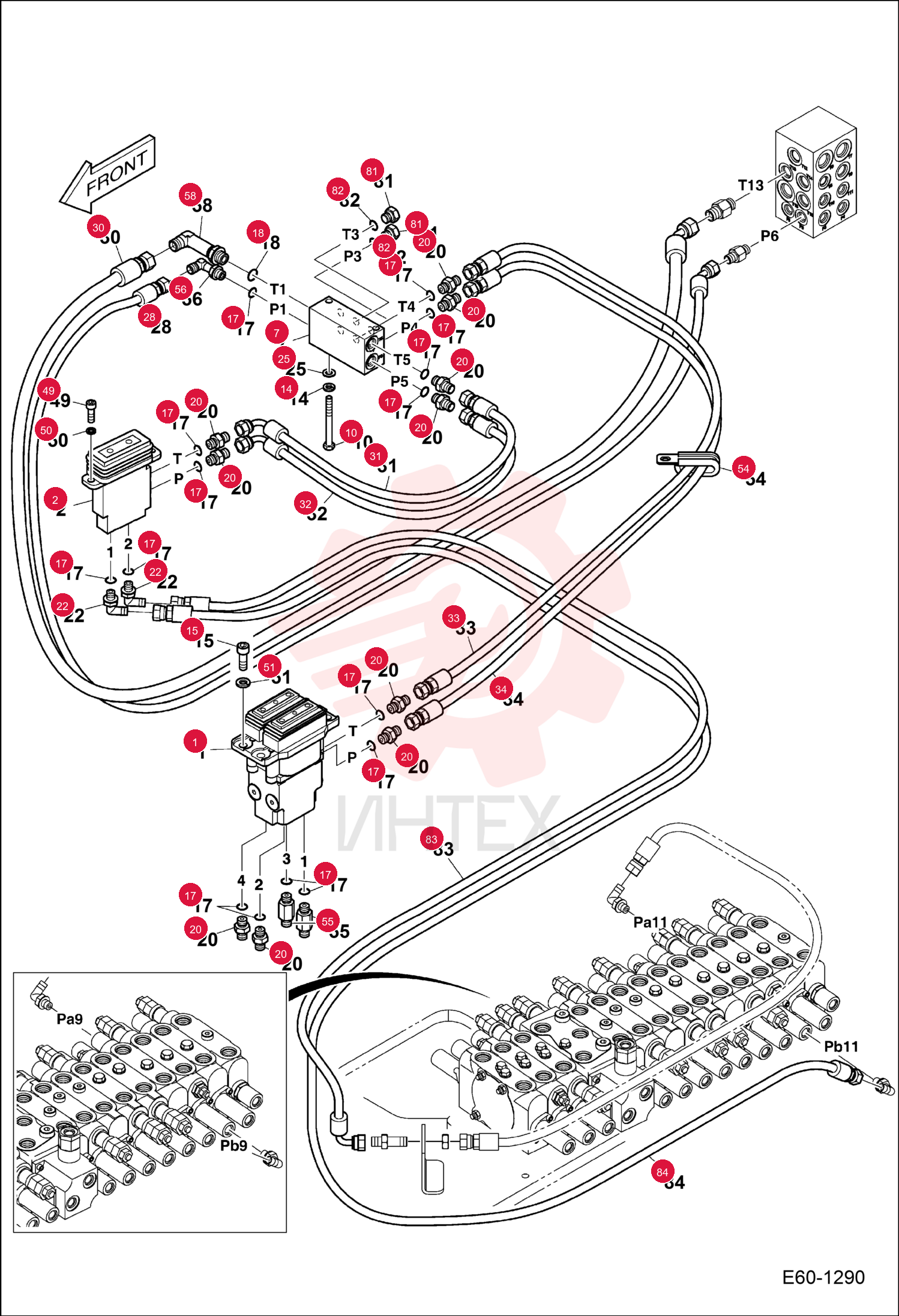

VALVE, PEDAL 7008191 (1)

VALVE, PEDAL 7008191 (1)

VALVE, PEDAL 7008191 (1)

1 7008191

  • 7008191 - VALVE
  • PEDAL

2 7005669

  • 7005669 - VALVE PEDAL

3 7006428

  • 7006428 - BLOCK

4 7007667

  • 7007667 - BOLT

5 7276756

  • 7276756 - WASHER
  • Was 7007834

6 7007748

  • 7007748 - BOLT SOCKET M10X1.5X30

7 7283267

  • 7283267 - O-RING
  • Was 7007906

8 7284551

  • 7284551 - O-RING
  • Was 7007909

9 7004683

  • 7004683 - ADAPTER

10 7004713

  • 7004713 - ELBOW

11 7007816

  • 7007816 - WASHER

12 7005274

  • 7005274 - HOSE PF1/4-1180L

13 7008171

  • 7008171 - HOSE

14 7005338

  • 7005338 - HOSE

15 7005338

  • 7005338 - HOSE

16 7005496

  • 7005496 - HOSE

17 7005496

  • 7005496 - HOSE

18 7007737

  • 7007737 - BOLT

19 7007842

  • 7007842 - WASHER SPRING

20 7007835

  • 7007835 - WASHER SPRING

21 7003904

  • 7003904 - CLIP

22 7004702

  • 7004702 - ADAPTER

23 7004721

  • 7004721 - ELBOW

24 7004722

  • 7004722 - ELBOW

25 7004732

  • 7004732 - PLUG

26 7283267

  • 7283267 - O-RING
  • Was 7007906

27 7005313

  • 7005313 - HOSE PF1/4-1300L

28 7005485

  • 7005485 - HOSE
