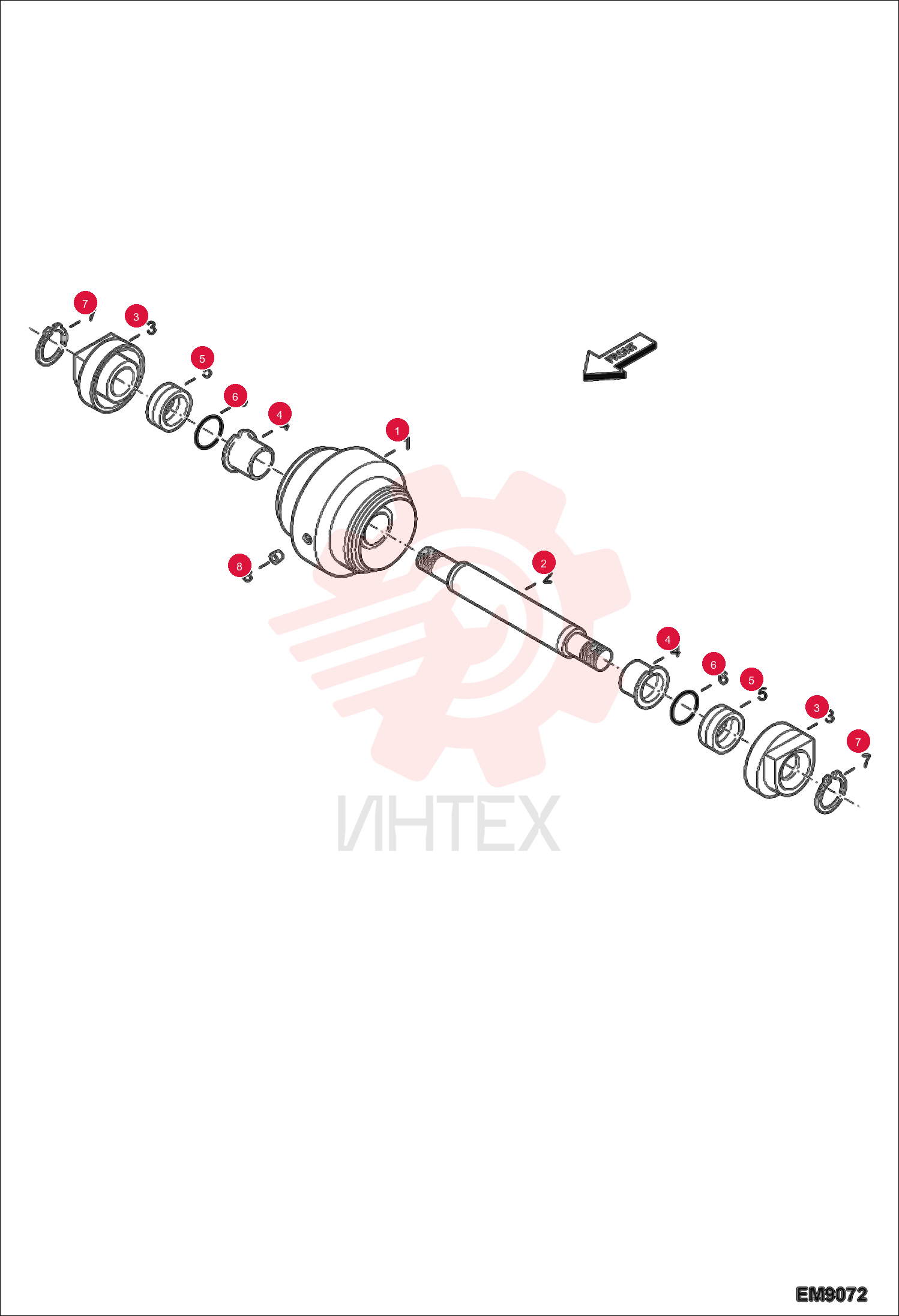

ROLLER LOWER 7005651

ROLLER LOWER 7005651

ROLLER LOWER 7005651

1 7005651

  • 7005651 - ROLLER LOWER
  • W/Ref. 2-8

2 7004466

  • 7004466 - SHAFT

3 7004845

  • 7004845 - COLLAR

4 7004465

  • 7004465 - BUSHING

5 7004666

  • 7004666 - SEAL FLOATING

6 7007922

  • 7007922 - O-RING

7 7007875

  • 7007875 - RING RETAINING

8 7007864

  • 7007864 - PLUG PT1/8
  • PT1/8
