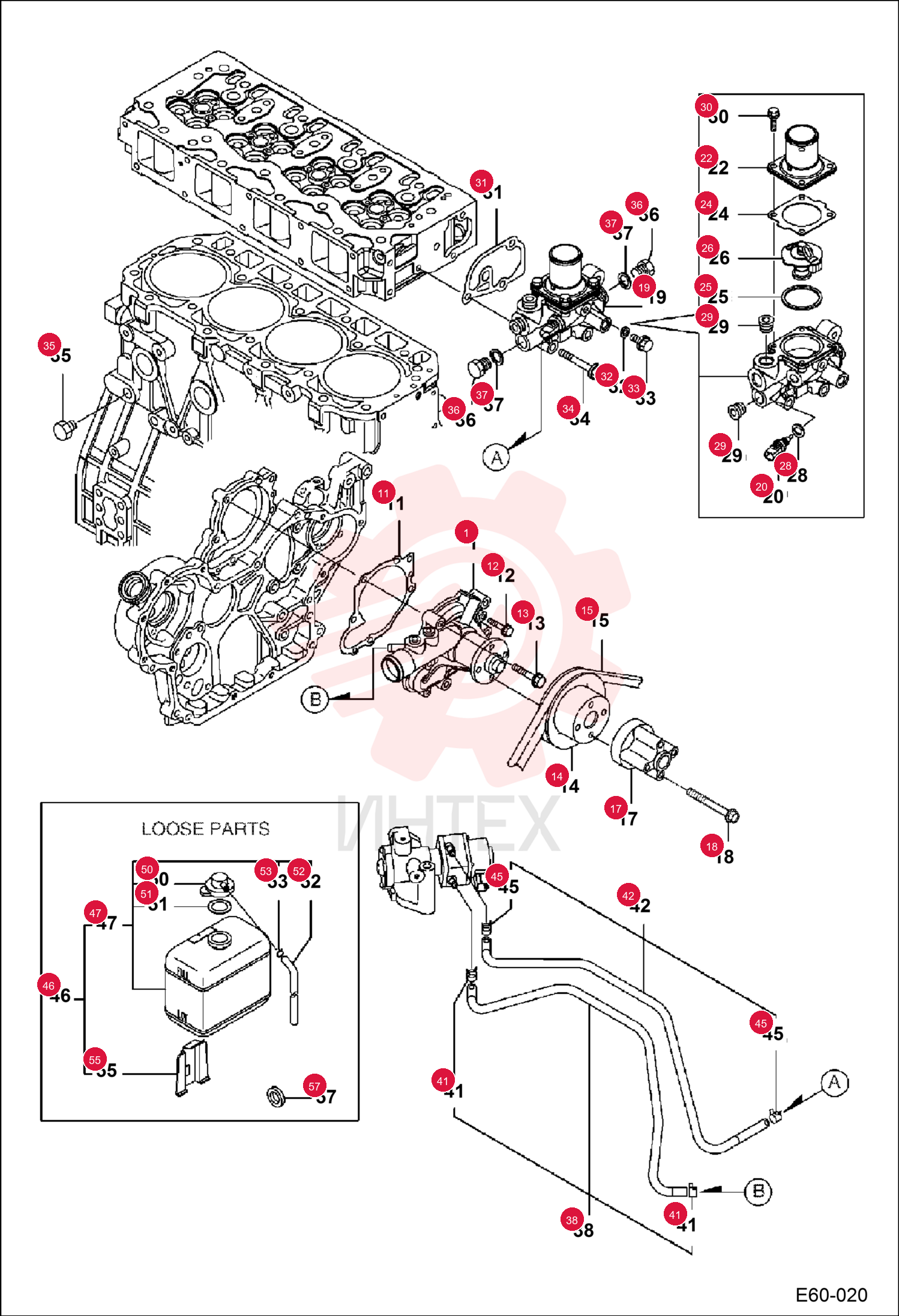

PUMP WATER ASSEMBLY 7007120

PUMP WATER ASSEMBLY 7007120

PUMP WATER ASSEMBLY 7007120

1 7007120

  • 7007120 - PUMP WATER ASSEMBLY

2 7004217

  • 7004217 - GASKET

3 7004078

  • 7004078 - BOLT M6X30

4 7004096

  • 7004096 - BOLT PLATED M8X55

5 7007047

  • 7007047 - PULLEY WATER PUMP

6 7004452

  • 7004452 - BELT FAN
  • 1160 mm (45.67") long - Was 7004451

7 7004013

  • 7004013 - SPACER FAN

8 7004094

  • 7004094 - BOLT M8X80

9 7007245

  • 7007245 - THERMOSTAT ASSY
  • W/Ref. 20-30

10 7007121

  • 7007121 - SENDER
  • TEMP ENG

11 7007050

  • 7007050 - COVER THERMOSTAT

12 7010311

  • 7010311 - GASKET
  • THERMOSTAT
  • Was 7004218

13 7005114

  • 7005114 - GASKET THERMOSTAT

14 7005078

  • 7005078 - THERMOSTAT

15 7004294

  • 7004294 - PLUG PT8/3 STEEL
  • PT8/3 steel

16 7012805

  • 7012805 - BOLT
  • Was 7004097

17 7004219

  • 7004219 - GASKET HOUSING

18 7004216

  • 7004216 - GASKET ROUND

19 7004093

  • 7004093 - BOLT M8X12

20 7013268

  • 7013268 - BOLT PLATED M8X60
  • Was 7004098

21 7004298

  • 7004298 - PLUG DRAIN

22 7005077

  • 7005077 - PLUG M16

23 7004215

  • 7004215 - GASKET

24 7007122

  • 7007122 - TUBELINE ASSY
  • W/Ref. 41

25 7007180

  • 7007180 - CLIP

26 7007123

  • 7007123 - TUBELINE ASSY
  • W/Ref. 45

27 7007180

  • 7007180 - CLIP

28 7007377

  • 7007377 - TANK RESERVOIR SUB ASSY
  • W/Ref. 47-57

29 7007331

  • 7007331 - TANK RESERVE ASSEMBLY

30 7007378

  • 7007378 - CAP

31 7007379

  • 7007379 - GASKET

32 7007380

  • 7007380 - TUBELINE

33 7007381

  • 7007381 - CLAMP

34 7007332

  • 7007332 - BRACKET

35 7003942

  • 7003942 - GASKET
