Bobcat
/
E62
/

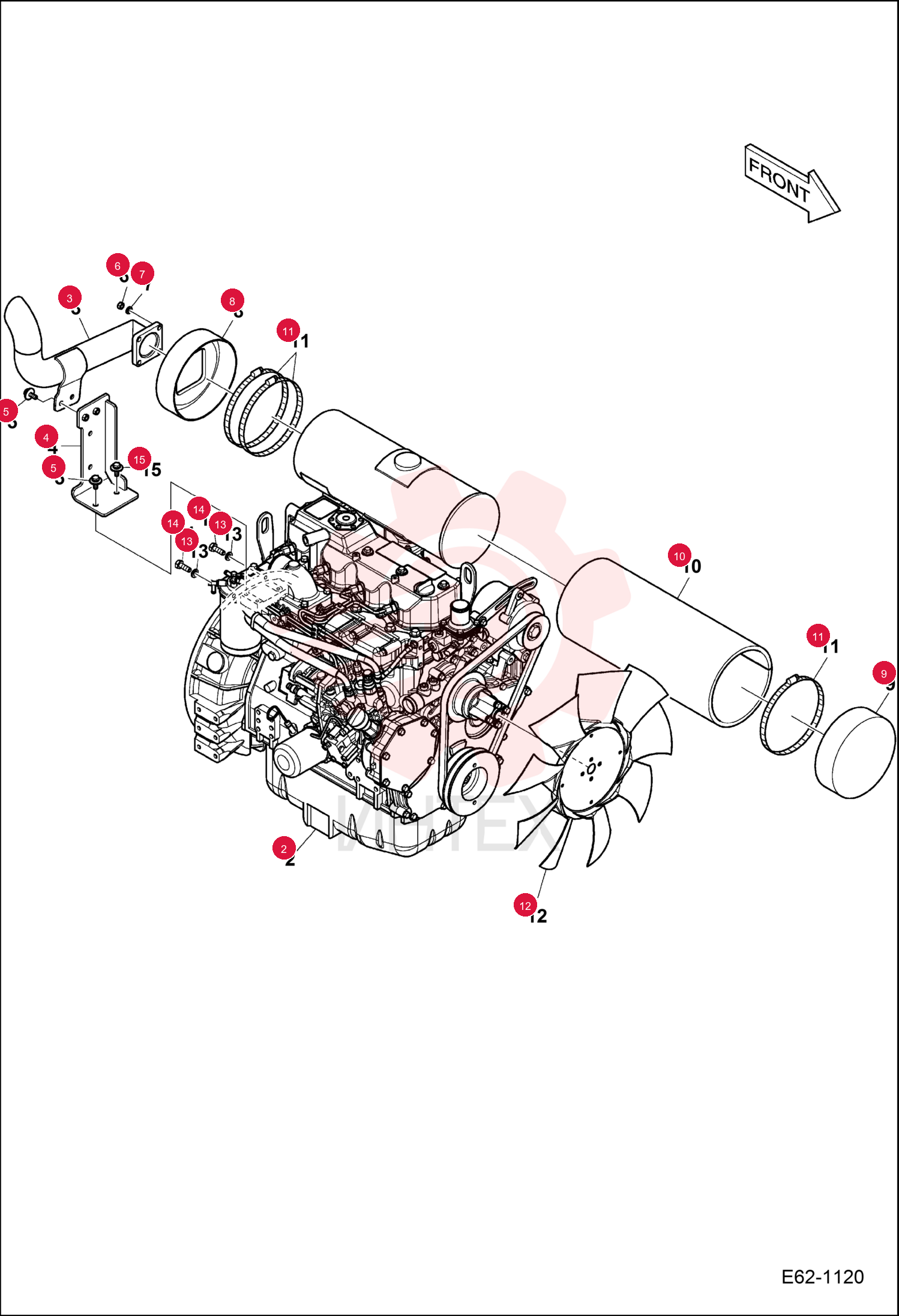

ENGINE 7364201

ENGINE 7364201

ENGINE 7364201

1 7364201

  • 7364201 - ENGINE

2 7030139

  • 7030139 - PIPE
  • EXHAUST

3 7030140

  • 7030140 - BRACKET

4 7005128

  • 7005128 - BOLT SET

5 7007796

  • 7007796 - NUT

6 7276756

  • 7276756 - WASHER
  • Was 7007834

7 7008262

  • 7008262 - MAT
  • GLASS

8 7008263

  • 7008263 - MAT
  • GLASS

9 7008265

  • 7008265 - MAT
  • GLASS

10 7012740

  • 7012740 - CLAMP HOSE

11 7282925

  • 7282925 - CLAMP

12 7007983

  • 7007983 - CLAMP

13 7029013

  • 7029013 - FAN
  • COOLING

14 7007835

  • 7007835 - WASHER SPRING

15 7007628

  • 7007628 - BOLT

16 7005132

  • 7005132 - BOLT SET
