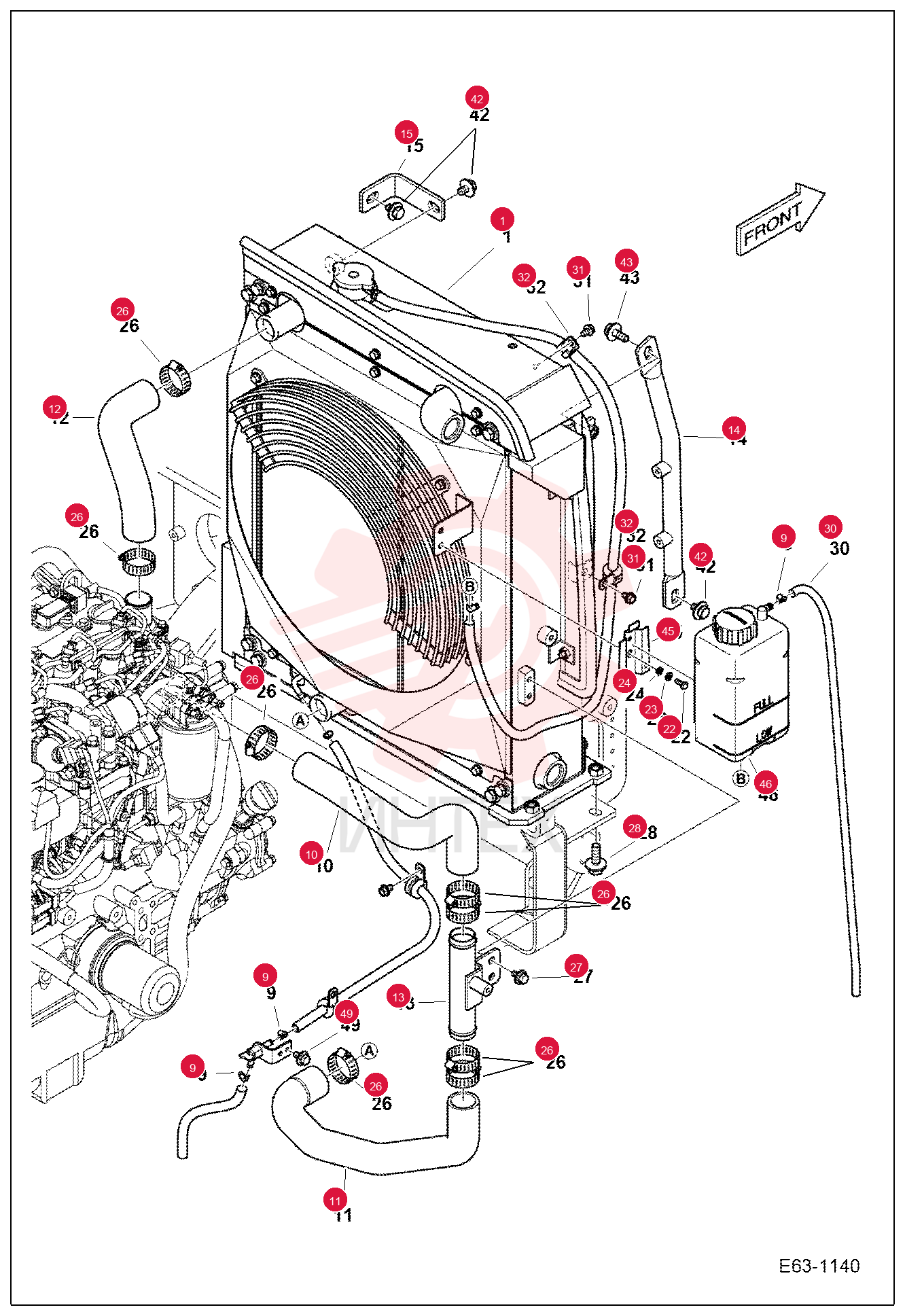

RADIATOR ASSEMBLY 7345595

RADIATOR ASSEMBLY 7345595

RADIATOR ASSEMBLY 7345595

1 7345595

  • 7345595 - RADIATOR ASSEMBLY

2 7282935

  • 7282935 - CLIP HOSE

3 7277704

  • 7277704 - CLAMP

4 7007973

  • 7007973 - CLAMP

5 7007973

  • 7007973 - CLAMP

6 7345635

  • 7345635 - HOSE WATER

7 7345636

  • 7345636 - HOSE WATER

8 7345637

  • 7345637 - HOSE WATER

9 7345638

  • 7345638 - TUBE RADIATOR

10 7030000

  • 7030000 - MOUNT

11 7029930

  • 7029930 - BRACKET

12 7007605

  • 7007605 - BOLT

13 7007828

  • 7007828 - WASHER SPRING

14 7007814

  • 7007814 - WASHER

15 7007984

  • 7007984 - CLAMP HOSE

16 7005129

  • 7005129 - BOLT SET

17 7005134

  • 7005134 - BOLT SET

18 7004784

  • 7004784 - HOSE

19 7285141

  • 7285141 - HOSE

20 7005629

  • 7005629 - BOLT

21 7003894

  • 7003894 - CLIP

22 7005130

  • 7005130 - BOLT SET

23 7005122

  • 7005122 - BOLT SET
  • Was 7005120

24 7004823

  • 7004823 - BRACKET

25 7005637

  • 7005637 - TANK RESERVE

26 7277856

  • 7277856 - CAP

27 7005139

  • 7005139 - BOLT M6X1.0X20
