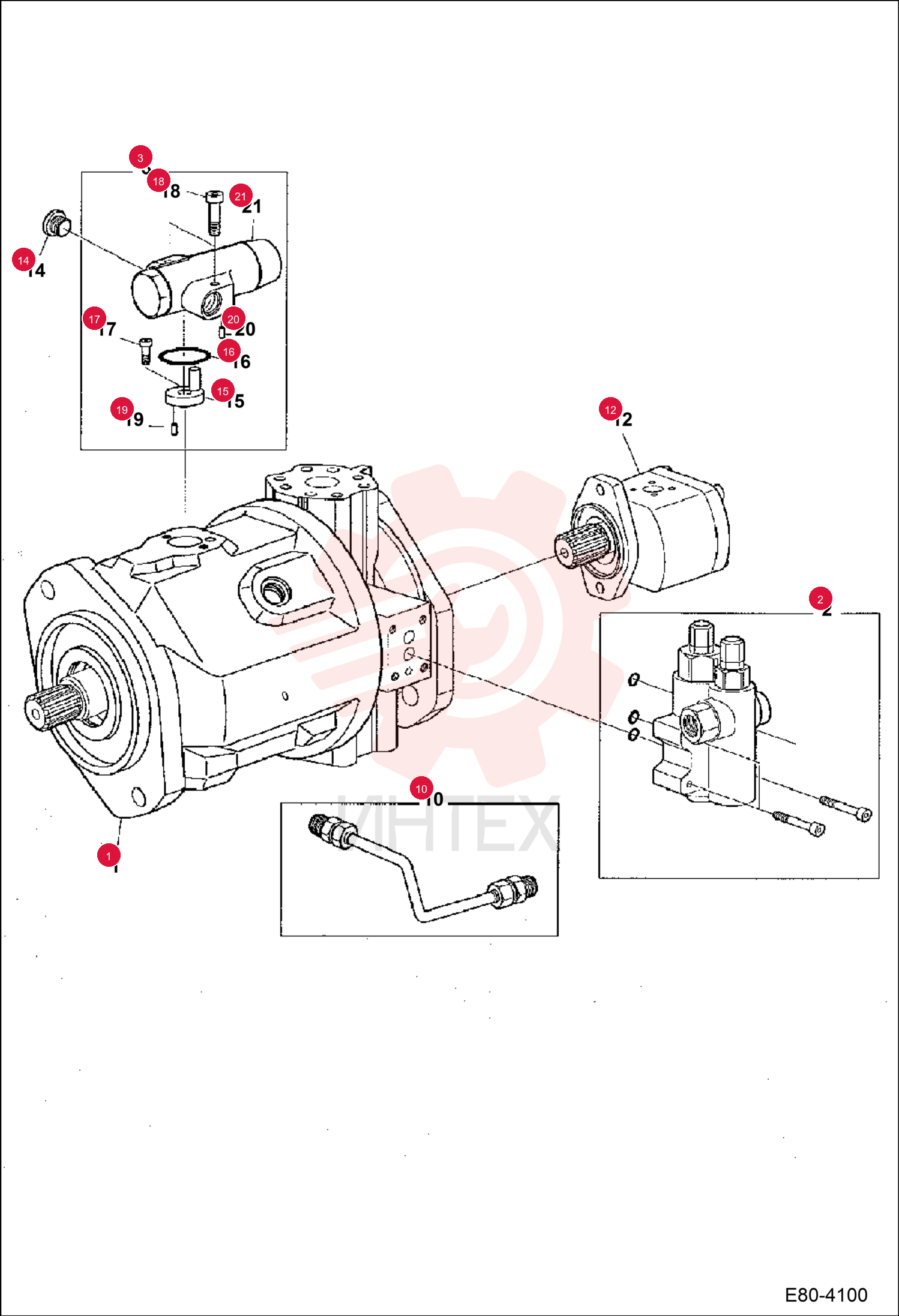

PUMP ASSEMBLY 7004963

PUMP ASSEMBLY 7004963

PUMP ASSEMBLY 7004963

1 7004963

  • 7004963 - PUMP ASSEMBLY
  • W/Ref. 2-14

2 7007727

  • 7007727 - SCREW SOCKET

3 7004654

  • 7004654 - O-RING

4 7007374

  • 7007374 - VALVE PILOT
  • Was 7023771

5 7007373

  • 7007373 - VALVE PILOT
  • W/Ref. 15-21

6 7007364

  • 7007364 - TUBELINE ASSY

7 7007361

  • 7007361 - FITTING GREASE

8 7007362

  • 7007362 - RING SPACER

9 7007375

  • 7007375 - PUMP
  • GEAR

10 7006848

  • 7006848 - PLUG

11 7007349

  • 7007349 - CARRIER LR

12 7024946

  • 7024946 - O-RING
  • Was 7004649

13 7007721

  • 7007721 - SCREW SOCKET

14 7007725

  • 7007725 - SCREW SOCKET

15 7007855

  • 7007855 - PIN SELF LOCKING

16 7007857

  • 7007857 - PIN SELF LOCKING

17 7007346

  • 7007346 - CAP INSULATION
