Bobcat
/
E80
/

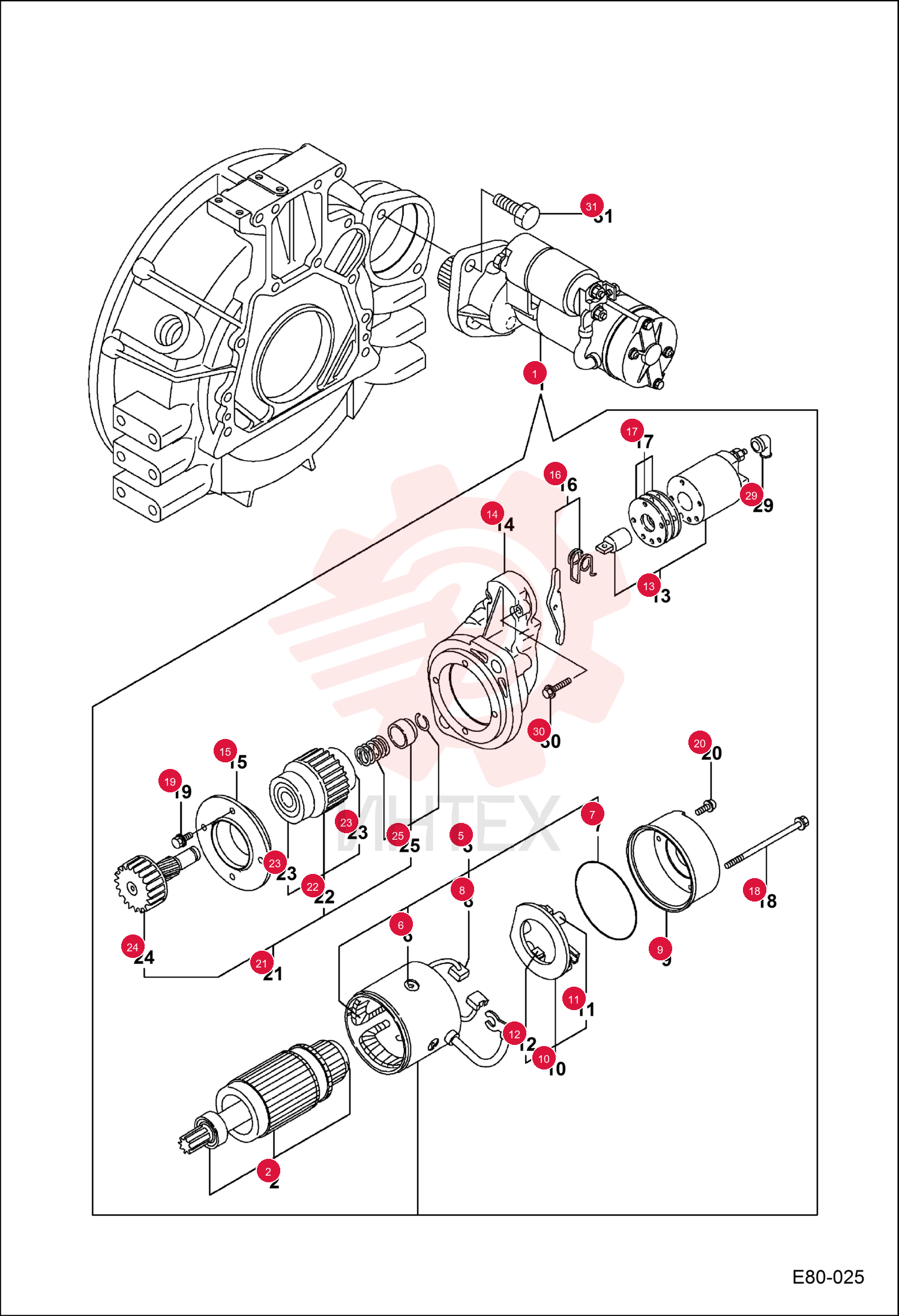

STARTER 7007145

STARTER 7007145

STARTER 7007145

1 7007145

  • 7007145 - STARTER
  • W/Ref. 2-30

2 7007146

  • 7007146 - ARMATURE ASSY

3 7007147

  • 7007147 - COIL ASSY FIELD
  • W/Ref. 6-8

4 7007148

  • 7007148 - BOLT

5 7007149

  • 7007149 - O-RING

6 7007150

  • 7007150 - BRUSH +
  • positive

7 7007151

  • 7007151 - COVER REAR

8 7007152

  • 7007152 - HOLDER BRUSH
  • W/Ref. 11-12

9 7007153

  • 7007153 - SPRING BRUSH

10 7007154

  • 7007154 - BRUSH -
  • negative

11 7007155

  • 7007155 - SWITCH ASSY MAGNETIC

12 7007156

  • 7007156 - HOUSING GEAR

13 7007157

  • 7007157 - RETAINER

14 7007158

  • 7007158 - KIT SHIFT LEVER

15 7007159

  • 7007159 - COVER DUST

16 7007160

  • 7007160 - BOLT THROUGHT

17 7007161

  • 7007161 - BOLT M6X20

18 7007162

  • 7007162 - BOLT

19 7003977

  • 7003977 - PINION ASSY
  • W/Ref. 22-25

20 7004329

  • 7004329 - CLUTCH ASSEMBLY

21 7003998

  • 7003998 - BEARING BALL

22 7004331

  • 7004331 - SHAFT PINION

23 7004397

  • 7004397 - KIT PINION STOP

24 7004423

  • 7004423 - COVER TERMINAL

25 7004082

  • 7004082 - BOLT

26 7004083

  • 7004083 - BOLT M12X25
