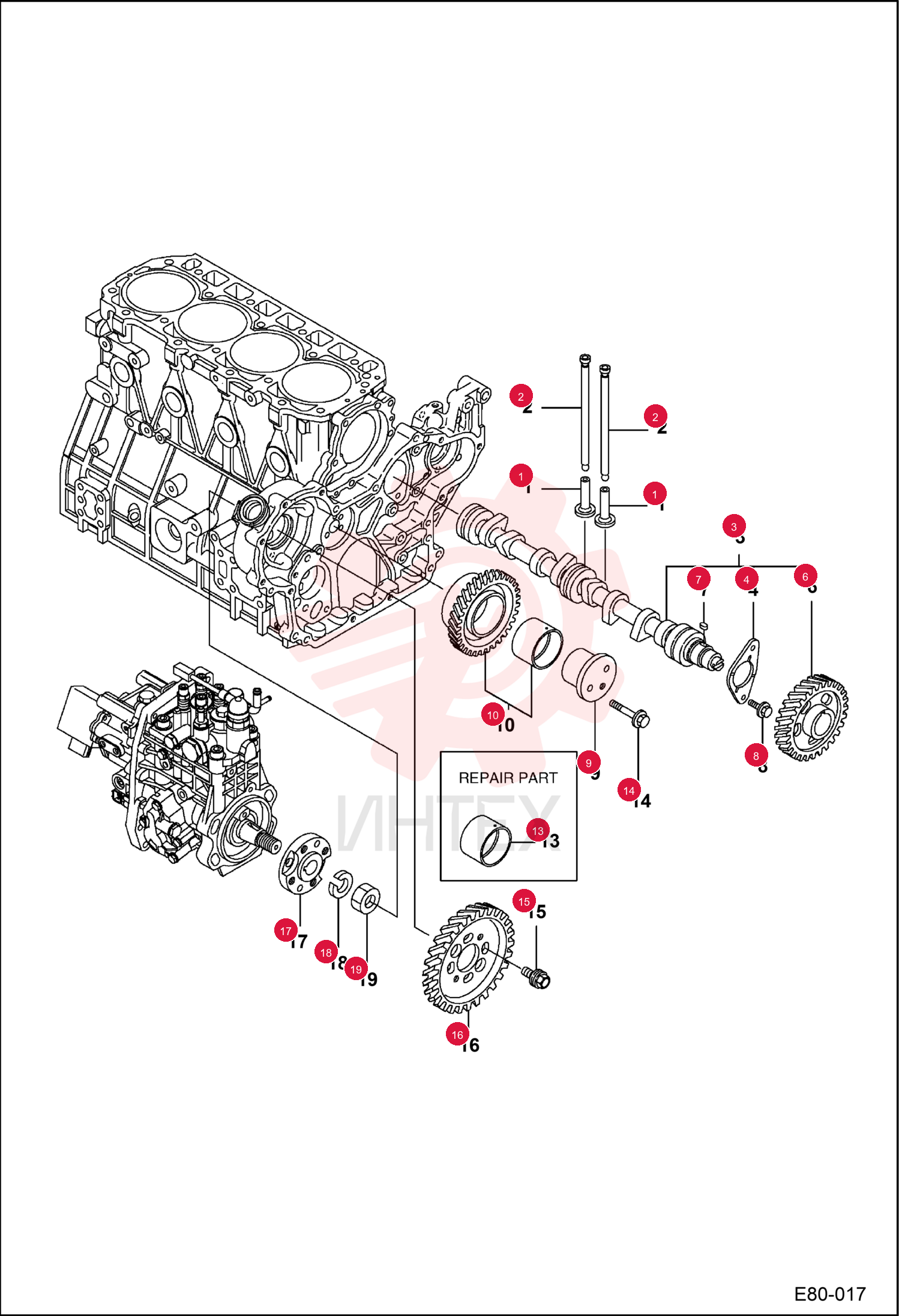

TAPPET 7004419

TAPPET 7004419

TAPPET 7004419

1 7004419

  • 7004419 - TAPPET

2 7005069

  • 7005069 - ROD PUSH

3 7007105

  • 7007105 - CAMSHAFT ASSY
  • W/Ref. 4-7

4 7004214

  • 7004214 - BEARING THRUST

5 7005068

  • 7005068 - GEAR CAM SHAFT

6 7004003

  • 7004003 - KEY

7 7004086

  • 7004086 - BOLT PLATED M8X16

8 7005101

  • 7005101 - SHAFT IDLER GEAR

9 7004356

  • 7004356 - GEAR IDLER ASSEMBLY
  • W/Ref. 13

10 7004371

  • 7004371 - BUSHING IDLE GEAR

11 7004096

  • 7004096 - BOLT PLATED M8X55

12 7004143

  • 7004143 - BOLT

13 7006839

  • 7006839 - GEAR INJ PUMP DRIVE

14 7006840

  • 7006840 - FLANGE
