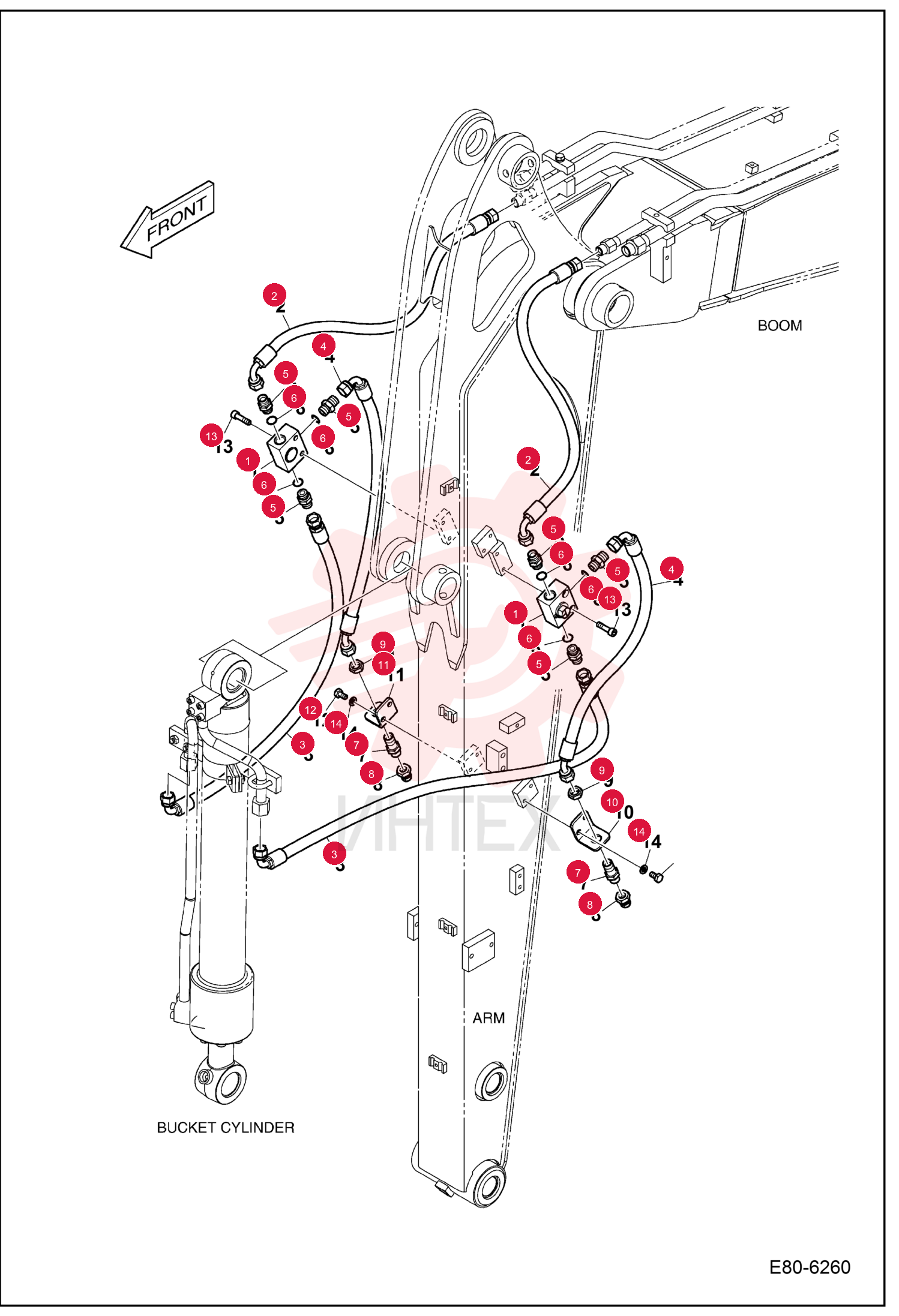

VALVE SWITCH 7004981 (4)

VALVE SWITCH 7004981 (4)

VALVE SWITCH 7004981 (4)

1 7004981

  • 7004981 - VALVE SWITCH

2 7010540

  • 7010540 - HOSE

3 7005463

  • 7005463 - HOSE

4 7005217

  • 7005217 - HOSE

5 7004699

  • 7004699 - ADAPTER

6 7007911

  • 7007911 - O-RING

7 7005566

  • 7005566 - ADAPTER

8 7004766

  • 7004766 - PLUG

9 7003876

  • 7003876 - NUT

10 7005925

  • 7005925 - BRACKET LH

11 7005926

  • 7005926 - BRACKET RH

12 7007626

  • 7007626 - BOLT

13 7007751

  • 7007751 - BOLT SOCKET M10X1.5X40

14 7007835

  • 7007835 - WASHER SPRING
