Bobcat
/
E80
/

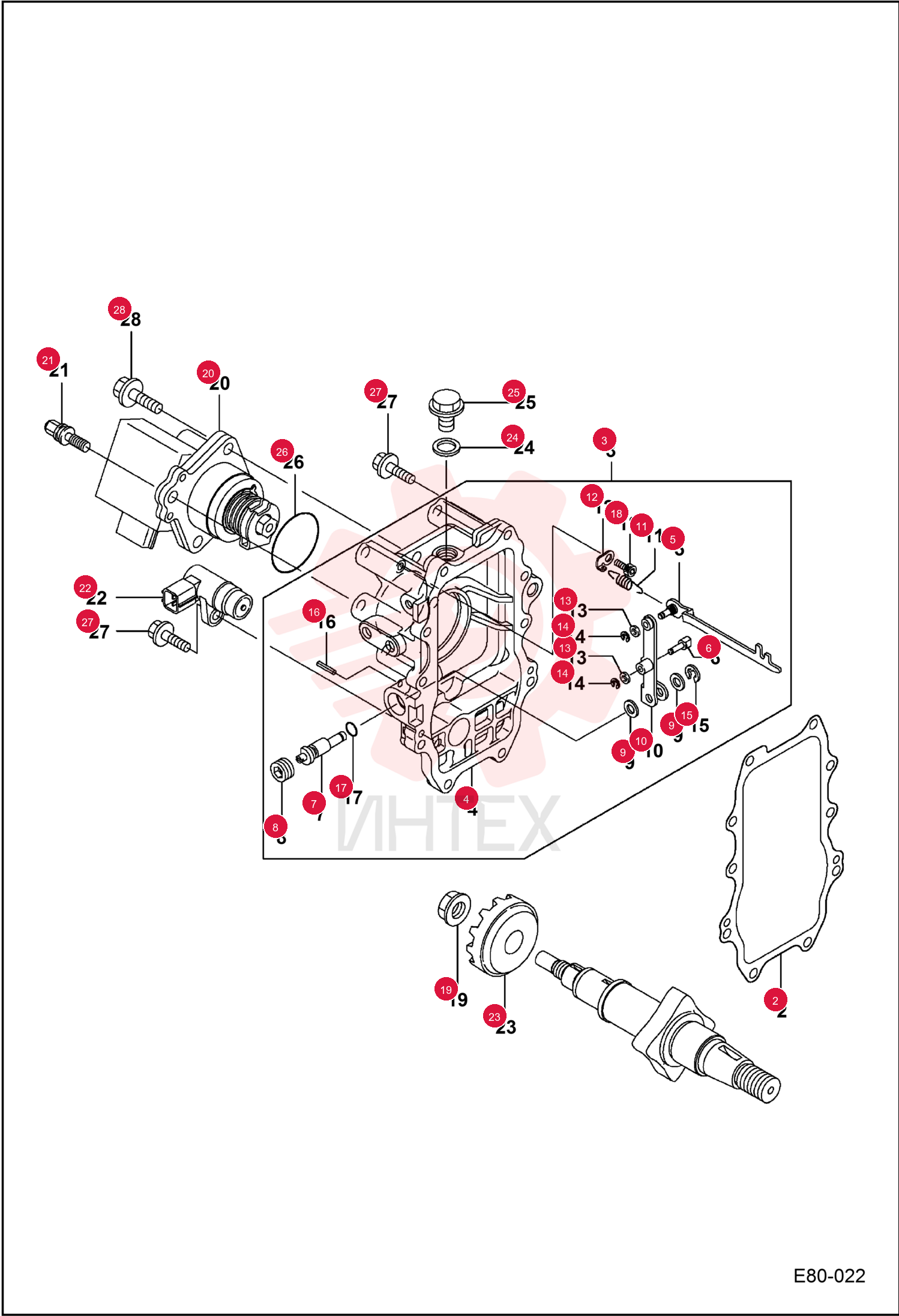

SEAL HOUSING 7006844

SEAL HOUSING 7006844

SEAL HOUSING 7006844

1 7006844

  • 7006844 - SEAL HOUSING

2 7023334

  • 7023334 - ACTUATOR
  • Ref. 4-18 & 20 - Was 7007137

3 7007136

  • 7007136 - HOUSING GOVERNOR

4 7007138

  • 7007138 - LINK

5 7007144

  • 7007144 - PIN

6 7007168

  • 7007168 - SHAFT

7 7007169

  • 7007169 - BOLT

8 7007170

  • 7007170 - SPACER LEVER

9 7007139

  • 7007139 - LEVER GOVERNOR

10 7007171

  • 7007171 - SPRING

11 7007172

  • 7007172 - BRACKET

12 7004020

  • 7004020 - WASHER

13 7007177

  • 7007177 - CLIP CIRCLIP

14 7004183

  • 7004183 - CLIP CIRCLIP

15 7007178

  • 7007178 - PIN

16 7007182

  • 7007182 - ORING

17 7007189

  • 7007189 - BOLT M 5X10

18 7004149

  • 7004149 - NUT

19 7007140

  • 7007140 - ACTUATOR
  • Was 7023334

20 7007141

  • 7007141 - BOLT

21 7007173

  • 7007173 - SENSOR

22 7007167

  • 7007167 - GEAR SENSOR

23 7007181

  • 7007181 - GASKET

24 7007183

  • 7007183 - ORING

25 7006845

  • 7006845 - BOLT M6X25 PLATED

26 7006923

  • 7006923 - BOLT M8X25
