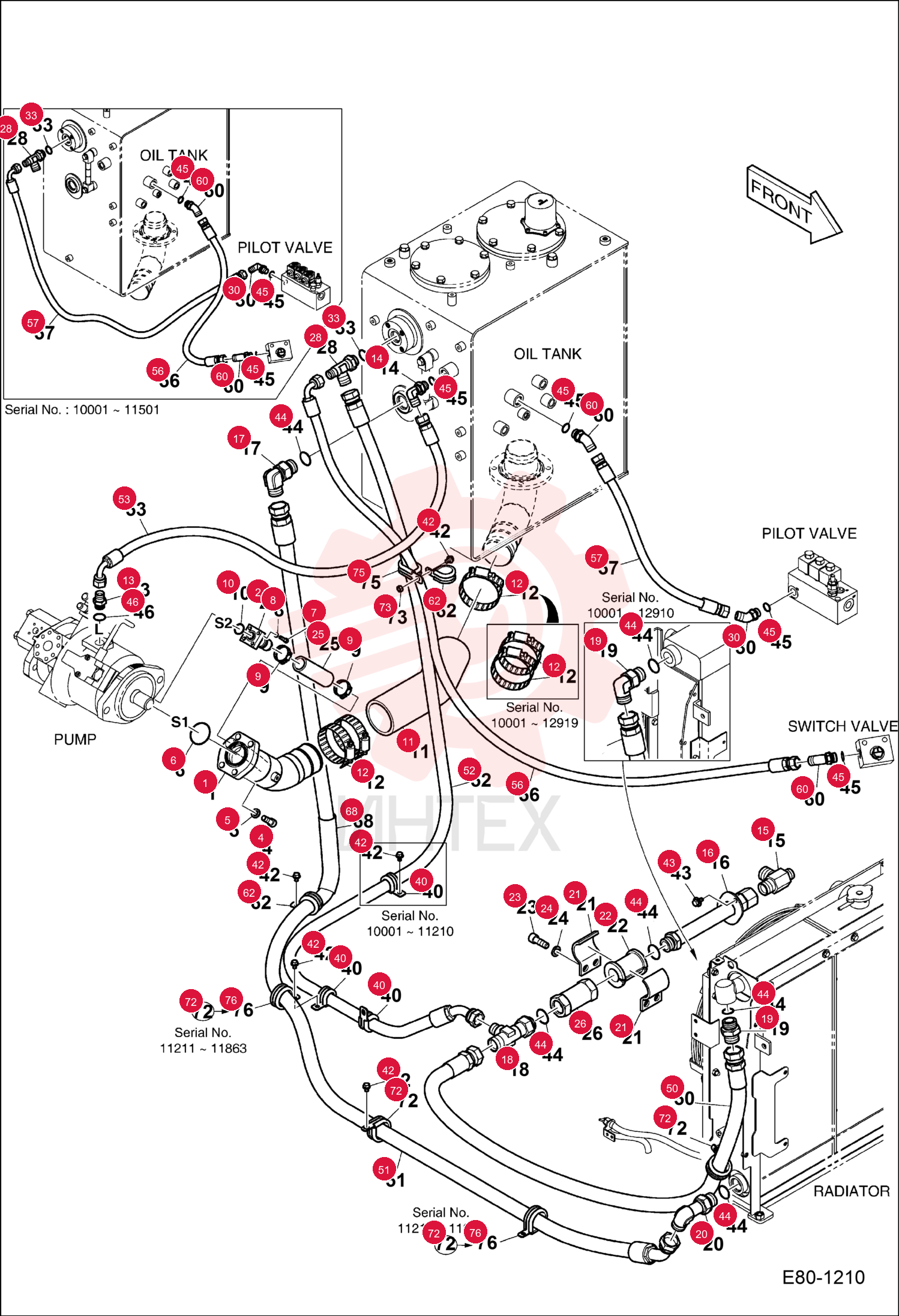

TUBELINE SUCTION 7006305

TUBELINE SUCTION 7006305

TUBELINE SUCTION 7006305

1 7006305

  • 7006305 - TUBELINE SUCTION

2 7029275

  • 7029275 - PIPE
  • SUCTION

3 7006408

  • 7006408 - TUBELINE SUCTION

4 7007761

  • 7007761 - BOLT M12X1.75X35

5 7007845

  • 7007845 - WASHER SPRING

6 7004633

  • 7004633 - O-RING

7 7007726

  • 7007726 - BOLT

8 7008301

  • 7008301 - WASHER

9 7007976

  • 7007976 - CLAMP HOSE

10 7007915

  • 7007915 - O-RING

11 7023170

  • 7023170 - HOSE DRAIN
  • Was 7006294

12 7278129

  • 7278129 - HOSE
  • HYD
  • Was 7007982

13 7004690

  • 7004690 - ADAPTER

14 7004717

  • 7004717 - ELBOW

15 7005568

  • 7005568 - TEE

16 7006425

  • 7006425 - TUBELINE

17 7004708

  • 7004708 - ELBOW

18 7004742

  • 7004742 - TEE

19 7004725

  • 7004725 - ELBOW
  • 90 degree

20 7004687

  • 7004687 - ADAPTER

21 7005560

  • 7005560 - ELBOW

22 7003908

  • 7003908 - CLAMP

23 7369051

  • 7369051 - FITTING RUBBER
  • Was 7003931

24 7007771

  • 7007771 - BOLT

25 7007837

  • 7007837 - WASHER

26 7029090

  • 7029090 - HOSE
  • RUBBER

27 7004783

  • 7004783 - HOSE

28 7006757

  • 7006757 - VALVE BYPASS

29 7005565

  • 7005565 - TEE

30 7004710

  • 7004710 - ELBOW

31 7007916

  • 7007916 - O-RING

32 7003896

  • 7003896 - CLIP

33 7005629

  • 7005629 - BOLT

34 7005129

  • 7005129 - BOLT SET

35 7007920

  • 7007920 - O-RING

36 7284557

  • 7284557 - O-RING
  • Was 7007911

37 7007962

  • 7007962 - O-RING

38 7005154

  • 7005154 - HOSE

39 7274755

  • 7274755 - HOSE

40 7005169

  • 7005169 - HOSE

41 7005175

  • 7005175 - HOSE

42 7005175

  • 7005175 - HOSE

43 7005176

  • 7005176 - HOSE

44 7005204

  • 7005204 - HOSE

45 7005163

  • 7005163 - HOSE

46 7277982

  • 7277982 - HOSE
  • HYD

47 7005447

  • 7005447 - HOSE

48 7277983

  • 7277983 - HOSE
  • HYD

49 7004757

  • 7004757 - ELBOW

50 7003897

  • 7003897 - CLIP

51 7006523

  • 7006523 - GUARD PROTECTOR

52 7003899

  • 7003899 - CLIP

53 7003899

  • 7003899 - CLIP

54 7007796

  • 7007796 - NUT

55 7003903

  • 7003903 - CLIP

56 7003901

  • 7003901 - CLIP
