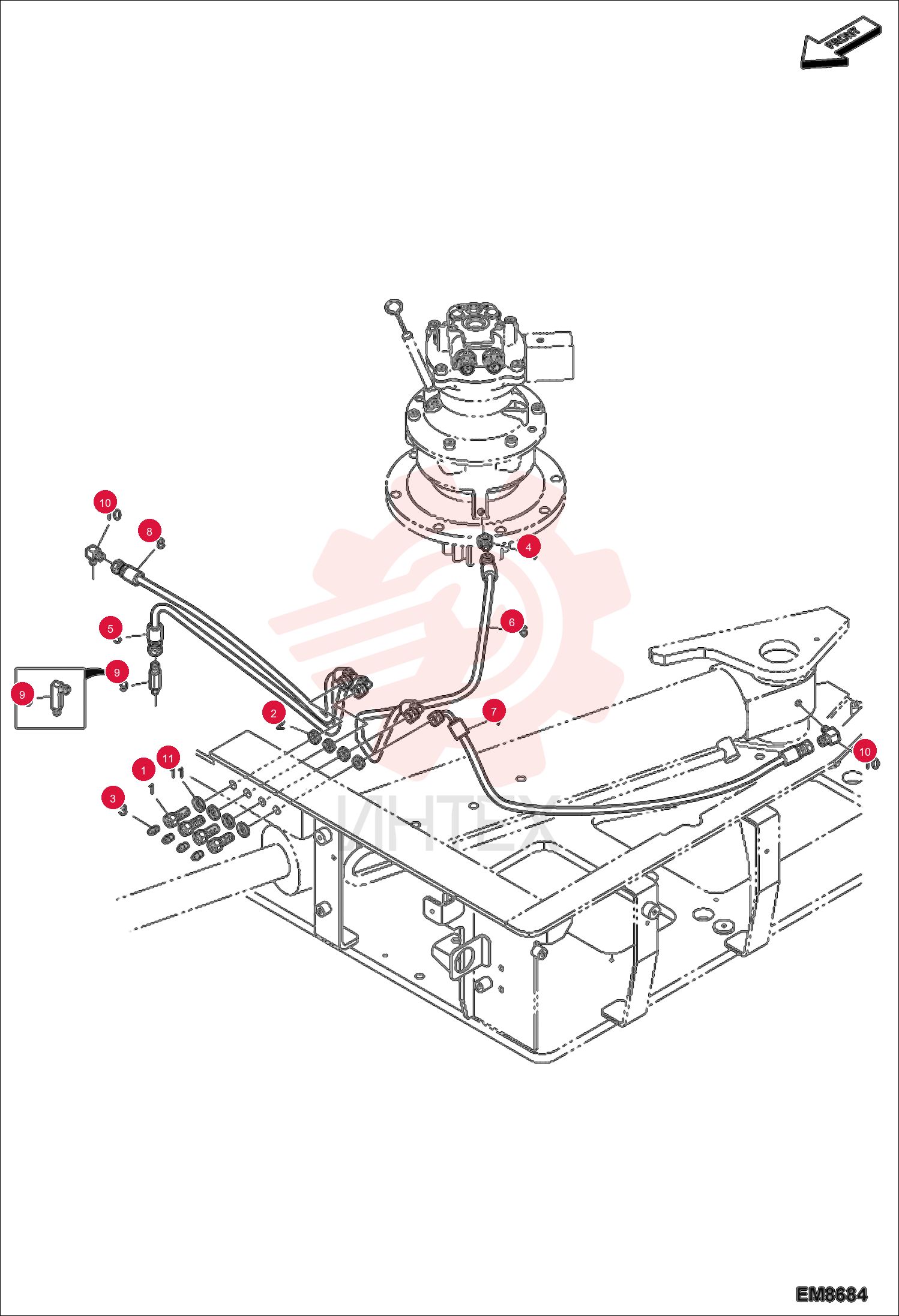

REDUCER 7003952

REDUCER 7003952

REDUCER 7003952

1 7003952

  • 7003952 - REDUCER

2 7003878

  • 7003878 - NUT

3 6694227

  • 6694227 - FITTING
  • GREASE
  • Was 7010246

4 7004669

  • 7004669 - ADAPTER

5 7005375

  • 7005375 - HOSE

6 7005355

  • 7005355 - HOSE

7 7005355

  • 7005355 - HOSE

8 7005315

  • 7005315 - HOSE PF1/4-620L

9 7004670

  • 7004670 - ADAPTER

10 7005557

  • 7005557 - ELBOW

11 7004705

  • 7004705 - ELBOW

12 7007819

  • 7007819 - WASHER
