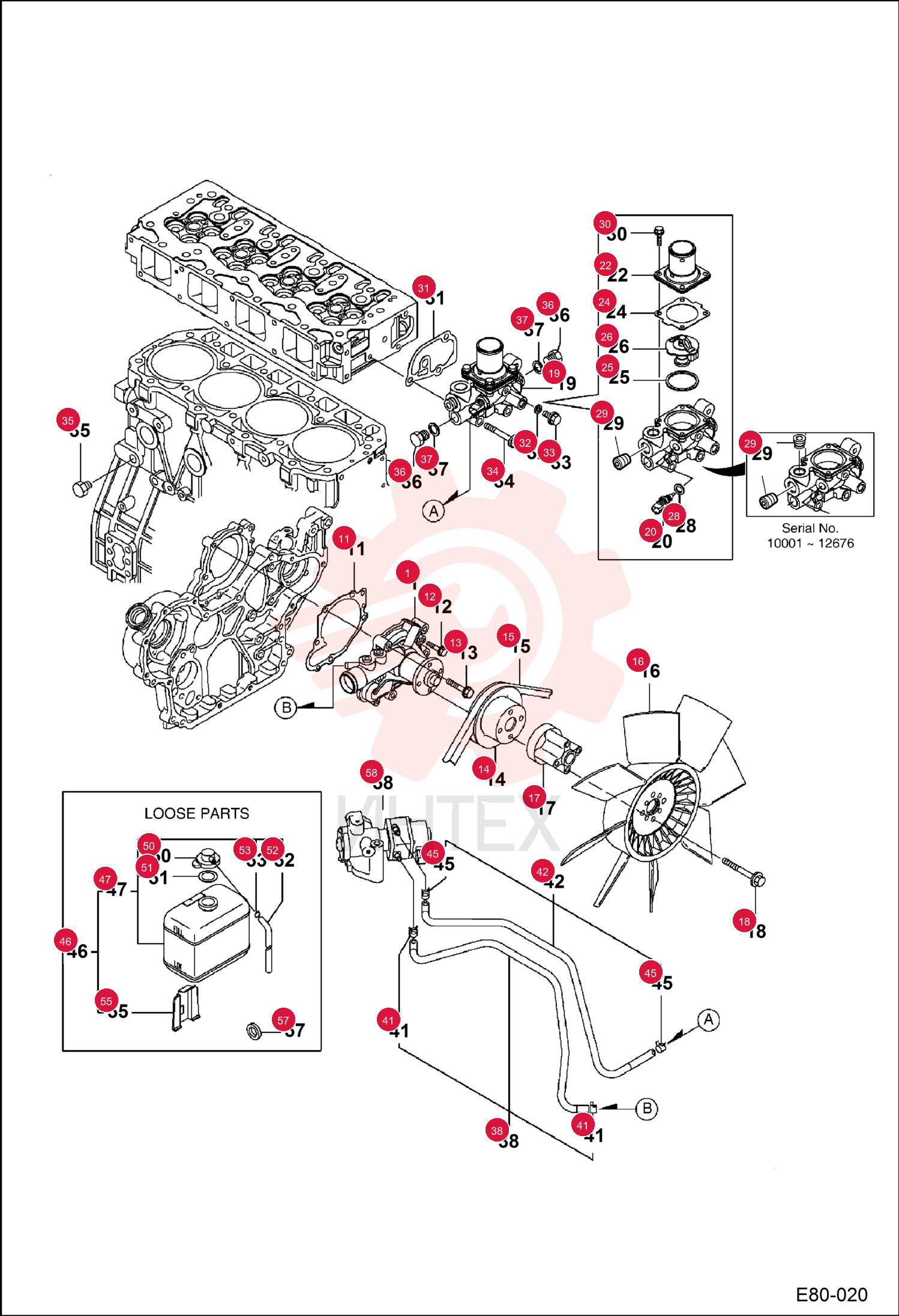

PUMP WATER ASSEMBLY 7007120

PUMP WATER ASSEMBLY 7007120

PUMP WATER ASSEMBLY 7007120

1 7007120

  • 7007120 - PUMP WATER ASSEMBLY

2 7004217

  • 7004217 - GASKET

3 7004078

  • 7004078 - BOLT M6X30

4 7004096

  • 7004096 - BOLT PLATED M8X55

5 7007047

  • 7007047 - PULLEY WATER PUMP

6 7004452

  • 7004452 - BELT FAN
  • 1160 mm (45.67") long - Was 7004451

7 7004449

  • 7004449 - FAN COOLING

8 7004013

  • 7004013 - SPACER FAN

9 7004094

  • 7004094 - BOLT M8X80

10 7007245

  • 7007245 - THERMOSTAT ASSY
  • W/Ref. 20-30

11 7007121

  • 7007121 - SENDER
  • TEMP ENG

12 7007050

  • 7007050 - COVER THERMOSTAT

13 7010311

  • 7010311 - GASKET
  • THERMOSTAT
  • Was 7004218

14 7005114

  • 7005114 - GASKET THERMOSTAT

15 7005078

  • 7005078 - THERMOSTAT

16 7004294

  • 7004294 - PLUG PT8/3 STEEL
  • PT8/3 steel

17 7012805

  • 7012805 - BOLT
  • Was 7004097

18 7004219

  • 7004219 - GASKET HOUSING

19 7004216

  • 7004216 - GASKET ROUND

20 7004093

  • 7004093 - BOLT M8X12

21 7013268

  • 7013268 - BOLT PLATED M8X60
  • Was 7004098

22 7004298

  • 7004298 - PLUG DRAIN

23 7005077

  • 7005077 - PLUG M16

24 7004215

  • 7004215 - GASKET

25 7007122

  • 7007122 - TUBELINE ASSY
  • W/Ref. 41

26 7007180

  • 7007180 - CLIP

27 7007123

  • 7007123 - TUBELINE ASSY
  • W/Ref. 45

28 7007180

  • 7007180 - CLIP

29 7007377

  • 7007377 - TANK RESERVOIR SUB ASSY
  • W/Ref. 47-55

30 7007331

  • 7007331 - TANK RESERVE ASSEMBLY
  • W/Ref. 50-53

31 7007378

  • 7007378 - CAP

32 7007379

  • 7007379 - GASKET

33 7007380

  • 7007380 - TUBELINE

34 7007381

  • 7007381 - CLAMP

35 7007332

  • 7007332 - BRACKET

36 7003942

  • 7003942 - GASKET
