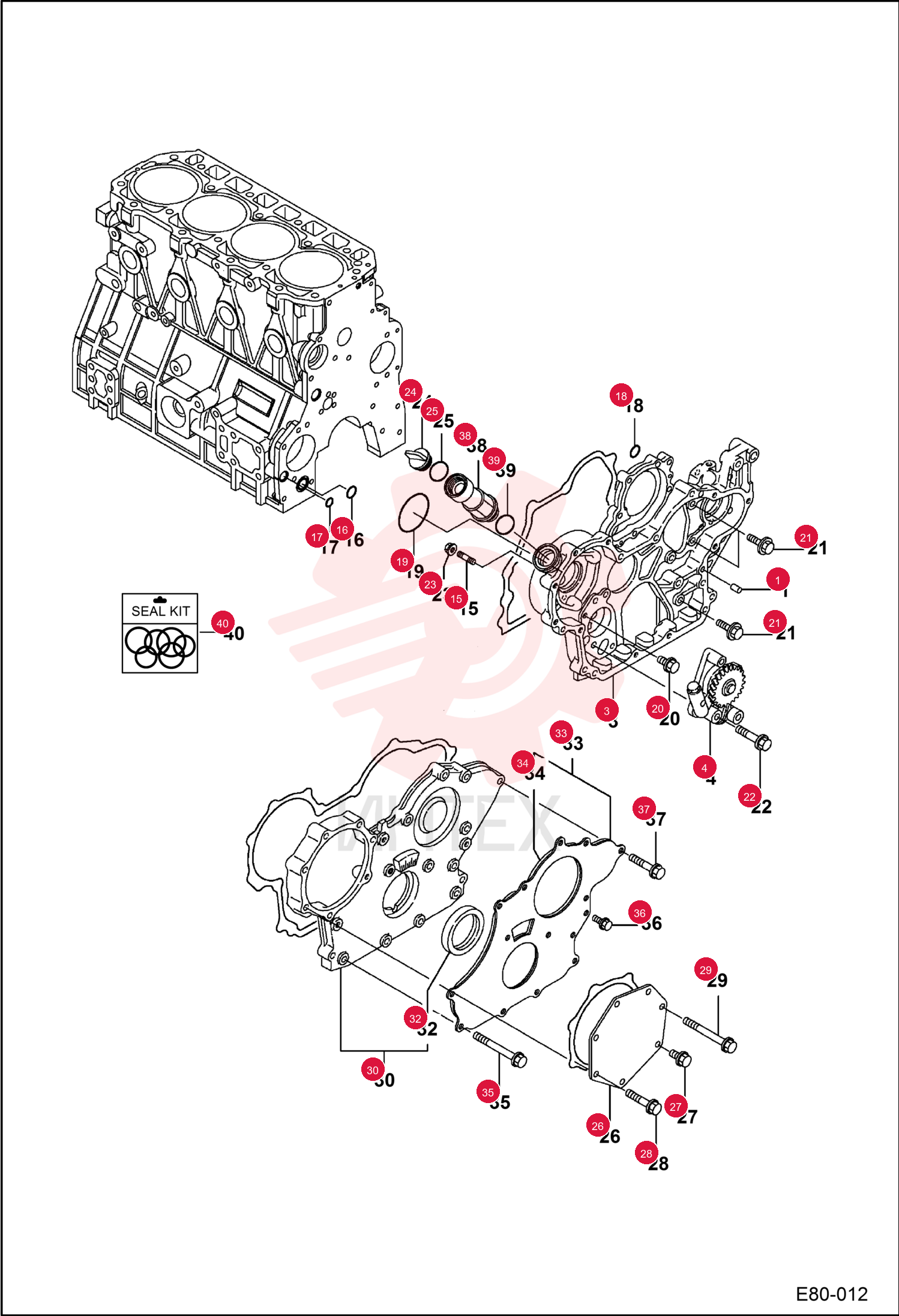

PIN PARALLEL 7007851 (2)

PIN PARALLEL 7007851 (2)

PIN PARALLEL 7007851 (2)

1 7007851

  • 7007851 - PIN PARALLEL

2 7007163

  • 7007163 - HOUSING GEAR

3 7005075

  • 7005075 - НАСОС МАСЛЯНЫЙ
  • BOBCAT

4 12990032000

  • 12990032000 - НАСОС МАСЛЯНЫЙ
  • YANMAR

5 PO36000

  • PO36000 - НАСОС МАСЛЯНЫЙ
  • AUTOWELT

6 7004104

  • 7004104 - BOLT STUD

7 7007913

  • 7007913 - O-RING
  • Was 7007912

8 7284551

  • 7284551 - O-RING
  • Was 7007909

9 7004275

  • 7004275 - SEAL

10 7004086

  • 7004086 - BOLT PLATED M8X16

11 7004087

  • 7004087 - BOLT PLATED M8X20

12 7004080

  • 7004080 - BOLT PLATED M8X45

13 7004161

  • 7004161 - NUT

14 7005107

  • 7005107 - CAP LUB OIL

15 7007921

  • 7007921 - O-RING

16 7004422

  • 7004422 - COVER

17 7004087

  • 7004087 - BOLT PLATED M8X20

18 7004080

  • 7004080 - BOLT PLATED M8X45

19 7007186

  • 7007186 - BOLT M8X75 PLATED

20 7004404

  • 7004404 - HOUSING GEAR
  • W/Ref. 32

21 7004274

  • 7004274 - SEAL OIL

22 7004332

  • 7004332 - COVER ASSEMBLY
  • W/Ref. 34

23 7004212

  • 7004212 - FOAM

24 7004090

  • 7004090 - BOLT PLATED M8X70

25 7004086

  • 7004086 - BOLT PLATED M8X16

26 7004089

  • 7004089 - BOLT PLATED M8X40

27 7005109

  • 7005109 - TUBELINE

28 7007921

  • 7007921 - O-RING

29 7273811

  • 7273811 - KIT
  • REPAIR
  • Use between cylinder block & gearcase
