Bobcat
/
E80
/

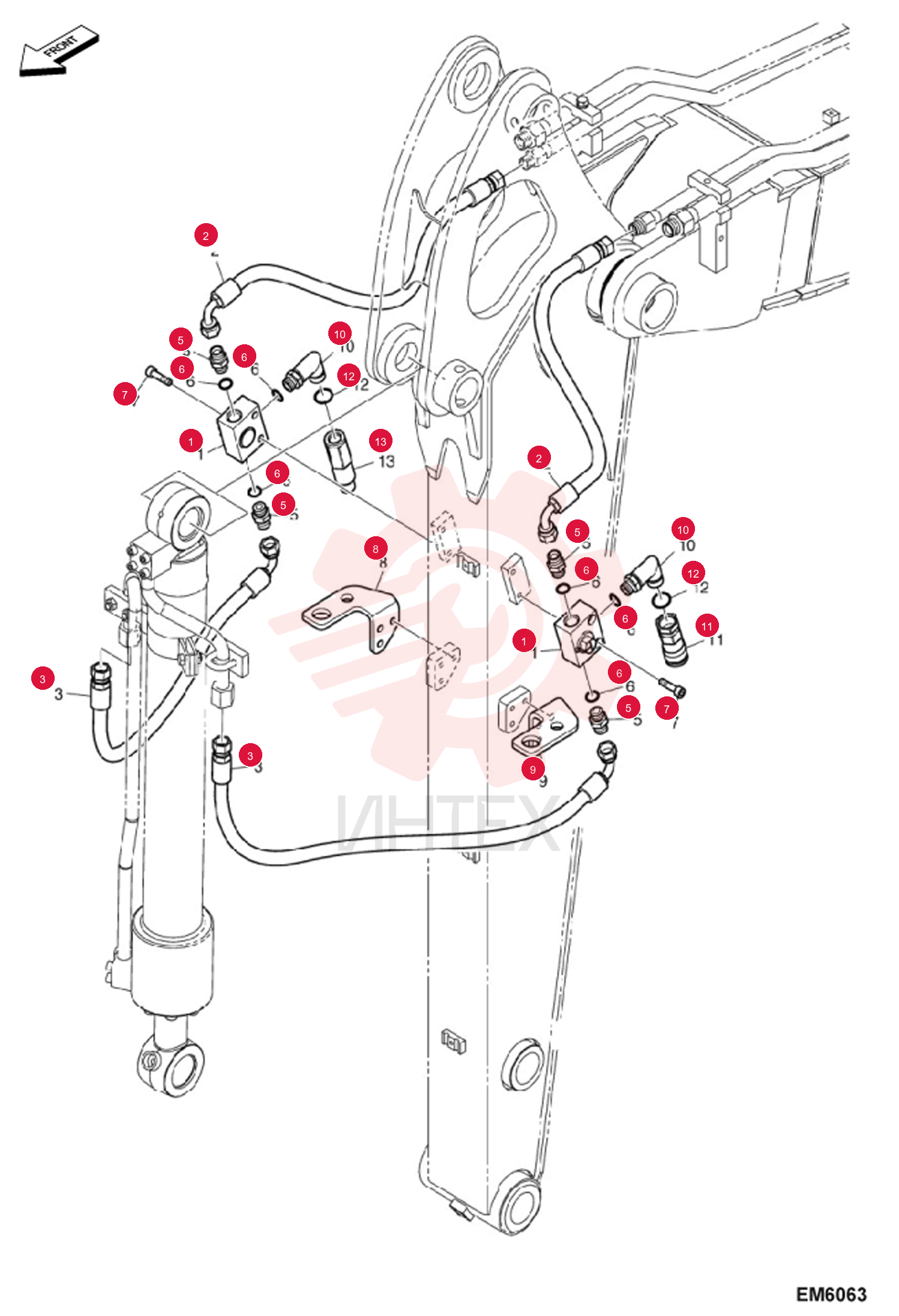

VALVE SWITCH 7004981 (2)

VALVE SWITCH 7004981 (2)

VALVE SWITCH 7004981 (2)

1 7004981

  • 7004981 - VALVE SWITCH

2 7005444

  • 7005444 - HOSE

3 7005462

  • 7005462 - HOSE

4 7004699

  • 7004699 - ADAPTER

5 7284557

  • 7284557 - O-RING
  • Was 7007911

6 7007751

  • 7007751 - BOLT SOCKET M10X1.5X40

7 7022846

  • 7022846 - BRACKET

8 7022847

  • 7022847 - BRACKET

9 7009943

  • 7009943 - ELBOW

10 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

11 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - Was 6672960

12 7009947

  • 7009947 - O-RING

13 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

14 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - Was 6674688
