Bobcat
/
E85
/

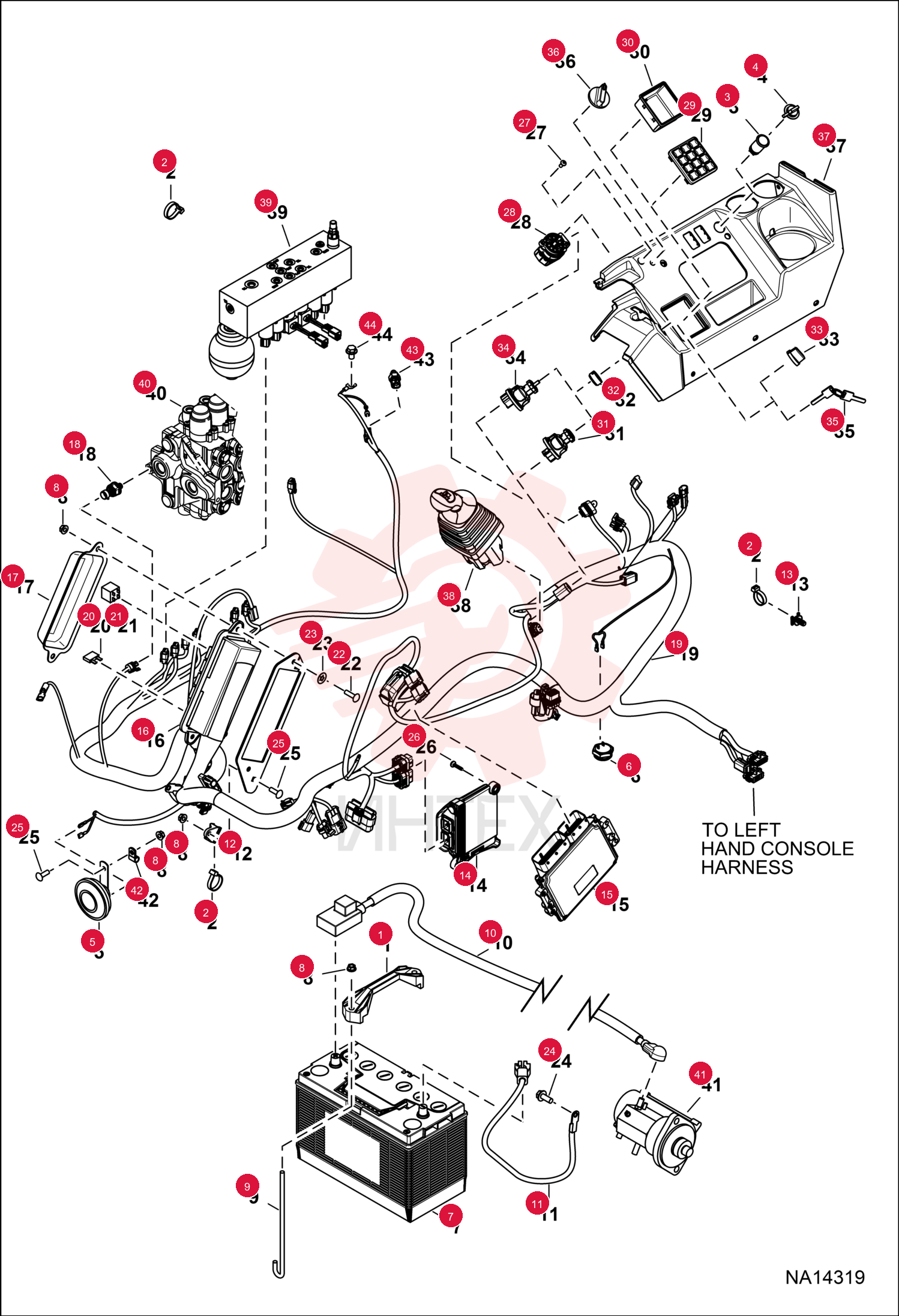

CLAMP BATTERY 6569203

CLAMP BATTERY 6569203

CLAMP BATTERY 6569203

1 6569203

  • 6569203 - CLAMP BATTERY

2 6624289

  • 6624289 - STRAP
  • TIE

3 6664223

  • 6664223 - OUTLET ELECTRICAL

4 6664224

  • 6664224 - CAP

5 6671106

  • 6671106 - ALARM

6 6675705

  • 6675705 - ALARM

7 7312553

  • 7312553 - BATTERY 1000 CCA DRY

8 7269857

  • 7269857 - BATTERY WET 1000 CCA

9 43DM8

  • 43DM8 - NUT FLANGED HEX

10 7319709

  • 7319709 - HOOK TIE DOWN

11 7306914

  • 7306914 - CABLE POSITIVE

12 6807431

  • 6807431 - CABLE
  • NEGATIVE

13 6678818

  • 6678818 - MOUNT

14 7015668

  • 7015668 - MOUNT
  • STRAP TIE

15 7260940

  • 7260940 - CONTROLLER GATEWAY

16 7030329

  • 7030329 - ECU
  • programming by dealer required

17 6718659

  • 6718659 - HOUSING FUSE RELAY

18 6673200

  • 6673200 - FUSE BLOCK

19 6716621

  • 6716621 - COVER
  • FUSE

20 7320663

  • 7320663 - SENSOR PRESS

21 7306915

  • 7306915 - HARNESS CONSOLE RH

22 6654803

  • 6654803 - FUSE 5A

23 6625575

  • 6625575 - FUSE
  • 20A

24 6654806

  • 6654806 - FUSE
  • 15A

25 6702444

  • 6702444 - FUSE 25A 5

26 6733838

  • 6733838 - FUSE BLADE 40 AMP

27 6691626

  • 6691626 - FUSE 50 AMP

28 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC

29 28CM830

  • 28CM830 - BOLT

30 6674264

  • 6674264 - RETAINER BOLT

31 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

32 28CM825

  • 28CM825 - BOLT CARRIAGE 8.8

33 7223129

  • 7223129 - SCREW

34 7135909

  • 7135909 - SCREW

35 7281258

  • 7281258 - CONTROL THROTTLE

36 6693712

  • 6693712 - KEYPAD
  • PANEL

37 7211550

  • 7211550 - CONTAINER
  • STORAGE

38 6693245

  • 6693245 - SWITCH
  • IGN

39 7000328

  • 7000328 - ADAPTER SWITCH

40 7023588

  • 7023588 - KNOB

41 7023022

  • 7023022 - SWITCH ROTARY

42 6709527

  • 6709527 - KEY IGNITION

43 7022367

  • 7022367 - KNOB

44 30H22

  • 30H22 - CLIP INSULATED

45 6727869

  • 6727869 - SENDER
  • HYD TEMP

46 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP
