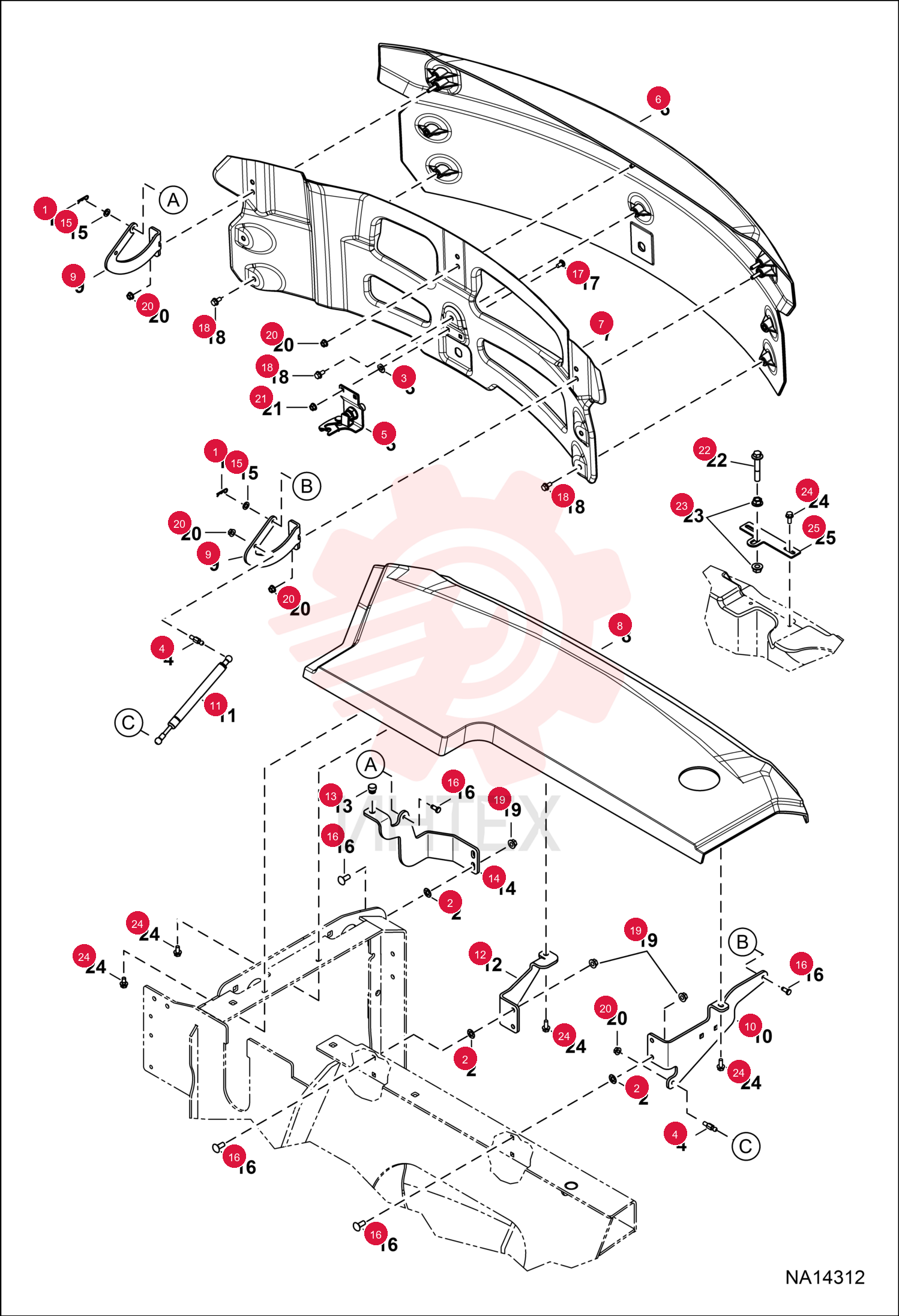

PIN 5 6513495 (1)

PIN 5 6513495 (1)

PIN 5 6513495 (1)

1 6513495

  • 6513495 - PIN 5

2 6674264

  • 6674264 - RETAINER BOLT

3 6675859

  • 6675859 - RETAINER

4 7177735

  • 7177735 - STUD
  • BALL JOINT

5 7252549

  • 7252549 - LATCH DOOR REAR

6 7303517

  • 7303517 - PANEL TAILGATE OUTER

7 7303518

  • 7303518 - PANEL TAILGATE OUTER

8 7303519

  • 7303519 - PANEL TAILGATE INNER

9 7340794

  • 7340794 - HINGE TAILGATE
  • Was 7303520

10 7340795

  • 7340795 - HINGE W/A
  • Was 7303521

11 7303524

  • 7303524 - SPRING GAS

12 7340797

  • 7340797 - BRACKET MOUNTING
  • Was 7303526

13 7226984

  • 7226984 - BUMPER
  • RUBBER

14 7303528

  • 7303528 - HINGE W/A

15 15EM80

  • 15EM80 - WASHER

16 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8

17 28CM816

  • 28CM816 - BOLT CARRIAGE 8.8

18 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

19 43DM10

  • 43DM10 - NUT FLANGED HEX

20 43DM8

  • 43DM8 - NUT FLANGED HEX

21 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

22 29CM1270

  • 29CM1270 - BOLT

23 43DM12

  • 43DM12 - NUT HEX FLNG 10.0

24 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

25 7282554

  • 7282554 - BRACKET ADJUSTING
