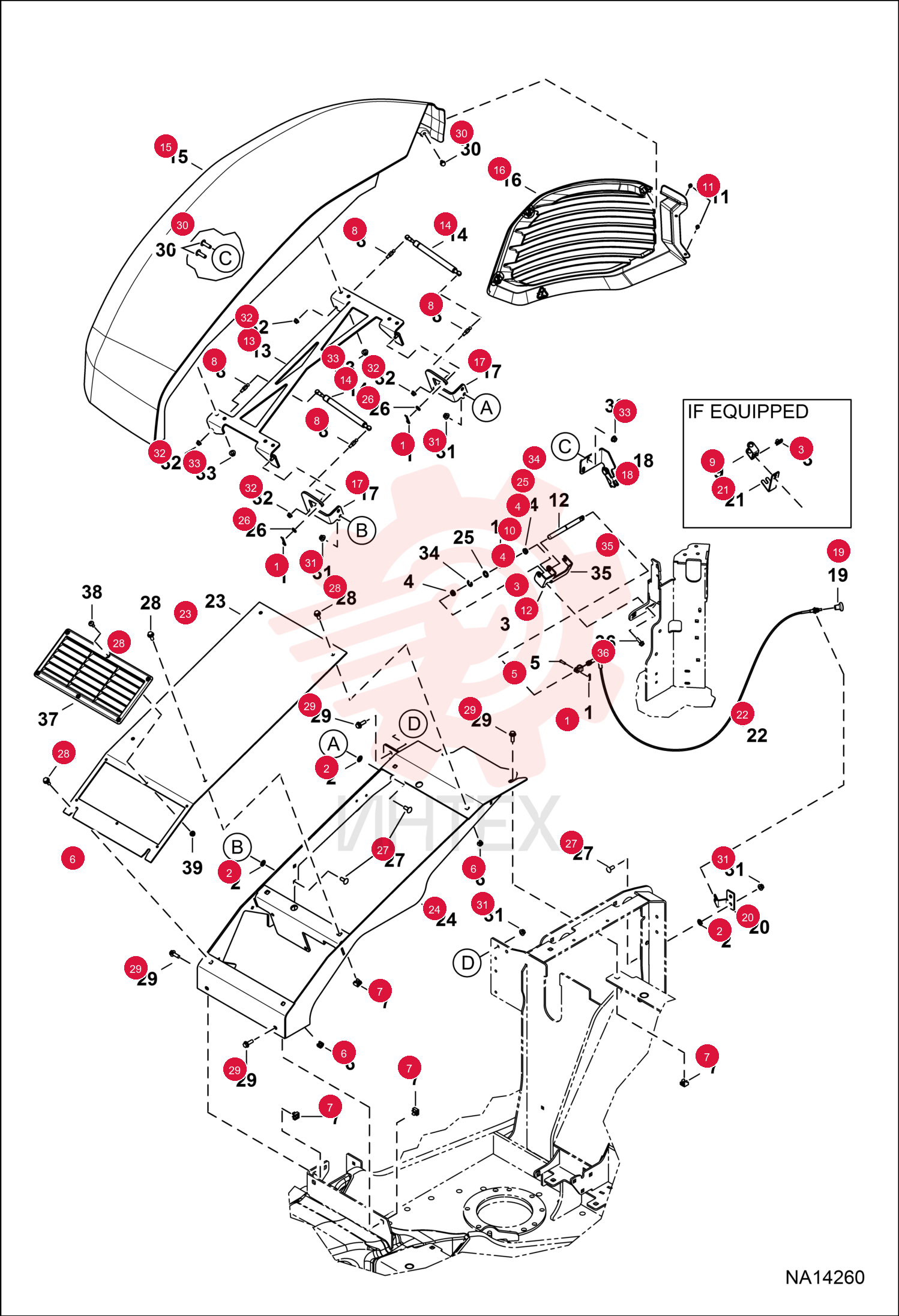

PIN 5 6513495 (2)

PIN 5 6513495 (2)

PIN 5 6513495 (2)

1 6513495

  • 6513495 - PIN 5

2 6674264

  • 6674264 - RETAINER BOLT

3 6676169

  • 6676169 - NUT

4 6698186

  • 6698186 - BEARING
  • CLIP

5 6801068

  • 6801068 - PIN

6 7155411

  • 7155411 - NUT

7 7155413

  • 7155413 - NUT

8 7177735

  • 7177735 - STUD
  • BALL JOINT

9 7282059

  • 7282059 - BRACKET SHIELD

10 7282130

  • 7282130 - SPRING COMPRESSION

11 7286645

  • 7286645 - BUMPER RUBBER

12 7288644

  • 7288644 - STRIKER LATCH DOOR

13 7303513

  • 7303513 - HINGE W/A

14 7355819

  • 7355819 - SPRING GAS
  • Was 7340792

15 7303531

  • 7303531 - COVER RH

16 7303535

  • 7303535 - SCREEN RH

17 7303539

  • 7303539 - HINGE COVER

18 7352565

  • 7352565 - LATCH RH COVER
  • Use W/Ref. 35 - Was 7303540

19 7314400

  • 7314400 - KNOB LOCKING

20 7323088

  • 7323088 - BRACKET MOUNTING

21 7323090

  • 7323090 - CABLE PUSH PULL

22 7326777

  • 7326777 - COVER RH
  • W/O center cover

23 7326779

  • 7326779 - COVER W/A

24 15EM120

  • 15EM120 - WASHER

25 15EM80

  • 15EM80 - WASHER

26 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8

27 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

28 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

29 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

30 43DM10

  • 43DM10 - NUT FLANGED HEX

31 43DM8

  • 43DM8 - NUT FLANGED HEX

32 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

33 9JM100

  • 9JM100 - RING

34 7352562

  • 7352562 - BRACKET SLIDER
  • Use W/Ref. 18 - Was 7340798

35 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8
