Bobcat
/
E85
/

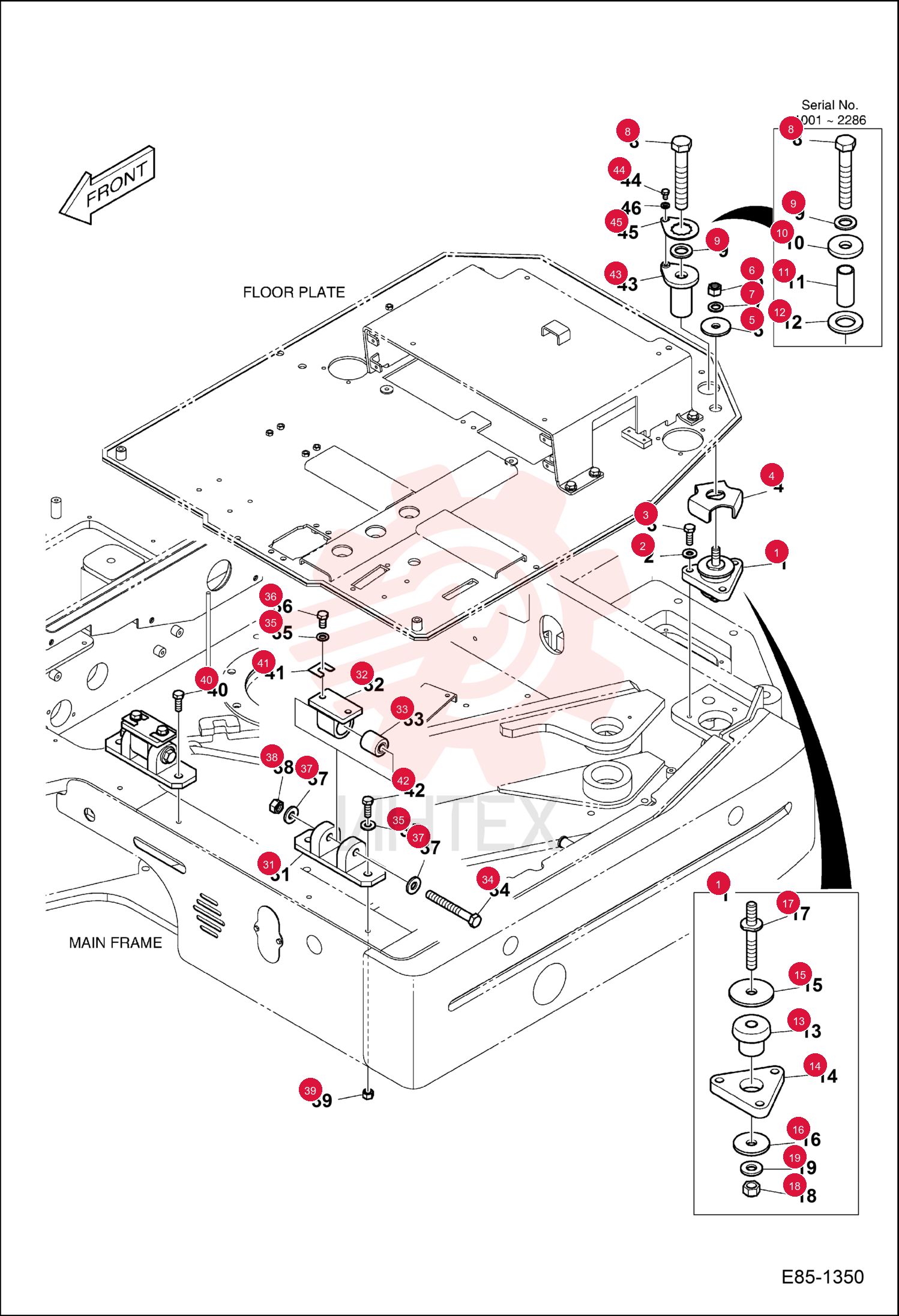

MOUNT 7029237

MOUNT 7029237

MOUNT 7029237

1 7029237

  • 7029237 - MOUNT
  • NLA - Ref. 13-19 - Order components - Was 7006170

2 7004514

  • 7004514 - WASHER

3 7004542

  • 7004542 - BOLT

4 7006281

  • 7006281 - PLATE

5 7006168

  • 7006168 - PLATE

6 7004566

  • 7004566 - NUT

7 7007823

  • 7007823 - WASHER PLAIN

8 7021370

  • 7021370 - BOLT

9 7007824

  • 7007824 - WASHER

10 7021371

  • 7021371 - WASHER

11 7021372

  • 7021372 - PIPE

12 7021373

  • 7021373 - BUSHING

13 7006075

  • 7006075 - MOUNT CAB RUBBER

14 7006167

  • 7006167 - PLATE

15 7008208

  • 7008208 - PLATE

16 7006168

  • 7006168 - PLATE

17 7029431

  • 7029431 - STUD

18 7004566

  • 7004566 - NUT

19 7004468

  • 7004468 - WASHER

20 7028744

  • 7028744 - BRACKET

21 7006208

  • 7006208 - BRACKET

22 7006648

  • 7006648 - MOUNT CAB RUBBER

23 7007711

  • 7007711 - BOLT M16X2.0X130

24 7004518

  • 7004518 - WASHER

25 7004537

  • 7004537 - BOLT

26 7004468

  • 7004468 - WASHER

27 7004566

  • 7004566 - NUT

28 7004567

  • 7004567 - NUT LOCK

29 7004542

  • 7004542 - BOLT

30 7008180

  • 7008180 - SHIM
  • 2T

31 7028709

  • 7028709 - BOLT

32 7281409

  • 7281409 - PIN
  • Was 7276685

33 7028713

  • 7028713 - BOLT

34 7278299

  • 7278299 - PLATE
  • Was 7276686
