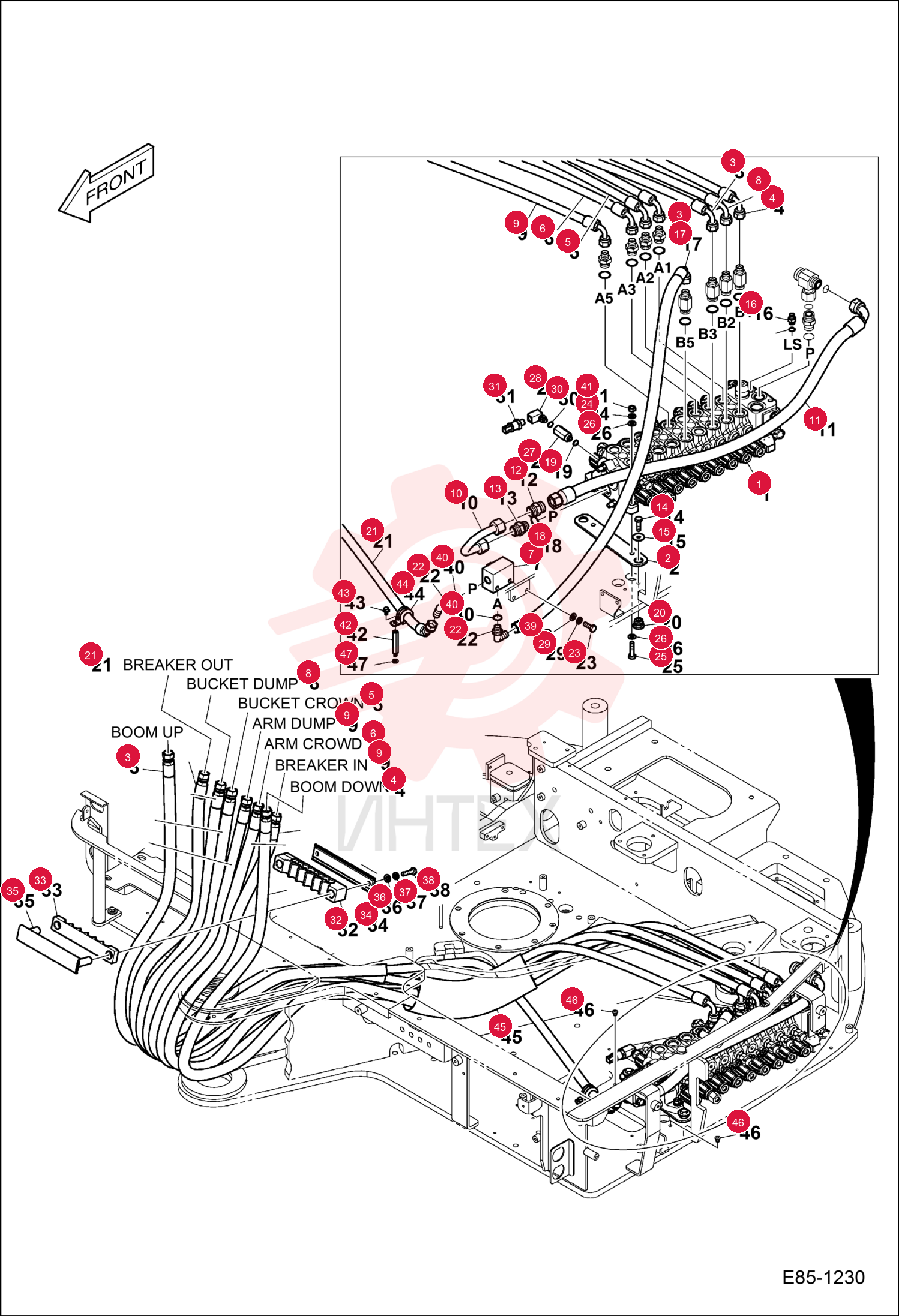

PLATE 7029299 (1)

PLATE 7029299 (1)

PLATE 7029299 (1)

1 7029299

  • 7029299 - PLATE

2 7029124

  • 7029124 - HOSE
  • HYD

3 7029123

  • 7029123 - HOSE
  • HYD

4 7029139

  • 7029139 - HOSE
  • HYD

5 7029127

  • 7029127 - HOSE
  • HYD

6 7332421

  • 7332421 - HOSE HYDRAULIC

7 7004975

  • 7004975 - VALVE SWITCH

8 7029125

  • 7029125 - HOSE
  • HYD

9 7332421

  • 7332421 - HOSE HYDRAULIC

10 7029126

  • 7029126 - HOSE
  • HYD

11 7029469

  • 7029469 - TUBELINE
  • HYD

12 7029128

  • 7029128 - HOSE
  • HYD

13 7029637

  • 7029637 - ADAPTER
  • Was 7029018

14 7029017

  • 7029017 - FITTING

15 7007631

  • 7007631 - BOLT M10X1.5X35

16 7021845

  • 7021845 - WASHER

17 7004693

  • 7004693 - ADAPTER

18 7278185

  • 7278185 - HOSE
  • HYD

19 7009947

  • 7009947 - O-RING

20 7007961

  • 7007961 - O-RING

21 7021821

  • 7021821 - BUSHING
  • SPACER

22 7029138

  • 7029138 - HOSE
  • HYD

23 7332420

  • 7332420 - HOSE HYDRAULIC

24 7004710

  • 7004710 - ELBOW

25 7007629

  • 7007629 - BOLT

26 7007630

  • 7007630 - BOLT

27 7029494

  • 7029494 - WASHER
  • SPRING

28 7007633

  • 7007633 - BOLT

29 7029490

  • 7029490 - WASHER

30 7028675

  • 7028675 - ADAPTER

31 7312836

  • 7312836 - FITTING HYDRAULIC ELBOW 90

32 7029007

  • 7029007 - FITTING
  • ELBOW

33 7029494

  • 7029494 - WASHER
  • SPRING

34 7007835

  • 7007835 - WASHER SPRING

35 7283267

  • 7283267 - O-RING
  • Was 7007906

36 7004912

  • 7004912 - SENSOR PRESSURE
  • Auto Idle Pressure Switch

37 7311397

  • 7311397 - SENSOR PRESS
  • Auto Idle Pressure Switch

38 7028887

  • 7028887 - CLAMP
  • HOSE

39 7028888

  • 7028888 - CLAMP
  • HOSE

40 7029298

  • 7029298 - PLATE

41 7029297

  • 7029297 - PLATE

42 7007818

  • 7007818 - WASHER PLAIN M10

43 7029490

  • 7029490 - WASHER

44 7007835

  • 7007835 - WASHER SPRING

45 7029494

  • 7029494 - WASHER
  • SPRING

46 7007632

  • 7007632 - BOLT

47 7029490

  • 7029490 - WASHER

48 7007818

  • 7007818 - WASHER PLAIN M10

49 7284557

  • 7284557 - O-RING
  • Was 7007911

50 7029243

  • 7029243 - NUT M10X1.5

51 7029436

  • 7029436 - STUD

52 7005629

  • 7005629 - BOLT

53 7003896

  • 7003896 - CLIP

54 7005639

  • 7005639 - GUARD

55 7276601

  • 7276601 - CAP
  • DUST

56 7276756

  • 7276756 - WASHER
