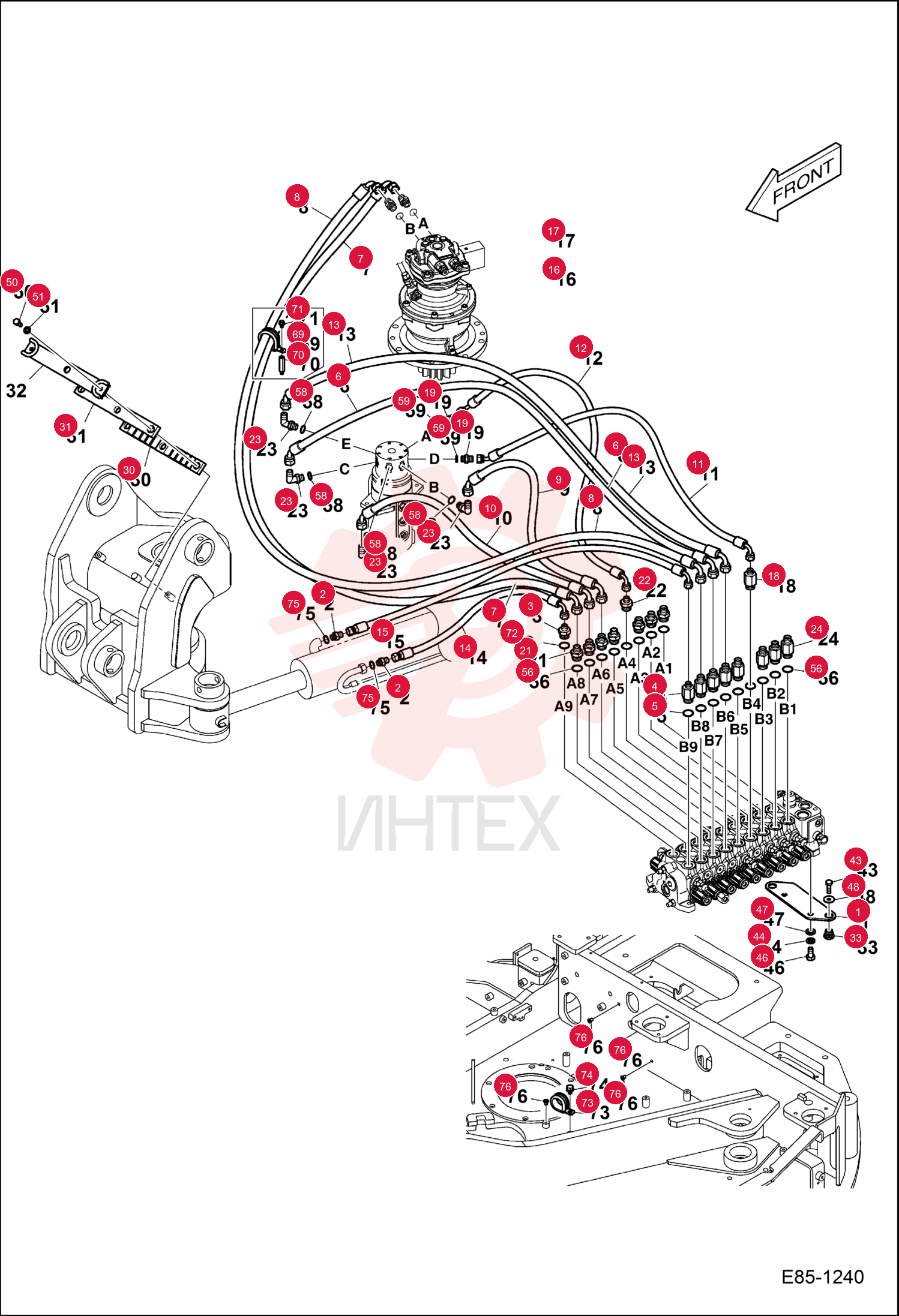

PLATE 7029289 (2)

PLATE 7029289 (2)

PLATE 7029289 (2)

1 7029289

  • 7029289 - PLATE

2 7004700

  • 7004700 - ADAPTER

3 7004677

  • 7004677 - ADAPTER

4 7005543

  • 7005543 - ADAPTER

5 7009947

  • 7009947 - O-RING

6 7332296

  • 7332296 - HOSE HYDRAULIC

7 7005229

  • 7005229 - HOSE PF1/2-990L

8 7005430

  • 7005430 - HOSE

9 7276575

  • 7276575 - HOSE
  • HYD

10 7276576

  • 7276576 - HOSE
  • HYD

11 7005430

  • 7005430 - HOSE

12 7332422

  • 7332422 - HOSE HYDRAULIC

13 7276575

  • 7276575 - HOSE
  • HYD

14 7030156

  • 7030156 - HOSE
  • HYD

15 7029121

  • 7029121 - HOSE
  • HYD

16 7005224

  • 7005224 - HOSE

17 7029199

  • 7029199 - HOSE
  • HYD

18 7029182

  • 7029182 - HOSE
  • HYD

19 7029181

  • 7029181 - HOSE
  • HYD

20 7029092

  • 7029092 - HOSE
  • HYD

21 7276573

  • 7276573 - HOSE
  • HYD

22 7276574

  • 7276574 - HOSE
  • HYD

23 7003899

  • 7003899 - CLIP

24 7005629

  • 7005629 - BOLT

25 7005543

  • 7005543 - ADAPTER

26 7004700

  • 7004700 - ADAPTER

27 7005542

  • 7005542 - ADAPTER

28 7004677

  • 7004677 - ADAPTER

29 7004710

  • 7004710 - ELBOW

30 7005546

  • 7005546 - ADAPTER

31 7028890

  • 7028890 - CLAMP
  • HOSE

32 7028889

  • 7028889 - CLAMP
  • HOSE

33 7029296

  • 7029296 - PLATE

34 7021821

  • 7021821 - BUSHING
  • SPACER

35 7007631

  • 7007631 - BOLT M10X1.5X35

36 7007837

  • 7007837 - WASHER

37 7007643

  • 7007643 - BOLT

38 7007821

  • 7007821 - WASHER

39 7021845

  • 7021845 - WASHER

40 7007628

  • 7007628 - BOLT

41 7029490

  • 7029490 - WASHER

42 7007818

  • 7007818 - WASHER PLAIN M10

43 7009947

  • 7009947 - O-RING

44 7284557

  • 7284557 - O-RING
  • Was 7007911

45 7284551

  • 7284551 - O-RING
  • Was 7007909

46 7003892

  • 7003892 - CLIP

47 7029432

  • 7029432 - STUD

48 7005629

  • 7005629 - BOLT

49 7284551

  • 7284551 - O-RING
  • Was 7007909

50 7017385

  • 7017385 - CLIP

51 7003899

  • 7003899 - CLIP

52 7028720

  • 7028720 - BOLT

53 7005629

  • 7005629 - BOLT

54 7284551

  • 7284551 - O-RING
  • Was 7007909

55 7276601

  • 7276601 - CAP
  • DUST

56 7369059

  • 7369059 - COVER WRAP
