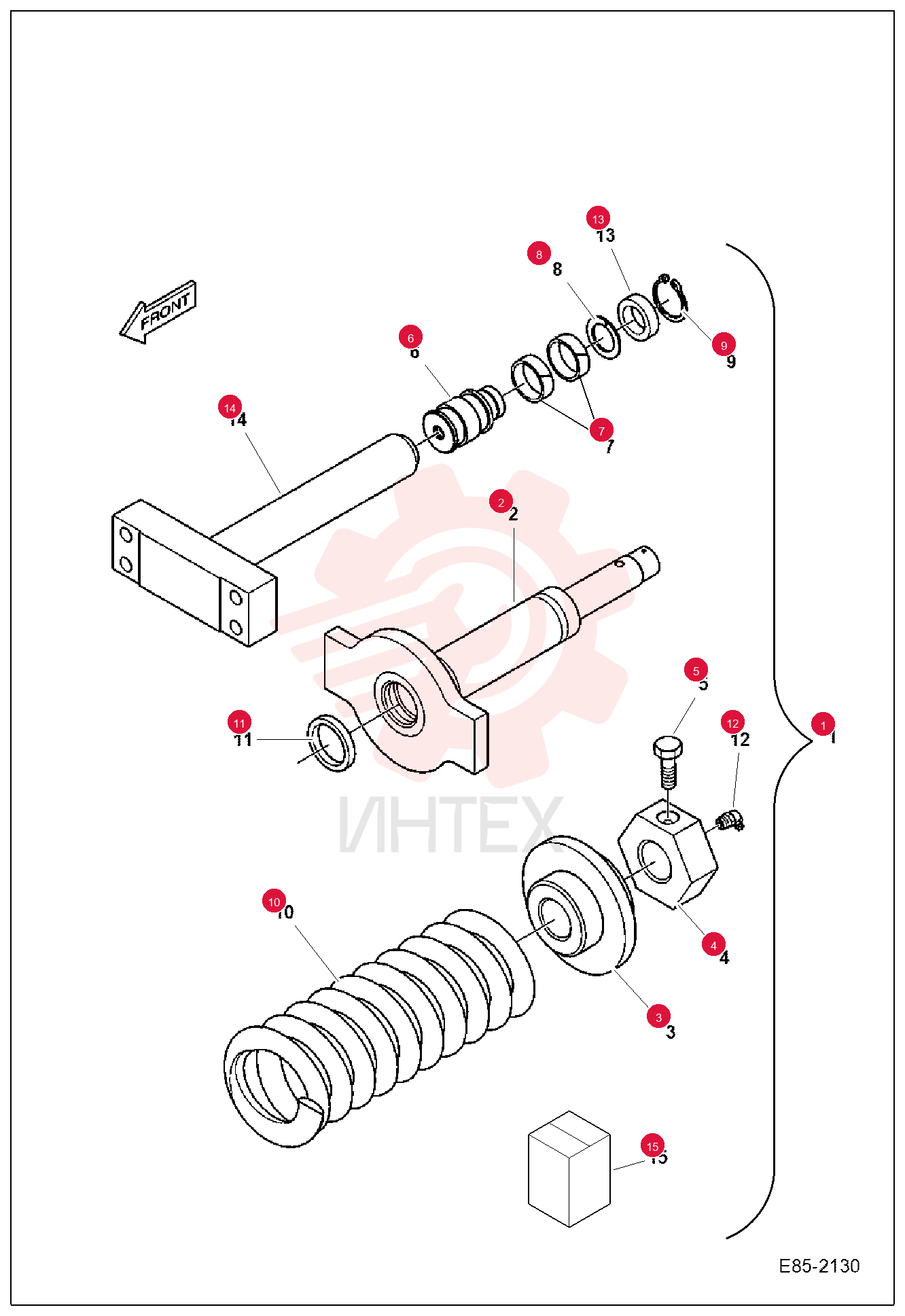

TENSIONER, TRACK 7029546 (2)

TENSIONER, TRACK 7029546 (2)

TENSIONER, TRACK 7029546 (2)

1 7029546

  • 7029546 - TENSIONER
  • TRACK

2 7004559

  • 7004559 - NUT

3 7004526

  • 7004526 - BOLT

4 7007876

  • 7007876 - RING SNAP

5 7006795

  • 7006795 - SPRING

6 7010460

  • 7010460 - VALVE
  • GREASE
  • Was 7004977

7 7004597

  • 7004597 - KIT SEAL 7.8.11.13
  • W/Ref. 7
  • 8
  • 11
  • 13
