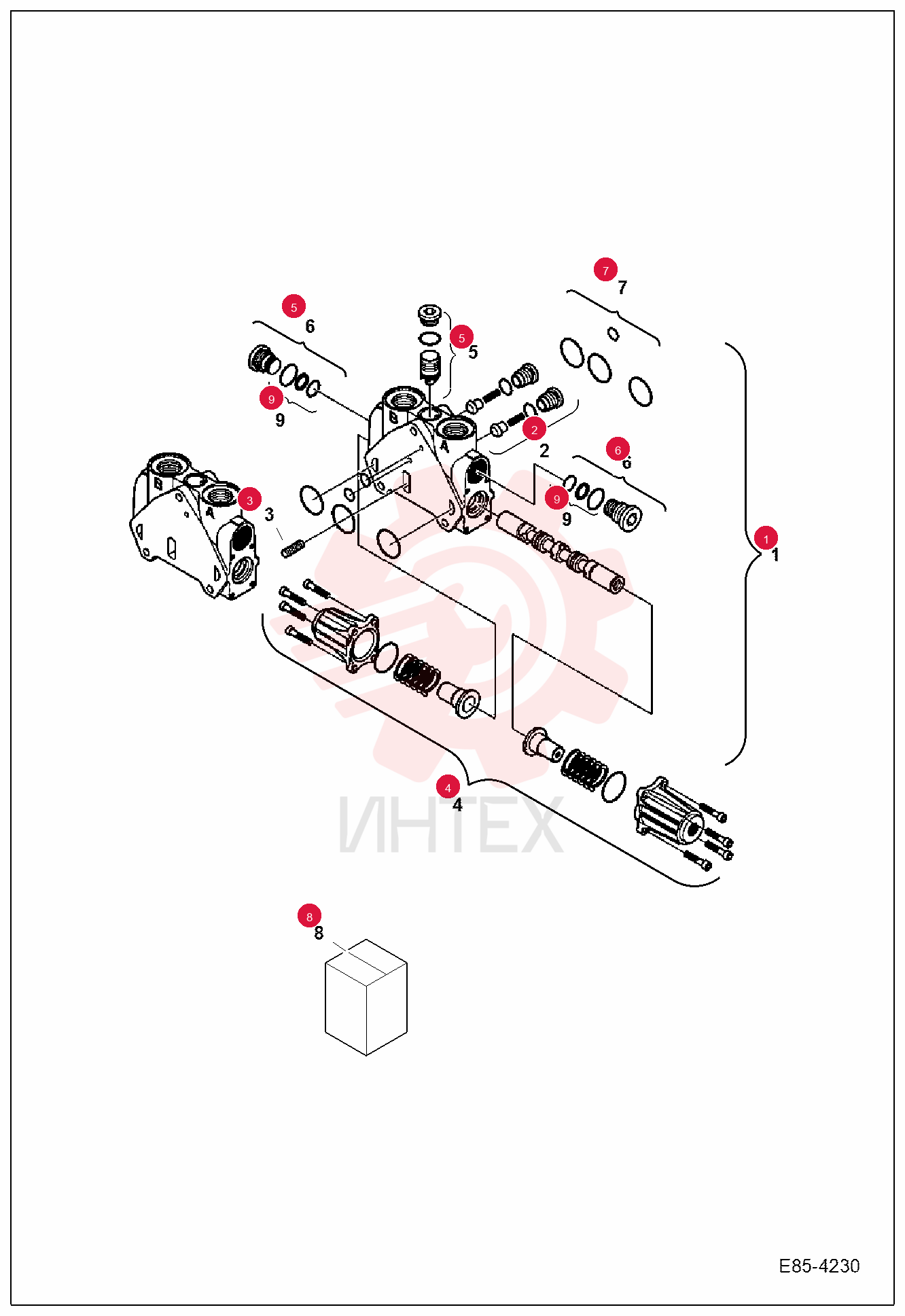

SECTION, VALVE 7029376 (1)

SECTION, VALVE 7029376 (1)

SECTION, VALVE 7029376 (1)

1 7029376

  • 7029376 - SECTION
  • VALVE

2 7029476

  • 7029476 - VALVE
  • CHECK

3 7007562

  • 7007562 - THROTTLE TRANS

4 7007576

  • 7007576 - CAP PLUNGER KIT

5 7029478

  • 7029478 - VALVE

6 7007561

  • 7007561 - PLUG

7 7007565

  • 7007565 - KIT
  • SEAL

8 7029356

  • 7029356 - KIT
  • SEAL

9 7007560

  • 7007560 - KIT
  • SEAL
