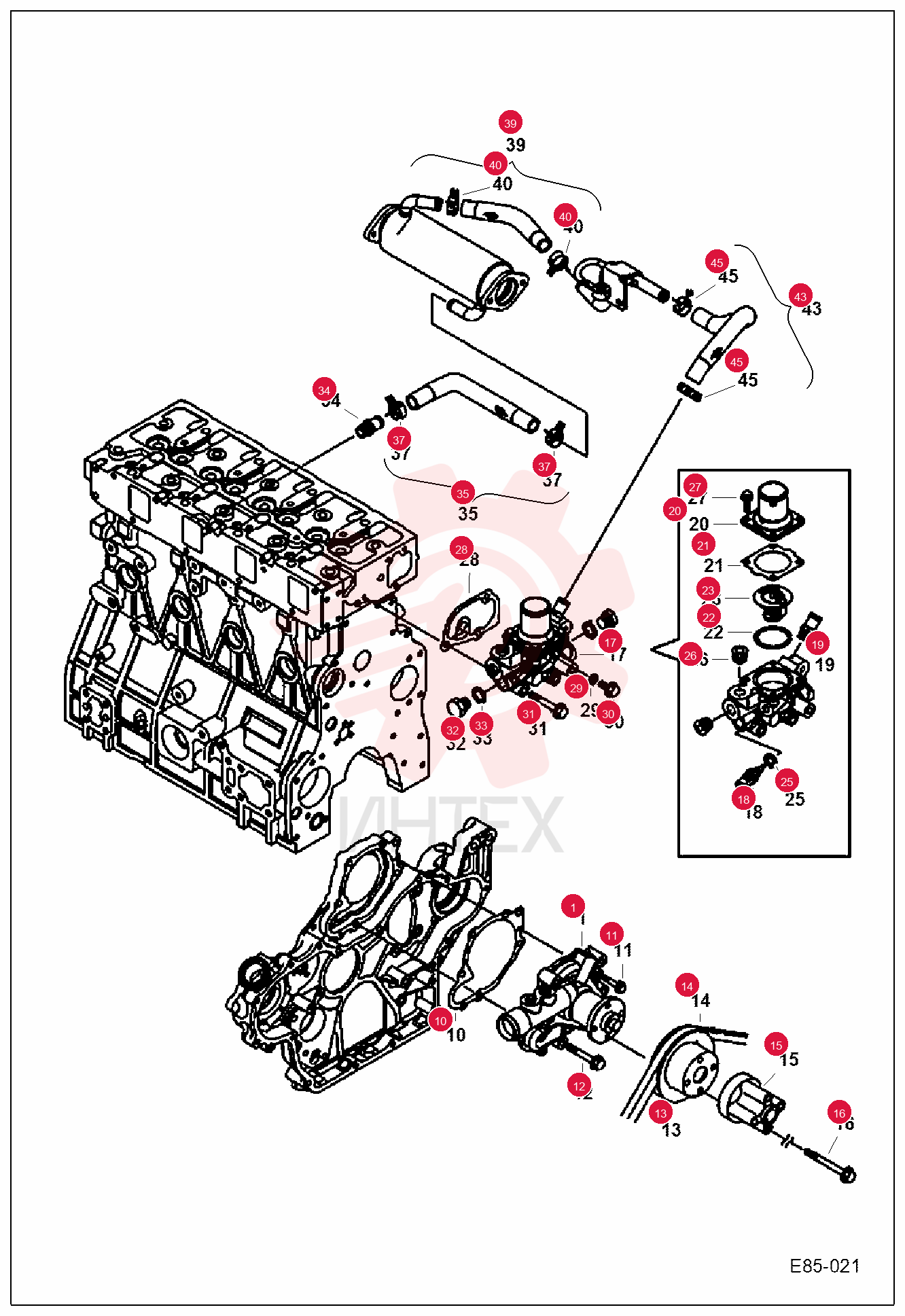

PUMP, WATER 7029318 (1)

PUMP, WATER 7029318 (1)

PUMP, WATER 7029318 (1)

1 7029318

  • 7029318 - PUMP
  • WATER

2 7004217

  • 7004217 - GASKET

3 7004078

  • 7004078 - BOLT M6X30

4 7004096

  • 7004096 - BOLT PLATED M8X55

5 7007047

  • 7007047 - PULLEY WATER PUMP

6 7004452

  • 7004452 - BELT FAN
  • 1160 mm (45.67") long - Was 7004451

7 7004013

  • 7004013 - SPACER FAN

8 7004094

  • 7004094 - BOLT M8X80

9 7028843

  • 7028843 - THERMOSTAT ASSY
  • W/Ref. 18-27

10 7007121

  • 7007121 - SENDER
  • TEMP ENG

11 7029213

  • 7029213 - FITTING

12 7007050

  • 7007050 - COVER THERMOSTAT

13 7004218

  • 7004218 - GASKET THERMOSTAT

14 7005114

  • 7005114 - GASKET THERMOSTAT

15 7029462

  • 7029462 - THERMOSTAT

16 7004022

  • 7004022 - SEAL WASHER

17 7004294

  • 7004294 - PLUG PT8/3 STEEL

18 7004097

  • 7004097 - BOLT M6X20

19 7004219

  • 7004219 - GASKET HOUSING

20 7004216

  • 7004216 - GASKET ROUND

21 7004093

  • 7004093 - BOLT M8X12

22 7004098

  • 7004098 - BOLT PLATED M8X60

23 7005077

  • 7005077 - PLUG M16

24 7004215

  • 7004215 - GASKET

25 7029213

  • 7029213 - FITTING

26 7029091

  • 7029091 - HOSE
  • WATER FORMED
  • W/Ref. 37

27 7028907

  • 7028907 - CLIP
  • HOSE

28 7029096

  • 7029096 - HOSE
  • WATER FORMED
  • W/Ref. 40

29 7028907

  • 7028907 - CLIP
  • HOSE

30 7029097

  • 7029097 - HOSE
  • WATER FORMED
  • W/Ref. 45

31 7028907

  • 7028907 - CLIP
  • HOSE
