Bobcat
/
E85
/

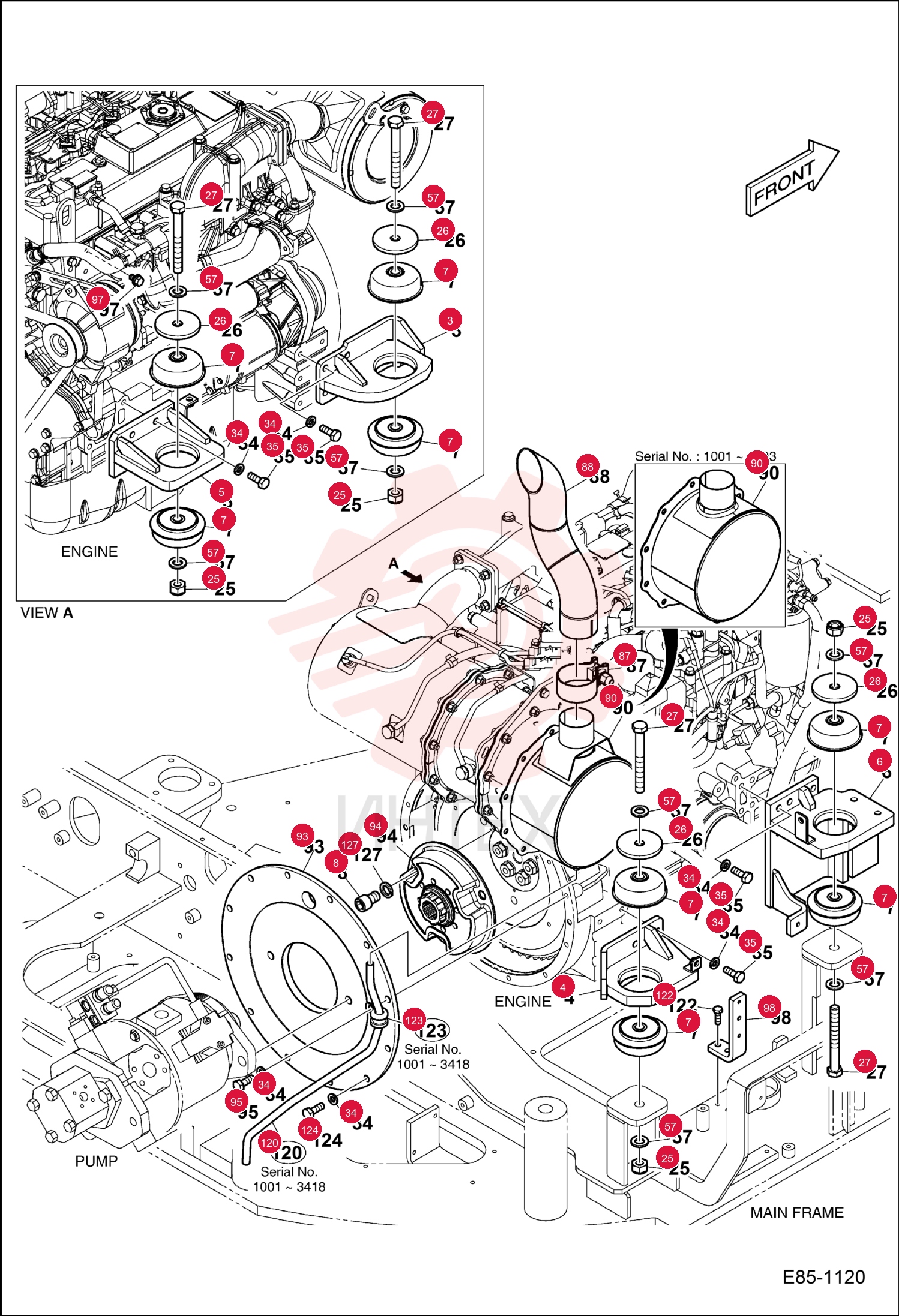

MOUNT, ENG 7029235 (2)

MOUNT, ENG 7029235 (2)

MOUNT, ENG 7029235 (2)

1 7029235

  • 7029235 - MOUNT
  • ENG

2 7029236

  • 7029236 - MOUNT
  • ENG

3 7005822

  • 7005822 - BRACKET ENGINE MOUNT

4 7277551

  • 7277551 - MOUNT
  • ENG

5 7277552

  • 7277552 - MOUNT
  • ENG

6 7007773

  • 7007773 - BOLT SOCKET

7 7005141

  • 7005141 - NUT LOCK

8 7006463

  • 7006463 - WASHER

9 7007718

  • 7007718 - BOLT

10 7007835

  • 7007835 - WASHER SPRING

11 7007630

  • 7007630 - BOLT

12 7007821

  • 7007821 - WASHER

13 7029277

  • 7029277 - CLAMP
  • HOSE

14 7028886

  • 7028886 - PIPE
  • EXHAUST

15 7330180

  • 7330180 - PIPE EXHAUST

16 7330179

  • 7330179 - MUFFLER EXHAUST

17 7028958

  • 7028958 - MOUNT
  • PUMP

18 7006098

  • 7006098 - COUPLER

19 7007629

  • 7007629 - BOLT

20 7005135

  • 7005135 - BOLT

21 7277553

  • 7277553 - BRACKET

22 7029189

  • 7029189 - HOSE
  • AIR FORMED

23 7007620

  • 7007620 - BOLT

24 7003893

  • 7003893 - CLIP

25 7029509

  • 7029509 - BOLT

26 7007847

  • 7007847 - WASHER
