Bobcat
/
E85
/

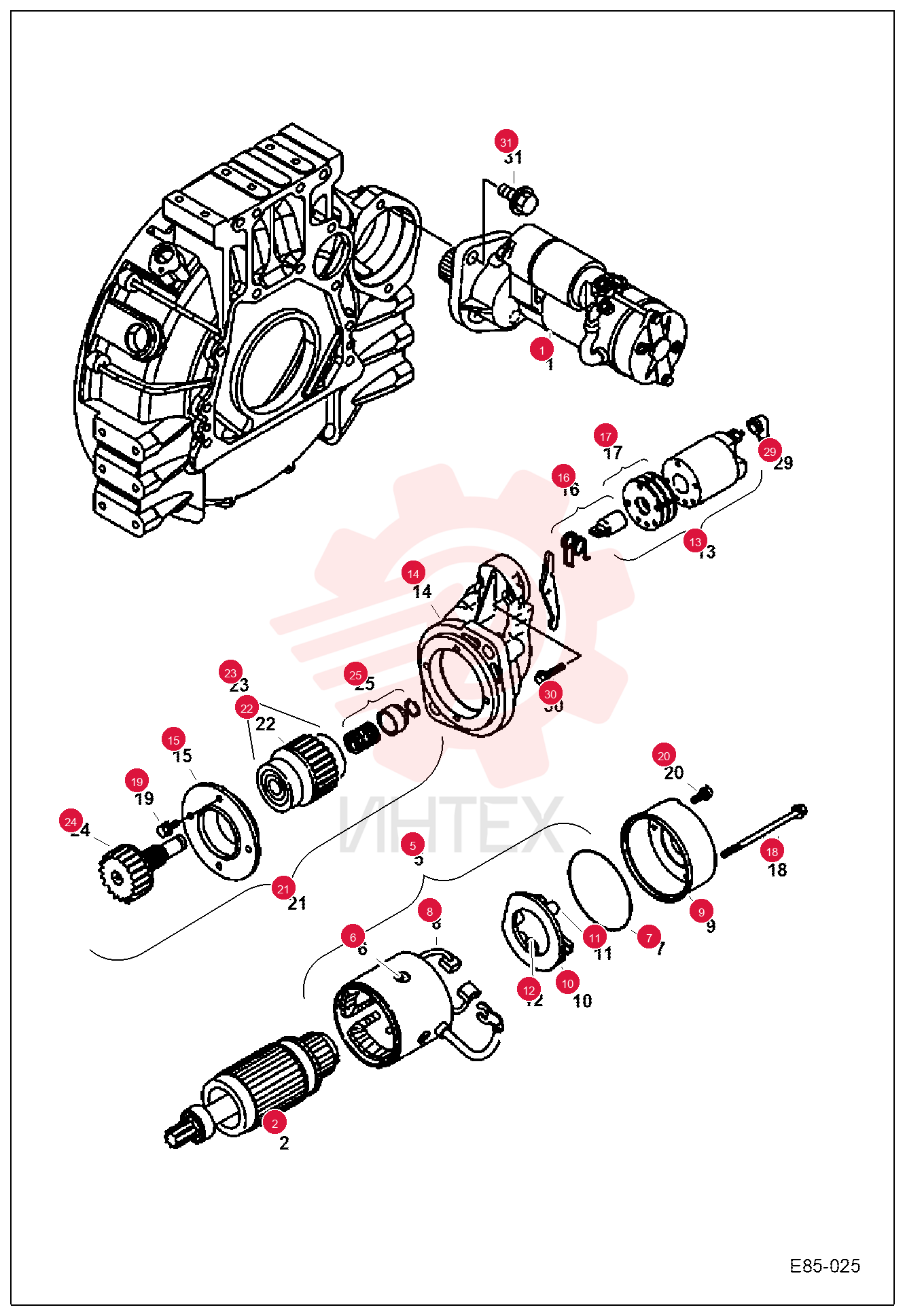

STARTER 7029416 (2)

STARTER 7029416 (2)

STARTER 7029416 (2)

1 7029416

  • 7029416 - STARTER
  • W/Ref. 2-30

2 7007146

  • 7007146 - ARMATURE ASSY

3 7007147

  • 7007147 - COIL ASSY FIELD
  • W/Ref. 6-8

4 7007148

  • 7007148 - BOLT

5 7007149

  • 7007149 - O-RING

6 7007150

  • 7007150 - BRUSH +

7 7028960

  • 7028960 - COVER
  • REAR

8 7029085

  • 7029085 - HOLDER
  • BRUSH
  • W/Ref. 11-12

9 7007153

  • 7007153 - SPRING BRUSH

10 7007154

  • 7007154 - BRUSH -

11 7007155

  • 7007155 - SWITCH ASSY MAGNETIC
  • W/Ref. 17

12 7029210

  • 7029210 - HOUSING
  • GEAR

13 7007157

  • 7007157 - RETAINER

14 7007158

  • 7007158 - KIT SHIFT LEVER

15 7007159

  • 7007159 - COVER DUST

16 7007160

  • 7007160 - BOLT THROUGHT

17 7007161

  • 7007161 - BOLT M6X20

18 7007162

  • 7007162 - BOLT

19 7003977

  • 7003977 - PINION ASSY
  • W/Ref. 22-25

20 7004329

  • 7004329 - CLUTCH ASSEMBLY
  • W/Ref. 23

21 7003998

  • 7003998 - BEARING BALL

22 7004331

  • 7004331 - SHAFT PINION

23 7004397

  • 7004397 - KIT PINION STOP

24 7004423

  • 7004423 - COVER TERMINAL

25 7004082

  • 7004082 - BOLT

26 7028700

  • 7028700 - BOLT
