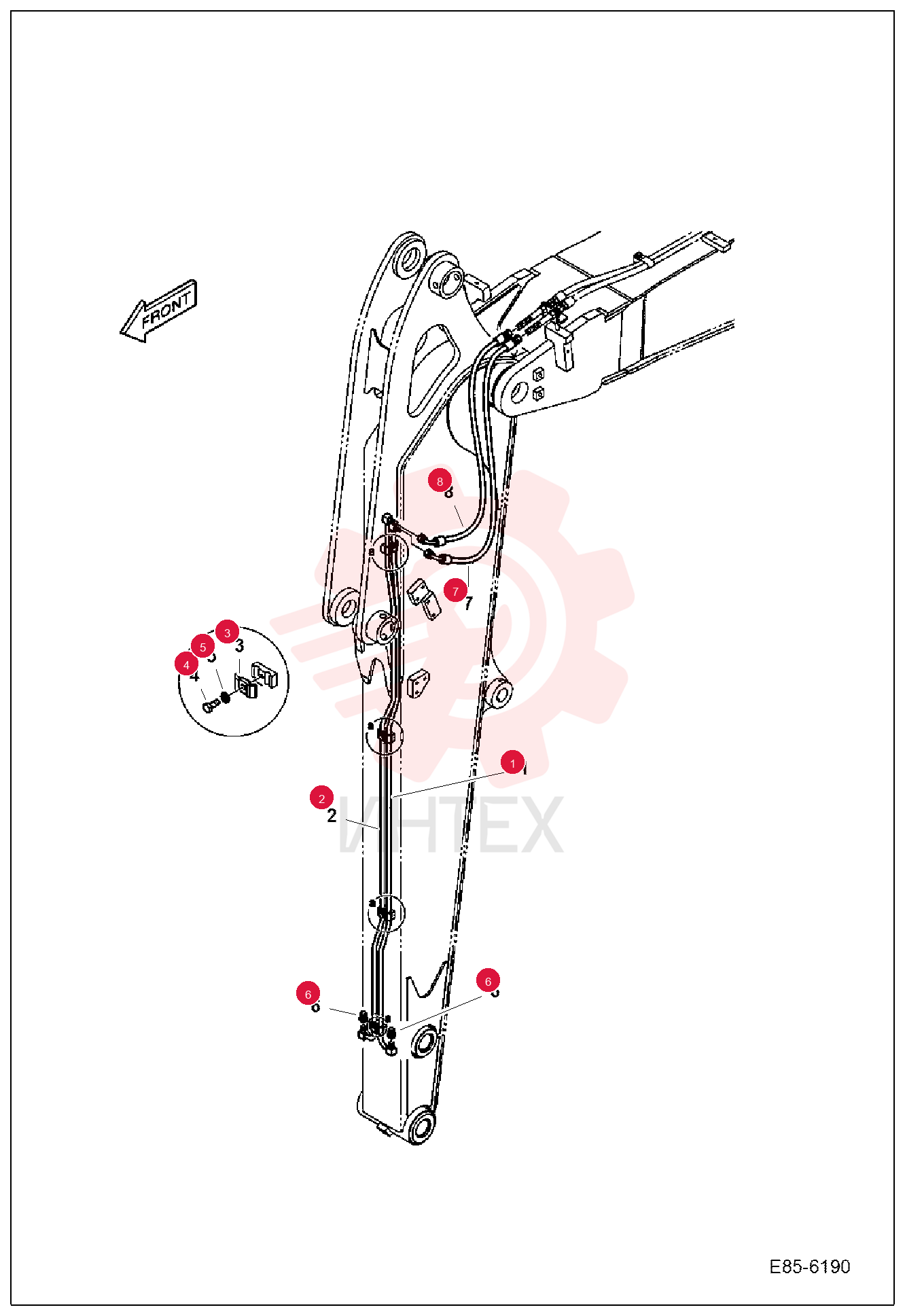

TUBELINE 7029269 (2)

TUBELINE 7029269 (2)

TUBELINE 7029269 (2)

1 7029269

  • 7029269 - TUBELINE

2 7281529

  • 7281529 - TUBELINE
  • HYD

3 7281530

  • 7281530 - TUBELINE
  • HYD

4 7029270

  • 7029270 - TUBELINE

5 7005640

  • 7005640 - CLAMP TUBELINE

6 7007617

  • 7007617 - BOLT

7 7276756

  • 7276756 - WASHER
  • Was 7007834

8 7004764

  • 7004764 - PLUG

9 7029114

  • 7029114 - HOSE
  • HYD

10 7029112

  • 7029112 - HOSE
  • HYD
