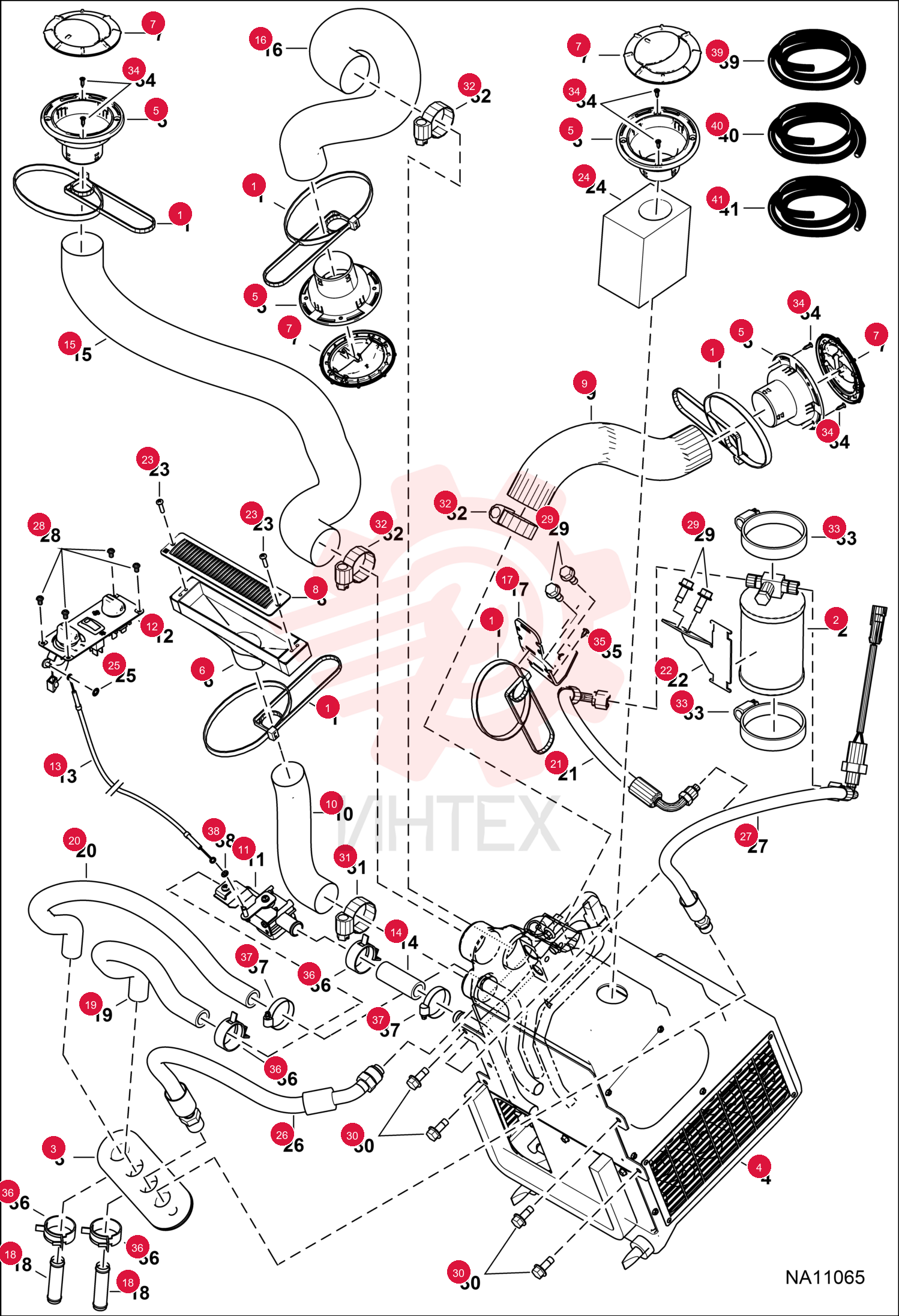

STRAP, TIE 6624289 (1)

STRAP, TIE 6624289 (1)

STRAP, TIE 6624289 (1)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6674235

  • 6674235 - RECEIVER
  • DRIER A/C

3 7147164

  • 7147164 - GROMMET

4 7217214

  • 7217214 - HVAC ASSEMBLY

5 7217215

  • 7217215 - LOUVER

6 7217216

  • 7217216 - LOUVER

7 7217217

  • 7217217 - LOUVER

8 7217218

  • 7217218 - LOUVER

9 7271388

  • 7271388 - KIT
  • WATER VALVE

10 7217230

  • 7217230 - PANEL
  • CONTROL

11 7217231

  • 7217231 - CABLE

12 7255750

  • 7255750 - PLATE

13 7222991

  • 7222991 - PIPE

14 7226201

  • 7226201 - HOSE
  • A/C

15 7226202

  • 7226202 - SUPPORT

16 7284910

  • 7284910 - SCREW

17 7228751

  • 7228751 - FOAM

18 7229422

  • 7229422 - WASHER

19 7231580

  • 7231580 - HOSE
  • A/C

20 7231581

  • 7231581 - HOSE
  • A/C

21 27CM412

  • 27CM412 - SCREW

22 29CM616

  • 29CM616 - SCREW FLGD HEX CAP

23 29CM630

  • 29CM630 - SCREW FLGD HEX CAP

24 42HS20

  • 42HS20 - CLAMP
  • HOSE

25 42H32

  • 42H32 - HS CLAMP5

26 42HS48

  • 42HS48 - CLAMP

27 57G606

  • 57G606 - SCREW

28 58G806

  • 58G806 - SCREW

29 5HM22

  • 5HM22 - HOSE CLAMP

30 42HS10

  • 42HS10 - CLAMP

31 7266588

  • 7266588 - WASHER

32 7231137

  • 7231137 - HOSE BULK

33 7231133

  • 7231133 - HOSE BULK

34 7231136

  • 7231136 - HOSE BULK
