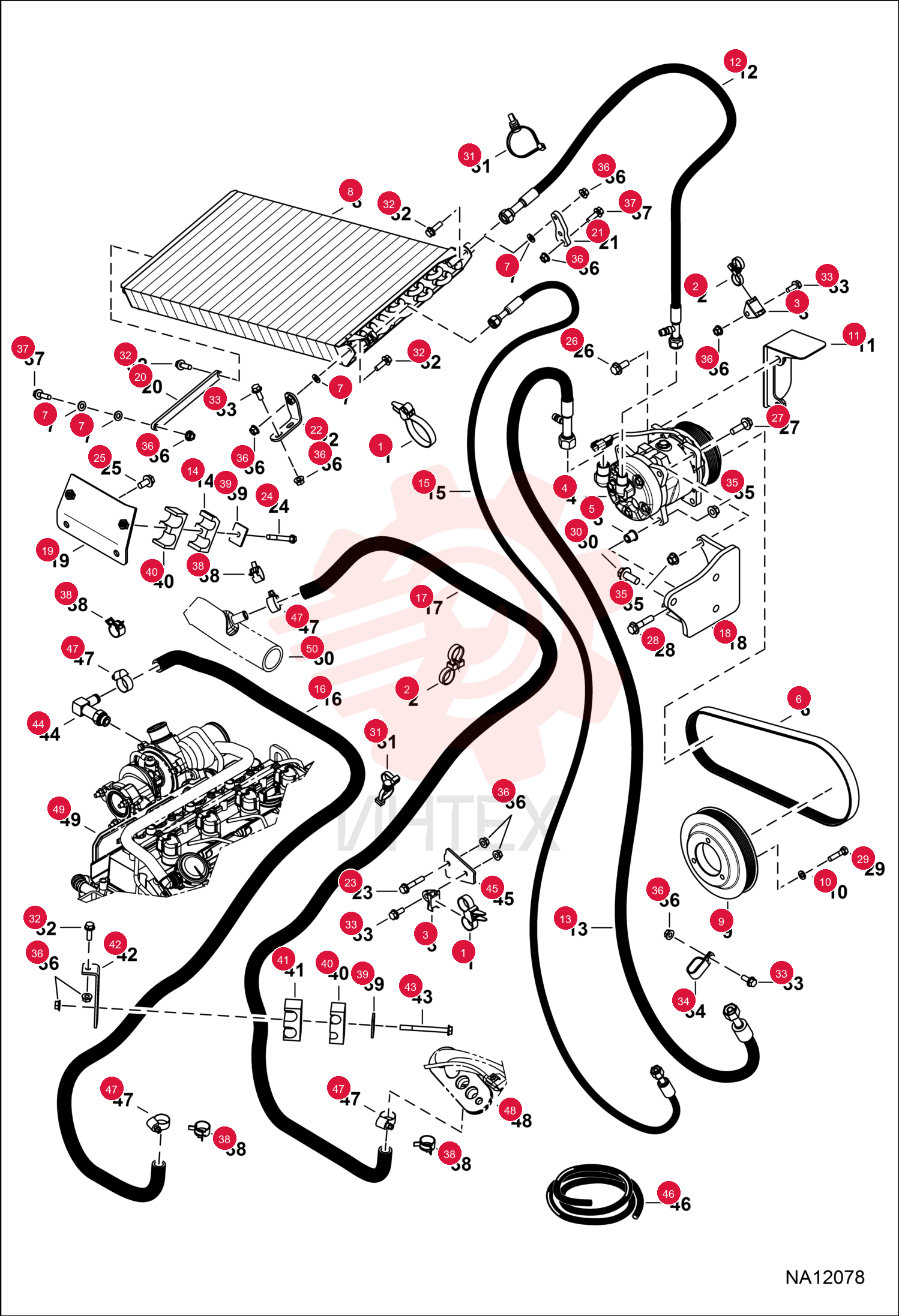

STRAP 6678668

STRAP 6678668

STRAP 6678668

1 6678668

  • 6678668 - STRAP

2 7221316

  • 7221316 - STRAP
  • TIE DUAL

3 6678818

  • 6678818 - MOUNT

4 7279628

  • 7279628 - COMPRESSOR
  • A/C

5 7159243

  • 7159243 - BUSHING

6 7168236

  • 7168236 - BELT
  • COMPRESSOR A/C

7 7181508

  • 7181508 - WASHER

8 7214712

  • 7214712 - CONDENSER

9 7255539

  • 7255539 - PULLEY

10 18EM816

  • 18EM816 - WASHER

11 7302344

  • 7302344 - COVER

12 7302477

  • 7302477 - HOSE

13 7269817

  • 7269817 - HOSE
  • A/C

14 7275626

  • 7275626 - CLAMP

15 7270678

  • 7270678 - HOSE
  • A/C ASSY

16 7255527

  • 7255527 - HOLDER

17 7312139

  • 7312139 - PLATE ASSEMBLY

18 7271245

  • 7271245 - LEVER

19 7302482

  • 7302482 - SUPPORT

20 7295822

  • 7295822 - SUPPORT

21 29CM845

  • 29CM845 - SCREW HEX FLANGE

22 29CM870

  • 29CM870 - BOLT

23 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

24 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

25 29CM1035

  • 29CM1035 - SCREW HEX 10MMX35MM

26 29CM1045

  • 29CM1045 - BOLT

27 7CM835

  • 7CM835 - SCREW

28 29CM1230

  • 29CM1230 - BOLT

29 7231699

  • 7231699 - STRAP
  • DOUBLE

30 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

31 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

32 31H34

  • 31H34 - CLIP

33 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

34 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

35 29CM830

  • 29CM830 - SCREW HEX

36 5HM22

  • 5HM22 - HOSE CLAMP

37 7216402

  • 7216402 - PLATE COVER

38 7234248

  • 7234248 - CLAMP

39 7234249

  • 7234249 - CLAMP

40 7234250

  • 7234250 - PLATE

41 29CM880

  • 29CM880 - BOLT

42 7271280

  • 7271280 - FITTING

43 7302534

  • 7302534 - PLATE
  • MOUNTING

44 7311199

  • 7311199 - HOSE HEATER

45 42H10

  • 42H10 - HOSECLAM5
