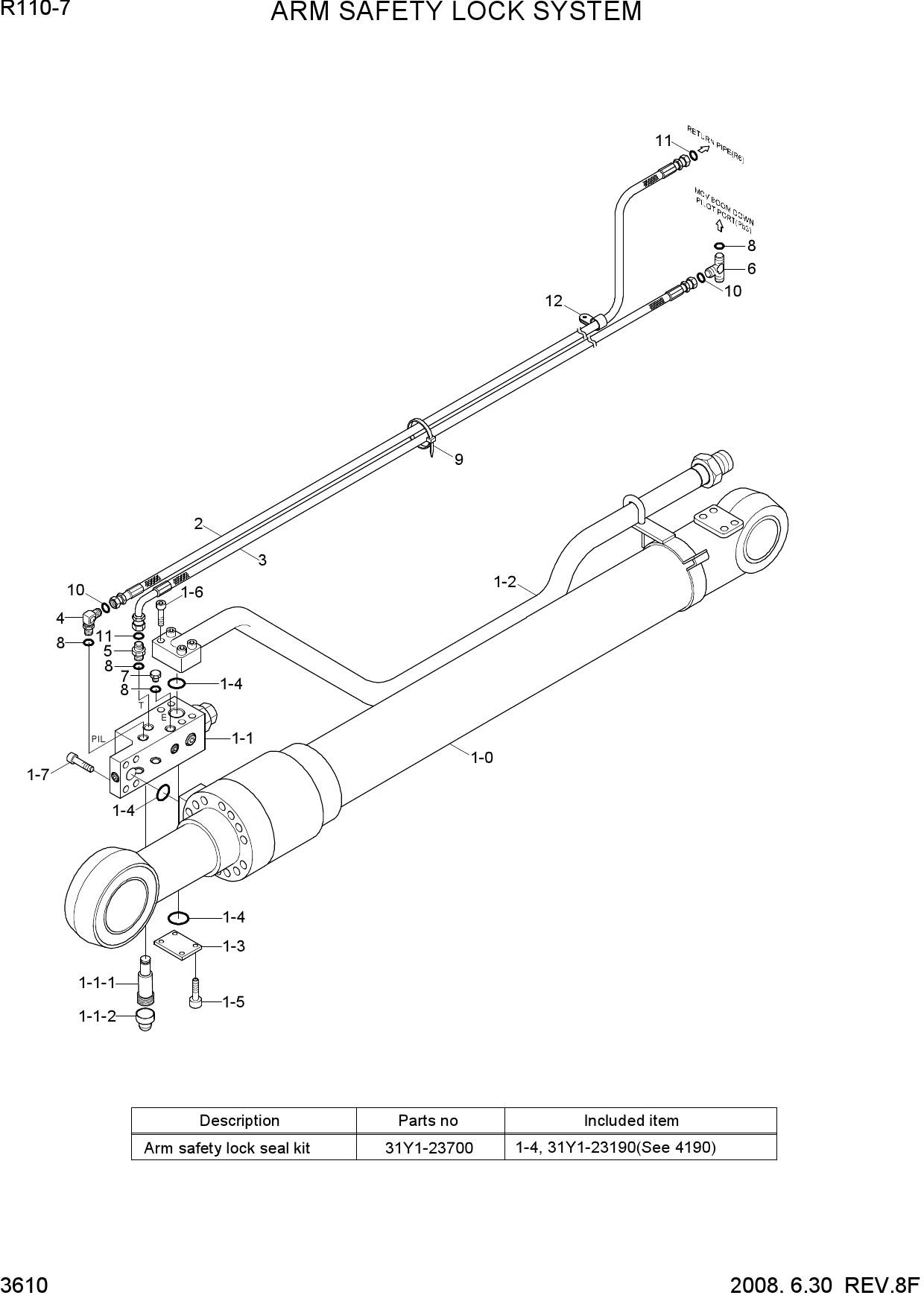

ARM SAFETY LOCK SYSTEM
1 31N3-52130
- 31N3-52130 - ARM CYL ASSY S/VALVE
- Поз.: 1
2 31N3-52132
- 31N3-52132 - ARM CYL ASSY S/VALVE
- Поз.: 1
3 31N3-52133
- 31N3-52133 - ARM CYL ASSY S/VALVE
- Поз.: 1
4 31N3-52330
- 31N3-52330 - ARM CYL ASSY S/VALVE
- Поз.: 1
5 31N6-90510
- 31N6-90510 - VALVE-SAFETY LOCK
- Поз.: 1-1
6 31NA-90560
- 31NA-90560 - LOCK VALVE-ARM SAFETY
- Поз.: 1-1
7 41144039960000
- 41144039960000 - RELIEF VALVE
- Поз.: 1-1-1
8 DRV-100A
- DRV-100A - VALVE-RELIEF
- Поз.: 1-1-1
9 110418005000000
- 110418005000000 - CAP
- Поз.: 1-1-2
10 DCP-001A
- DCP-001A - CAP
- Поз.: 1-1-2
11 K84926036307010
- K84926036307010 - Deleted
- Поз.: 1-1-3
12 AS568-1
- AS568-1 - SEAL KIT
- Поз.: 1-1-3
13 31Y1-23180
- 31Y1-23180 - PIPE ASSY-RV
- Поз.: 1-2
14 H014-28010
- H014-28010 - Deleted
- Поз.: 1-2
15 P184-121112
- P184-121112 - FLANGE-HYD
- PLUGING
- Поз.: 1-3
16 S109-100356
- S109-100356 - BOLT-SOCKET
- Поз.: 1-5
17 S107-100456
- S107-100456 - BOLT-SOCKET
- Поз.: 1-6
18 S107-100506
- S107-100506 - BOLT-SOCKET
- Поз.: 1-7
19 P930-042116
- P930-042116 - HOSE ASSY-ORFS 0X90
- Поз.: 2
20 P930-062119
- P930-062119 - HOSE ASSY-ORFS 0X90
- Поз.: 3
21 31N6-25110
- 31N6-25110 - ELBOW-90
- ORFS
- LONG
- Поз.: 4
22 X500-110011
- X500-110011 - CONNECTOR-ORFS
- Поз.: 5
23 31N4-22150
- 31N4-22150 - TEE-LONG
- ORFS
- Поз.: 6
24 P220-110102
- P220-110102 - PLUG-HEX
- Поз.: 7
25 S631-014001
- S631-014001 - O-RING
- Поз.: 8
26 S552-020102
- S552-020102 - CLAMP-BAND
- Поз.: 9
27 S621-011001
- S621-011001 - O-RING
- Поз.: 10
28 S621-012001
- S621-012001 - O-RING
- Поз.: 11
29 S542-200002
- S542-200002 - CLAMP-TUBE
- Поз.: 12
