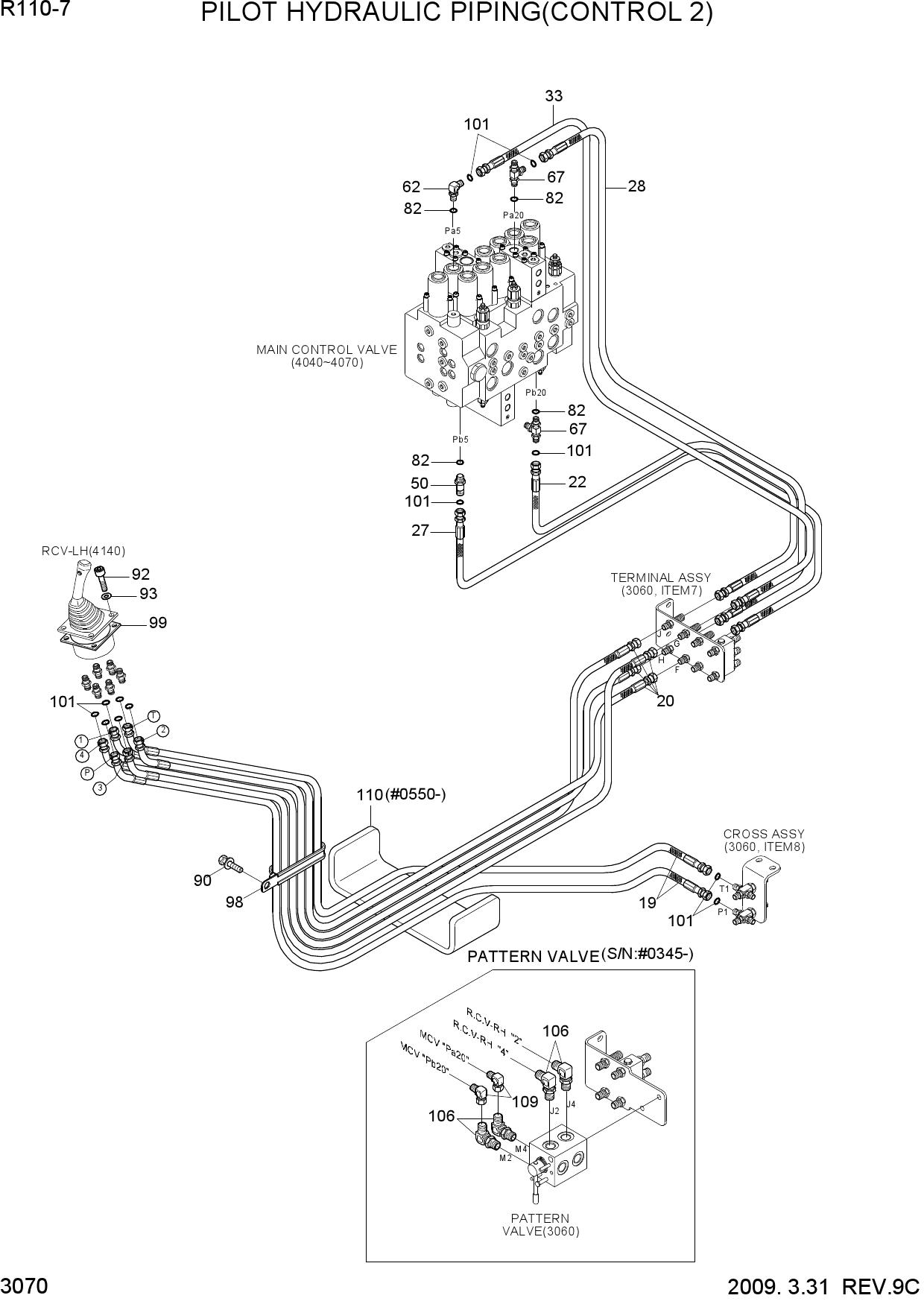

PILOT HYDRAULIC PIPING(CONTROL 2)
1 X410-042027
- X410-042027 - HOSE ASSY-ORFS 0X45
- Поз.: 19
2 X410-042035
- X410-042035 - HOSE ASSY-ORFS 0X45
- Поз.: 20
3 X400-042018
- X400-042018 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 22
4 X400-042022
- X400-042022 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 27
5 X400-042026
- X400-042026 - HOSE ASSY-ORFS 0X0
- Поз.: 28
6 X400-042030
- X400-042030 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 33
7 X511-104513
- X511-104513 - CONNECTOR-LONG
- ORFS
- Поз.: 50
8 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 62
9 X820-045151
- X820-045151 - TEE-R/TYPE
- ORFS
- Поз.: 67
10 S631-011004
- S631-011004 - O-RING
- Поз.: 82
11 S037-102042
- S037-102042 - BOLT-W/WASHER
- Поз.: 90
12 S175-060256
- S175-060256 - SCREW-SOCKET RD HD
- Поз.: 92
13 S403-062006
- S403-062006 - WASHER-PLAIN
- Поз.: 93
14 31E7-0312
- 31E7-0312 - CLAMP-HOSE
- Поз.: 98
15 31M6-51061
- 31M6-51061 - SHIM(3.2T)
- Поз.: 99
16 S621-011001
- S621-011001 - O-RING
- Поз.: 101
17 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 106
18 X850-515100
- X850-515100 - ELBOW-90
- SWIVEL
- ORFS
- Поз.: 109
19 34E7-03140
- 34E7-03140 - GROMMET
- Поз.: 1100
