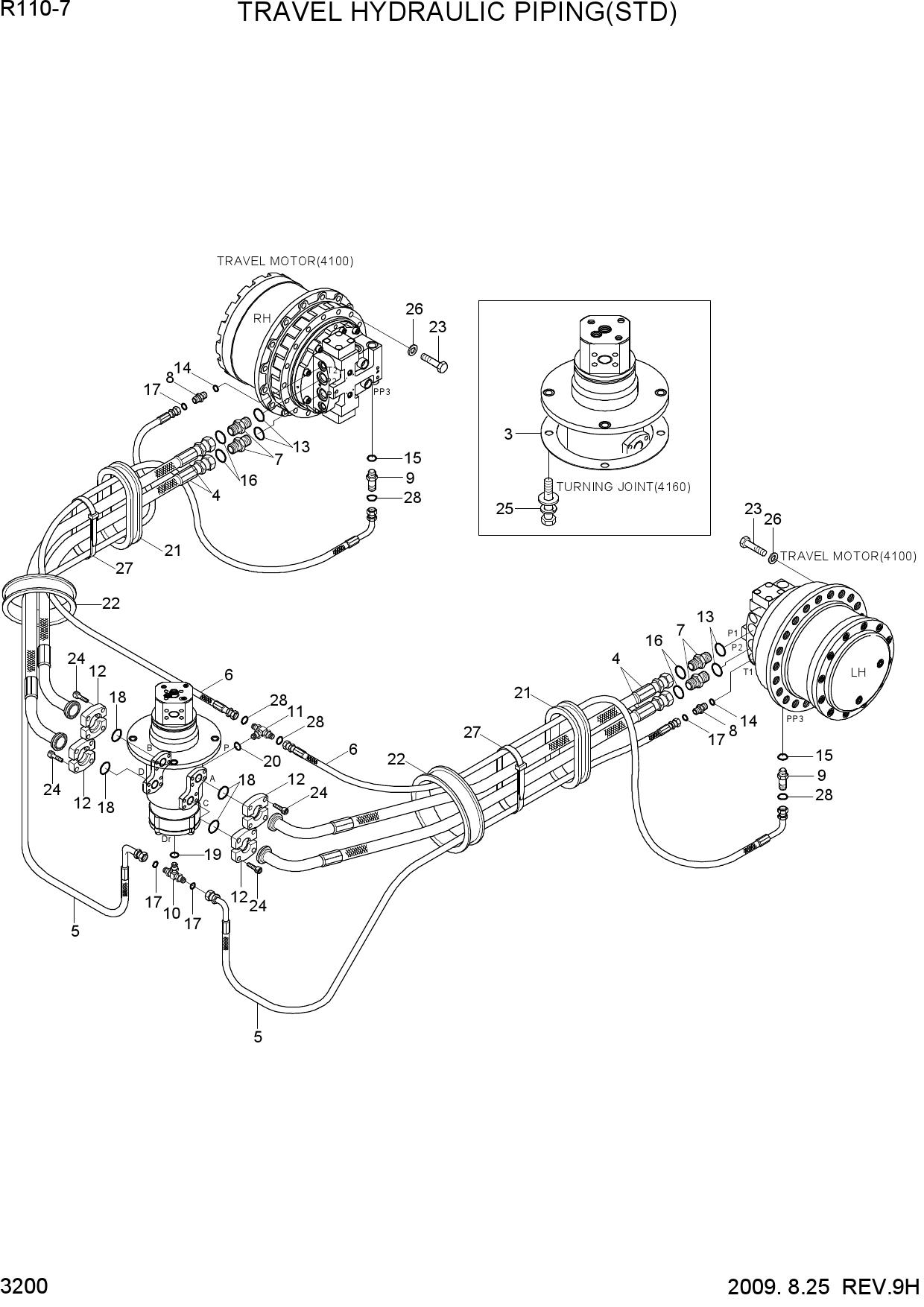

TRAVEL HYDRAULIC PIPING(STD)
1 31N1-40970
- 31N1-40970 - GASKET
- Поз.: 3
2 P950-127330
- P950-127330 - HOSE ASSY-ORFS
- FLG 0X45
- Поз.: 4
3 P920-082031
- P920-082031 - HOSE ASSY-ORFS 0X45
- Поз.: 5
4 P930-042036
- P930-042036 - HOSE ASSY-ORFS 0X90
- Поз.: 6
5 P930-042039
- P930-042039 - HOSE ASSY-ORFS 0X90
- Поз.: 6
6 X500-310004
- X500-310004 - CONNECTOR-ORFS
- Поз.: 7
7 X500-310003
- X500-310003 - CONNECTOR-ORFS
- Поз.: 8
8 31N5-10420
- 31N5-10420 - CONNECTOR-LONG
- Поз.: 9
9 X500-310001
- X500-310001 - CONNECTOR-ORFS
- Поз.: 9
10 X810-085353
- X810-085353 - TEE-B/TYPE
- ORFS
- Поз.: 10
11 X810-065151
- X810-065151 - TEE-B/TYPE
- ORFS
- Поз.: 11
12 P173-120102
- P173-120102 - FLANGE-HYD
- SPLIT
- Поз.: 12
13 S611-023001
- S611-023001 - O-RING
- Поз.: 13
14 S611-016001
- S611-016001 - O-RING
- Поз.: 14
15 S611-009001
- S611-009001 - O-RING
- Поз.: 15
16 S621-018001
- S621-018001 - O-RING
- Поз.: 16
17 S621-014001
- S621-014001 - O-RING
- Поз.: 17
18 Y171-019001
- Y171-019001 - O-RING
- Поз.: 18
19 S631-018004
- S631-018004 - O-RING
- Поз.: 19
20 S631-014004
- S631-014004 - O-RING
- Поз.: 20
21 S760-101221
- S760-101221 - GROMMET
- Поз.: 21
22 31E3-31230
- 31E3-31230 - GROMMET
- Поз.: 22
23 S017-160502
- S017-160502 - BOLT-HEX
- Поз.: 23
24 S109-100306
- S109-100306 - BOLT-SOCKET
- Поз.: 24
25 S037-123022
- S037-123022 - BOLT-W/WASHER
- Поз.: 25
26 S441-160002
- S441-160002 - WASHER-HARDENED
- Поз.: 26
27 S552-102370
- S552-102370 - CLAMP-BAND
- Поз.: 27
28 S621-011001
- S621-011001 - O-RING
- Поз.: 28
