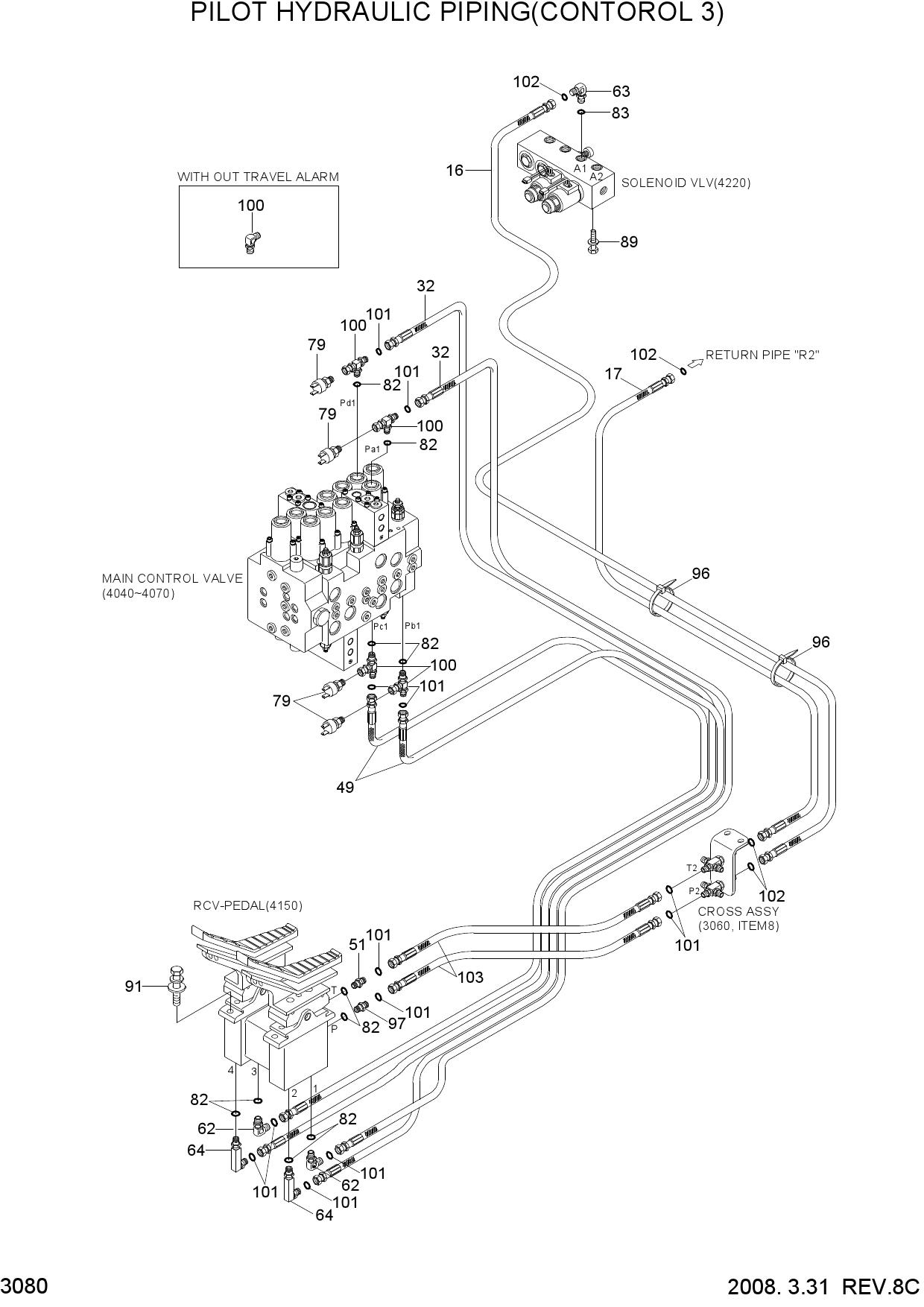

PILOT HYDRAULIC PIPING(CONTROL 3)
1 X400-062053
- X400-062053 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 16
2 X420-062026
- X420-062026 - HOSE ASSY-ORFS 0X90
- Поз.: 17
3 X400-042066
- X400-042066 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 32
4 X400-042057
- X400-042057 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 49
5 X500-110001
- X500-110001 - CONNECTOR-ORFS
- Поз.: 51
6 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 62
7 X520-110002
- X520-110002 - ELBOW-90
- ORFS
- Поз.: 63
8 31N6-25110
- 31N6-25110 - ELBOW-90
- ORFS
- LONG
- Поз.: 64
9 31E5-40540
- 31E5-40540 - SWITCH-PRESSURE
- Поз.: 79
10 S631-011004
- S631-011004 - O-RING
- Поз.: 82
11 S631-014004
- S631-014004 - O-RING
- Поз.: 83
12 S035-082542
- S035-082542 - BOLT-W/WASHER
- Поз.: 89
13 S037-103022
- S037-103022 - BOLT-W/WASHER
- Поз.: 91
14 S551-050203
- S551-050203 - CLAMP-BAND
- Поз.: 96
15 31N6-25060
- 31N6-25060 - FILTER-LAST GUARD
- Поз.: 97
16 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 100
17 31N1-20100
- 31N1-20100 - TEE
- Поз.: 100
18 S621-011001
- S621-011001 - O-RING
- Поз.: 101
19 S621-012001
- S621-012001 - O-RING
- Поз.: 102
20 X400-042019
- X400-042019 - HOSE ASSY-SYNFLEX
- ORFS
- Поз.: 103
