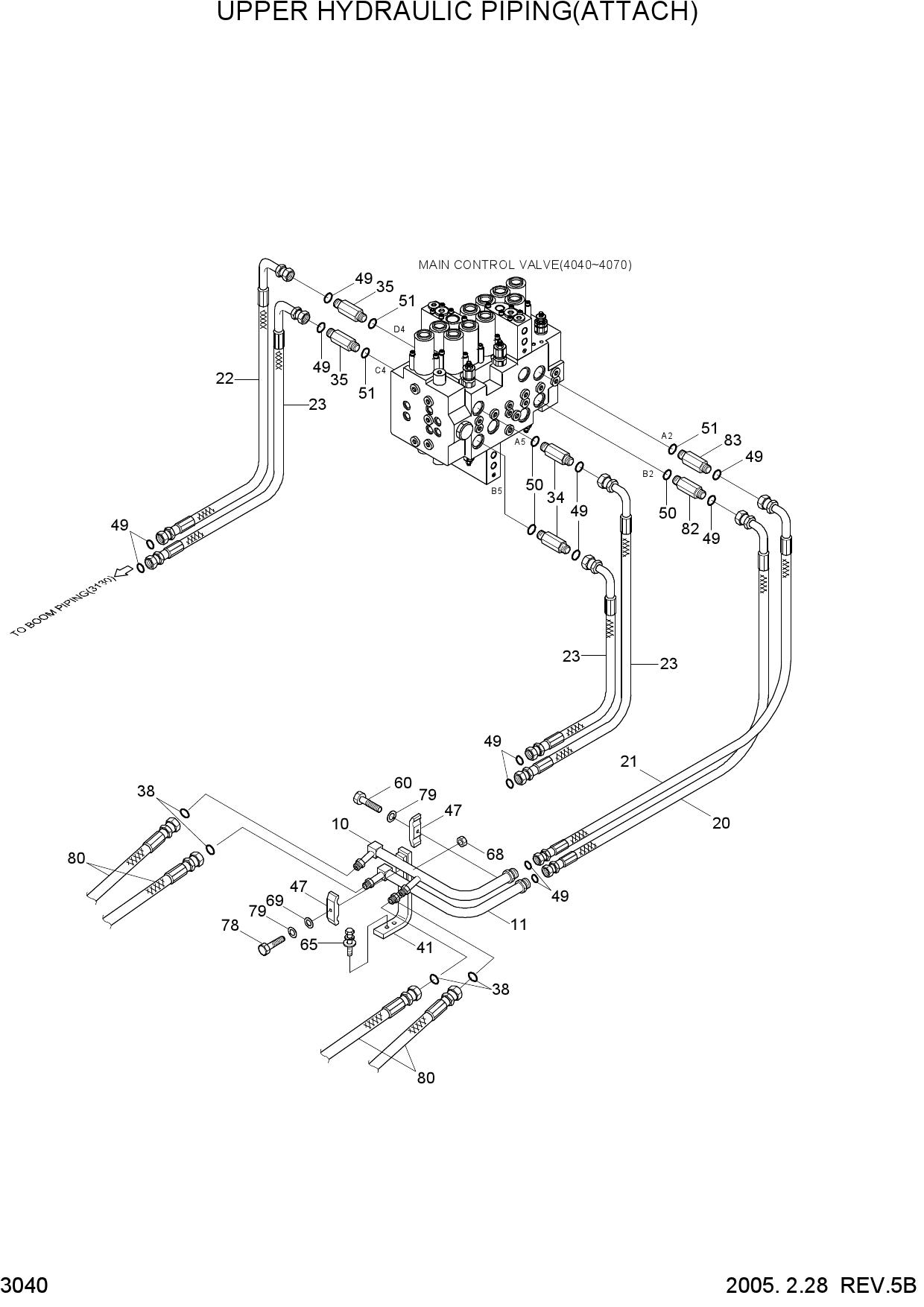

UPPER HYDRAULIC PIPING(ATTACH)
1 31N4-12051
- 31N4-12051 - PIPE ASSY
- Поз.: 10
2 31N4-12062
- 31N4-12062 - PIPE ASSY
- Поз.: 11
3 P933-127018
- P933-127018 - HOSE ASSY-ORFS 0X90
- Поз.: 20
4 P933-127020
- P933-127020 - HOSE ASSY-ORFS 0X90
- Поз.: 21
5 P933-127025
- P933-127025 - HOSE ASSY-ORFS 0X90
- Поз.: 22
6 P933-127024
- P933-127024 - HOSE ASSY-ORFS 0X90
- Поз.: 23
7 X511-112546
- X511-112546 - CONNECTOR-LONG
- ORFS
- Поз.: 34
8 X511-116546
- X511-116546 - CONNECTOR-LONG
- ORFS
- Поз.: 35
9 S621-014001
- S621-014001 - O-RING
- Поз.: 38
10 S621-018001
- S621-018001 - O-RING
- Поз.: 38
11 31N4-12310
- 31N4-12310 - BRACKET-RETURN
- Поз.: 41
12 31N4-12270
- 31N4-12270 - CLAMP-PIPE
- Поз.: 47
13 S621-018001
- S621-018001 - O-RING
- Поз.: 49
14 S631-024001
- S631-024001 - O-RING
- Поз.: 50
15 S631-029001
- S631-029001 - O-RING
- Поз.: 51
16 S017-100606
- S017-100606 - BOLT-HEX
- Поз.: 60
17 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 65
18 S205-101006
- S205-101006 - NUT-HEX
- Поз.: 68
19 S403-102006
- S403-102006 - WASHER-PLAIN
- Поз.: 69
20 S017-100852
- S017-100852 - BOLT-HEX
- Поз.: 78
21 S411-100006
- S411-100006 - WASHER-SPRING
- Поз.: 79
22 31N4-50261
- 31N4-50261 - HOSE ASSY-ORFS 0X0
- Поз.: 80
23 P913-087014
- P913-087014 - HOSE ASSY-ORFS 0X0
- Поз.: 80
24 X511-112548
- X511-112548 - CONNECTOR-LONG
- ORFS
- Поз.: 82
25 X511-116548
- X511-116548 - CONNECTOR-LONG
- ORFS
- Поз.: 83
