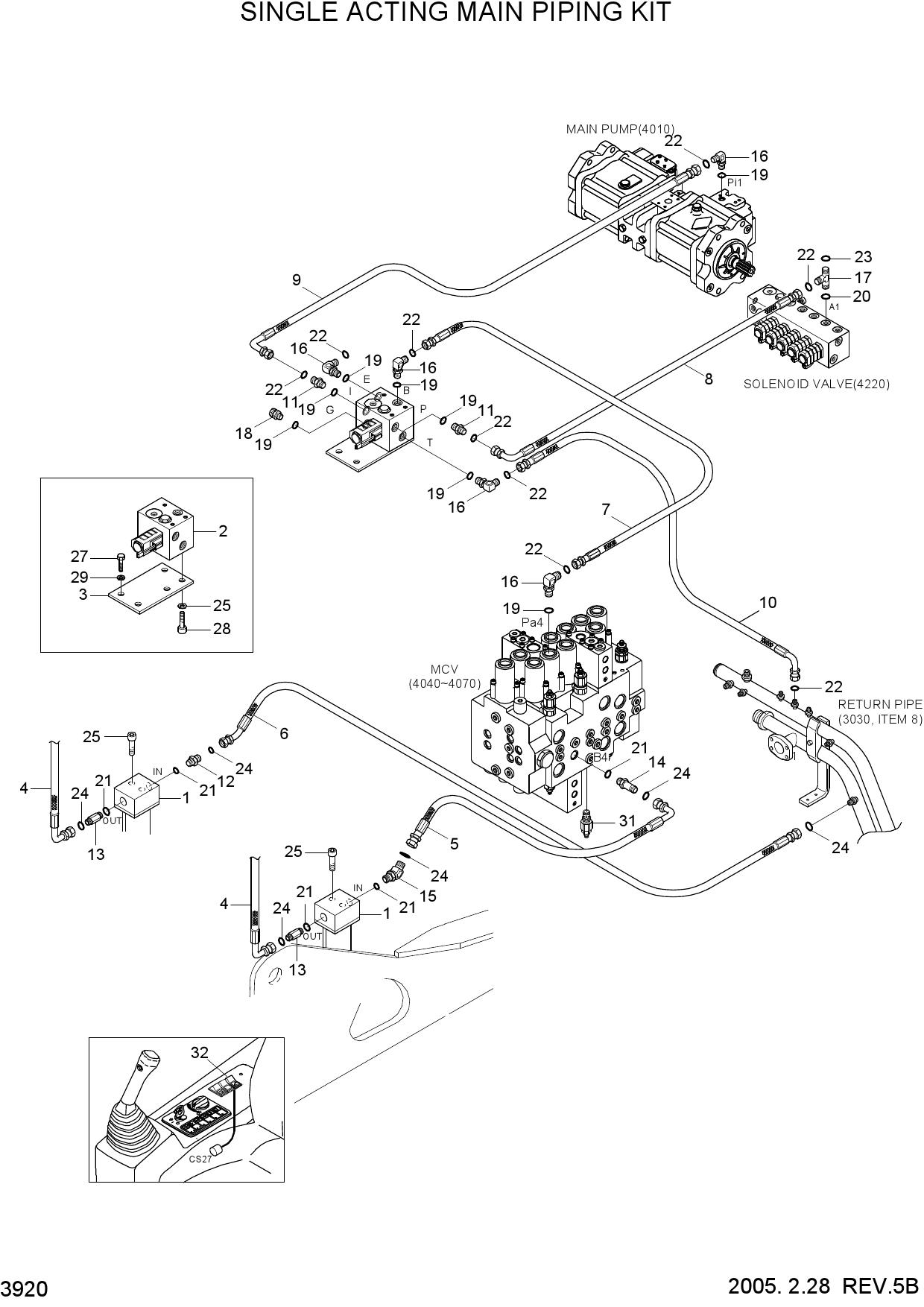

SINGLE ACTING MAIN PIPING KIT
1 31N4-95280
- 31N4-95280 - BLOCK-HOSE JOINT
- Поз.: 1
2 31N3-92360
- 31N3-92360 - VALVE-CONTROL
- Поз.: 2
3 31N3-92370
- 31N3-92370 - BRACKET
- Поз.: 3
4 P923-126022
- P923-126022 - HOSE ASSY-ORFS 0X45
- Поз.: 4
5 P933-126015
- P933-126015 - HOSE ASSY-ORFS
- Поз.: 5
6 P923-123025
- P923-123025 - HOSE ASSY-ORFS 0X45
- Поз.: 6
7 P910-042044
- P910-042044 - HOSE ASSY-ORFS 0X0
- Поз.: 7
8 P930-042013
- P930-042013 - HOSE ASSY-ORFS 0X90
- Поз.: 8
9 P930-042016
- P930-042016 - HOSE ASSY-ORFS 0X90
- Поз.: 9
10 P930-042044
- P930-042044 - HOSE ASSY-ORFS 0X90
- Поз.: 10
11 X500-110001
- X500-110001 - CONNECTOR-ORFS
- Поз.: 11
12 X500-110004
- X500-110004 - CONNECTOR-ORFS
- Поз.: 12
13 X511-112533
- X511-112533 - CONN-LONG
- ORFS
- Поз.: 13
14 X511-112546
- X511-112546 - CONNECTOR-LONG
- ORFS
- Поз.: 14
15 X530-110004
- X530-110004 - ELBOW-45
- ORFS
- Поз.: 15
16 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 16
17 X820-065152
- X820-065152 - TEE-R/TYPE
- ORFS
- Поз.: 17
18 31EK-11130
- 31EK-11130 - COUPLING-SCREW
- Поз.: 18
19 S631-011004
- S631-011004 - O-RING
- Поз.: 19
20 S631-014004
- S631-014004 - O-RING
- Поз.: 20
21 S631-024004
- S631-024004 - O-RING
- Поз.: 21
22 S621-011001
- S621-011001 - O-RING
- Поз.: 22
23 S621-012001
- S621-012001 - O-RING
- Поз.: 23
24 S621-018001
- S621-018001 - O-RING
- Поз.: 24
25 S017-080156
- S017-080156 - BOLT-HEX
- Поз.: 25
26 S109-120556
- S109-120556 - BOLT-SOCKET
- Поз.: 26
27 S017-100256
- S017-100256 - BOLT-HEX
- Поз.: 27
28 S411-080006
- S411-080006 - WASHER-SPRING
- Поз.: 28
29 S411-100006
- S411-100006 - WASHER-SPRING
- Поз.: 29
30 31N4-90530
- 31N4-90530 - PORT RELIEF VALVE
- Поз.: 31
31 21E6-30540
- 21E6-30540 - SWITCH-BREAKER
- Поз.: 32
