New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

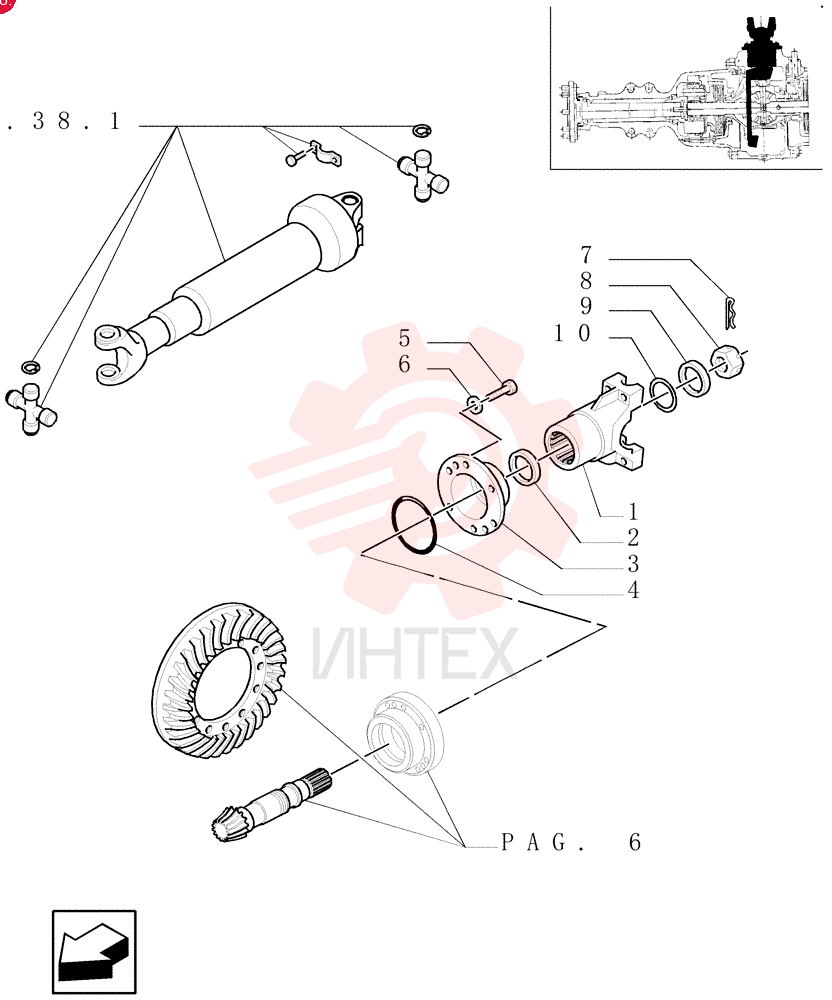

FLANGE 83949810

FLANGE 83949810

FLANGE 83949810

1 83949810

  • 83949810 - FLANGE

2 81834073

  • 81834073 - OIL SEAL
  • 66.67mm ID x 89.03mm OD x 11mm Thk

3 83912246

  • 83912246 - RETAINER

4 81845713

  • 81845713 - SEAL

5 88702

  • 88702 - BOLT
  • Hex
  • 9/16" x 1 1/2"
  • Gr 5
  • Full Thd

6 280248

  • 280248 - LOCK WASHER
  • 9/16"

7 3947107

  • 3947107 - PIN

8 83949812

  • 83949812 - SLOTTED NUT

9 81834042

  • 81834042 - WASHER
  • 32.5mm ID x 53.8mm OD x 5.6mm Thk

10 81845714

  • 81845714 - SEAL
