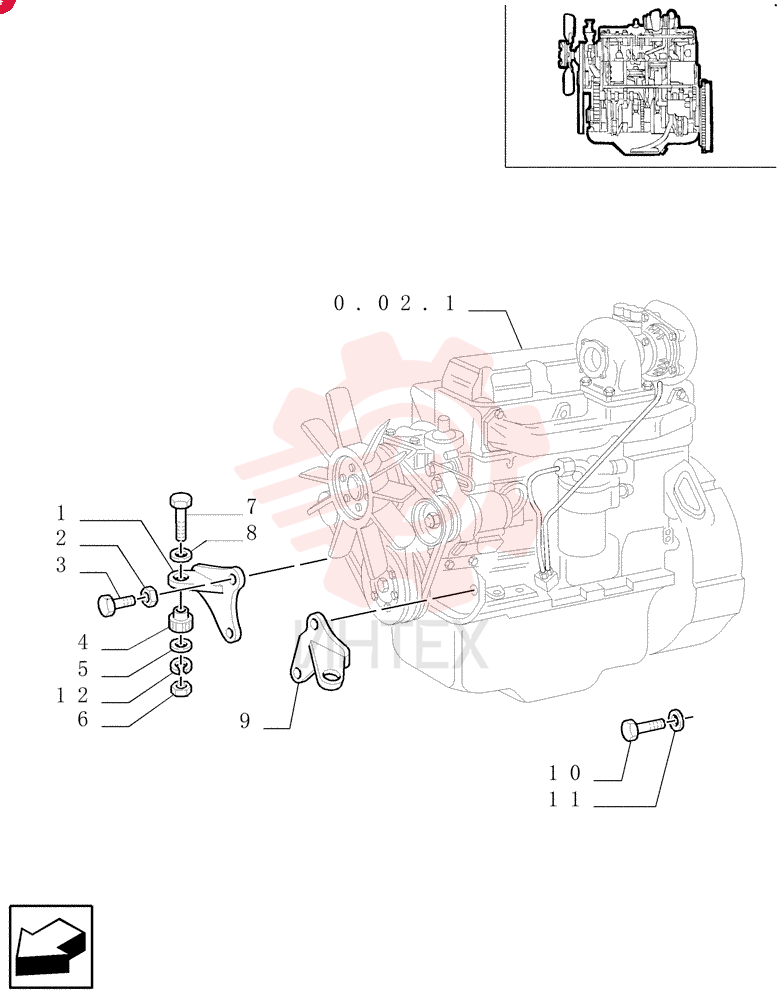

ENGINE MOUNT
1 85801326
- 85801326 - ENGINE MOUNT
2 280375
- 280375 - NUT
- 3/4"-10
- GC
3 281074
- 281074 - BOLT
- Hex
- 3/4" - 10 x 2 1/2"
- Gr 8
4 85804733
- 85804733 - ISOLATOR
- 60mm OD x 55.8mm L
5 85802618
- 85802618 - SEALING WASHER
- 13mm ID x 41mm OD x 3mm Thk
6 16105021
- 16105021 - LOCK NUT
- M12 x 1.25
- Cl 10
7 15541424
- 15541424 - SCREW
- Hex
- M12 x 1.25 x 80mm
- Cl 8.8
8 85801585
- 85801585 - SEALING WASHER
- 13mm ID x 65mm OD x 5mm Thk
9 85801327
- 85801327 - ENGINE MOUNT
10 280259
- 280259 - BOLT
- Hex
- 3/8" - 16 x 2 1/2"
- Gr 8
11 304896S36
- 304896S36 - BOLT
- Hex
- 5/8"-11 x 2 1/2"
- G5
12 D1JJ4273A
- D1JJ4273A - BOLT
13 11190879
- 11190879 - BELLEVILLE WASHER
- M12 Bolt Size x 30mm OD
14 86729275
- 86729275 - LOCK WASHER
- 5/8 0.634 CST ZND
15 9706729
- 9706729 - BOLT
- Hex
- 7/16" - 14 x 1"
- Gr 5
- Full Thd
16 87340
- 87340 - LOCK WASHER
- Helical Spring
- 0.759" ID
- CST
- ZND
