New Holland Construction
/

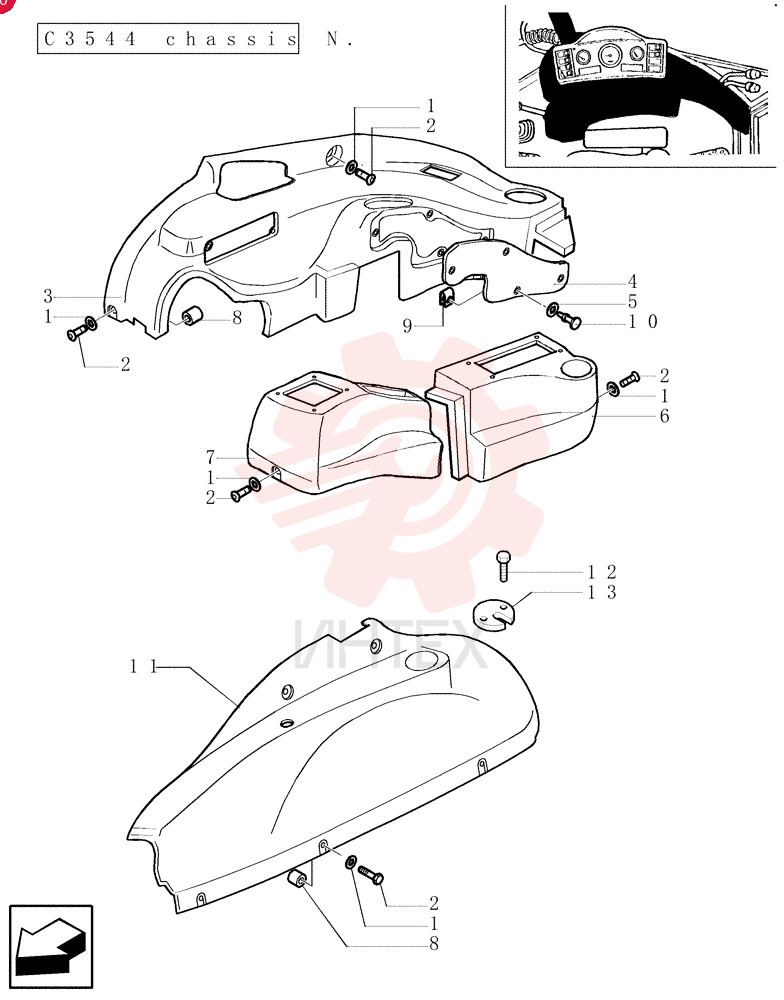

(655E) - TRACTOR LOADER BACKHOE (1/96-)
/
WASHER,6mm ID x 24mm OD x 5mm Thk 79089592 (3)

WASHER,6mm ID x 24mm OD x 5mm Thk 79089592 (3)

WASHER,6mm ID x 24mm OD x 5mm Thk 79089592 (3)

1 79089592

  • 79089592 - WASHER
  • 6mm ID x 24mm OD x 5mm Thk

2 79105220

  • 79105220 - SCREW
  • Phillips Drive
  • Oval HD
  • M6 x 20mm

3 85802094

  • 85802094 - SOFT TRIM

4 85801649

  • 85801649 - SOFT TRIM

5 85801991

  • 85801991 - WASHER
  • 6.3mm OD x 18mm ID x 4mm Thk

6 85802178

  • 85802178 - COVER

7 85801846

  • 85801846 - COVER

8 85801953

  • 85801953 - RIVET
  • M6

9 5154844

  • 5154844 - BRACKET

10 15693507

  • 15693507 - SCREW
  • Over Head
  • M4.8 x 1.6 x 22mm

11 85802096

  • 85802096 - SOFT TRIM

12 5122809

  • 5122809 - SCREW
  • Self-Threading
  • M8 x 16

13 85802388

  • 85802388 - PLUG
