New Holland Construction
/

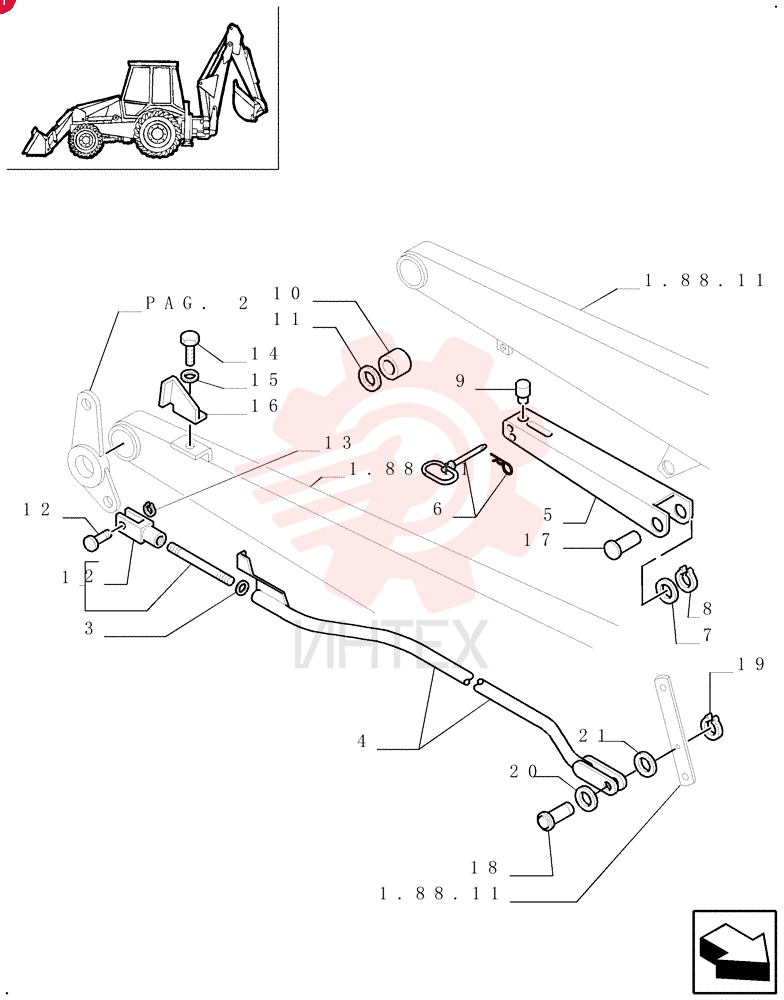

(655E) - TRACTOR LOADER BACKHOE (1/96-)
/
ROD 83963433

ROD 83963433

ROD 83963433

1 83963433

  • 83963433 - ROD

2 83962659

  • 83962659 - CLEVIS
  • M12

3 82879400

  • 82879400 - WASHER

4 85803279

  • 85803279 - ROD
  • 1985mm L

5 85801048

  • 85801048 - LOCK CYLINDER

6 86507337

  • 86507337 - HITCH PIN
  • 12.7mm OD x 133.32mm L

7 191823

  • 191823 - WASHER

8 81902463

  • 81902463 - RING
  • 35.306mm ID x 2.769mm Thk

9 85802403

  • 85802403 - PLUG
  • 13mm OD

10 83963422

  • 83963422 - SPACER
  • 21.92mm ID x 30.02mm OD x 28mm L

11 86511191

  • 86511191 - WASHER
  • 0.81" ID x 2" OD x 0.15" Thk

12 85819179

  • 85819179 - PIN
  • 12mm OD x 32mm L

13 85700341

  • 85700341 - CIRCLIP

14 10979440

  • 10979440 - BOLT
  • Hex
  • M6 x 10mm
  • Brass
  • Full Thd

15 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

16 85803277

  • 85803277 - PLATE

17 85801050

  • 85801050 - PIN
  • 38.1mm OD x 183mm L

18 85803297

  • 85803297 - PIN
  • 15.9mm OD x 43mm L

19 83911366

  • 83911366 - E-RING
  • M16 x 1.16mm Thk

20 85817622

  • 85817622 - WASHER
  • 12mm ID x 24mm OD x 2mm Thk

21 85817623

  • 85817623 - WASHER
  • 12mm ID x 24mm OD x 1.5mm Thk
