New Holland Construction
/

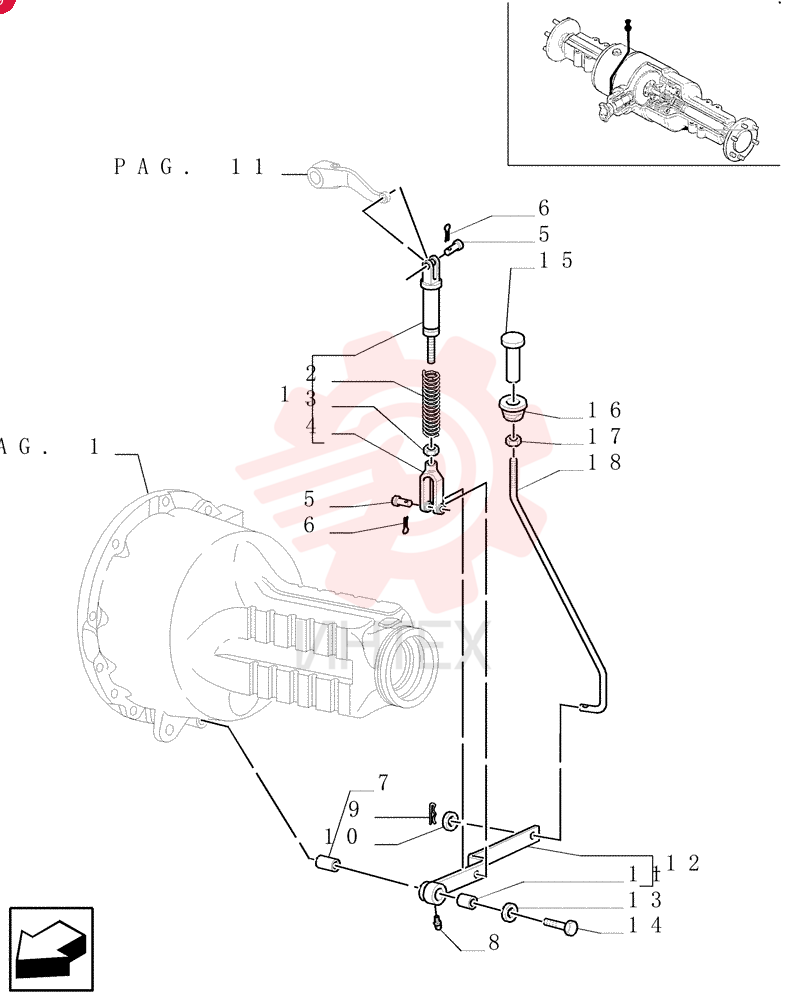

(655E) - TRACTOR LOADER BACKHOE (1/96-)
/
ROD 83949838

ROD 83949838

ROD 83949838

1 83949838

  • 83949838 - ROD

2 81800486

  • 81800486 - SPRING

3 87307

  • 87307 - JAM NUT
  • Jam
  • 5/16"-24
  • G2

4 83952932

  • 83952932 - CLEVIS

5 83948308

  • 83948308 - PIN
  • 7.9mm OD x 27.79mm L

6 10802801

  • 10802801 - COTTER PIN
  • M2.5 x 25

7 81800488

  • 81800488 - SPACER

8 13406911

  • 13406911 - LUBE NIPPLE
  • Straight
  • 1/4"-28 x 0.54"

9 10766901

  • 10766901 - COTTER PIN
  • M3.2 x 25

10 12644921

  • 12644921 - WASHER
  • 14.4mm ID x 32mm OD x 4mm Thk

11 81805231

  • 81805231 - BUSHING
  • 25.38mm ID x 28.69mm OD x 36.83mm L

12 82852327

  • 82852327 - LEVER

13 85802513

  • 85802513 - LEVER

14 14497121

  • 14497121 - WASHER
  • 21mm ID x 37mm OD x 3mm Thk

15 80280173

  • 80280173 - BOLT
  • Hex
  • 3/4" - 10 x 2 3/4"
  • Gr 5

16 83971567

  • 83971567 - PEDAL

17 83904750

  • 83904750 - BUSHING
  • 19mm ID x 47mm OD x 26mm L

18 87309

  • 87309 - JAM NUT
  • Jam
  • 1/2"-20
  • G2

19 85802956

  • 85802956 - ROD

20 85802515

  • 85802515 - ROD
