New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

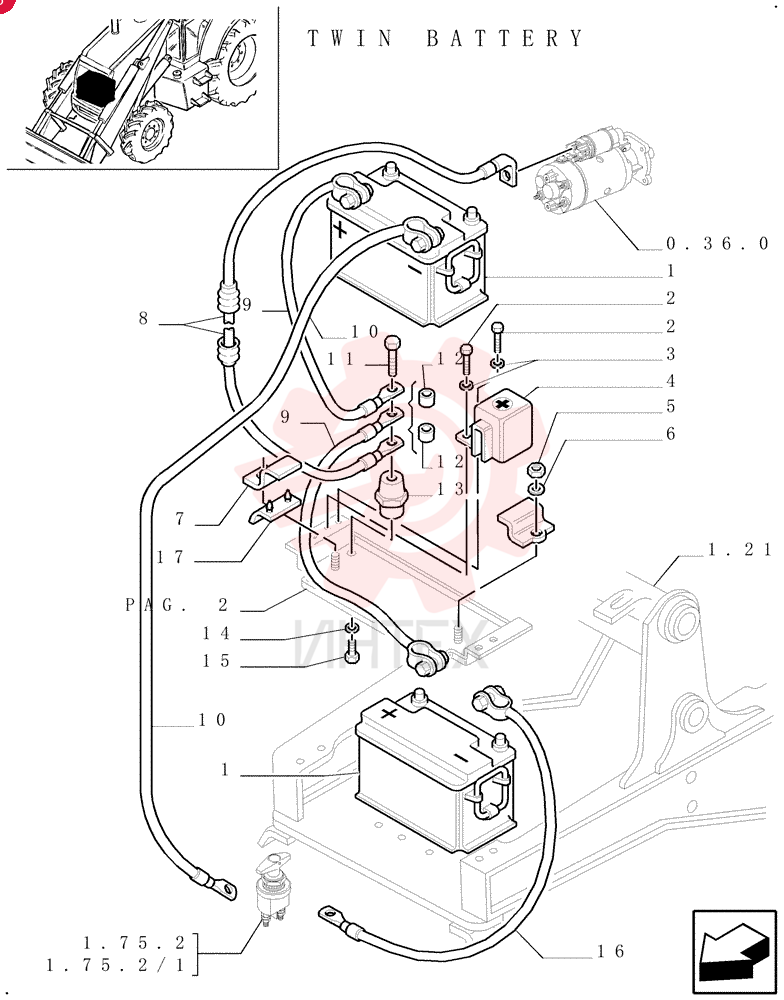

WET BATTERY 82012860 (2)

WET BATTERY 82012860 (2)

WET BATTERY 82012860 (2)

1 82012860

  • 82012860 - WET BATTERY

2 F910DS

  • F910DS - DRY BATTERY

3 9673604DS

  • 9673604DS - DRY BATTERY

4 10902224

  • 10902224 - SCREW
  • Hex
  • M6 x 16mm
  • Cl 8.8
  • Full Thd

5 14496404

  • 14496404 - WASHER
  • M6 x 12 x 2 Thk

6 85804311

  • 85804311 - PROTECTING COVER

7 16104121

  • 16104121 - NUT
  • M8 x 1.25
  • Cl 10

8 12647121

  • 12647121 - WASHER
  • 8.15mm ID x 20mm OD x 3mm Thk

9 85807887

  • 85807887 - PLATE

10 85804316

  • 85804316 - ELECTRIC CABLE

11 85804317

  • 85804317 - ELECTRIC CABLE

12 85804318

  • 85804318 - NEG BATTERY CABLE

13 11107021

  • 11107021 - BOLT
  • Hex
  • M10 x 45mm
  • Cl 8.8

14 85804310

  • 85804310 - SPACER

15 85804309

  • 85804309 - INSULATOR

16 11190574

  • 11190574 - BELLEVILLE WASHER
  • M10 Bolt Size x 20mm OD x 2.3mm Thk

17 10979224

  • 10979224 - BOLT
  • Hex
  • M10 x 16mm
  • Cl 8.8
  • Full Thd

18 85820220

  • 85820220 - NEG BATTERY CABLE

19 85807892

  • 85807892 - RUBBER PAD
