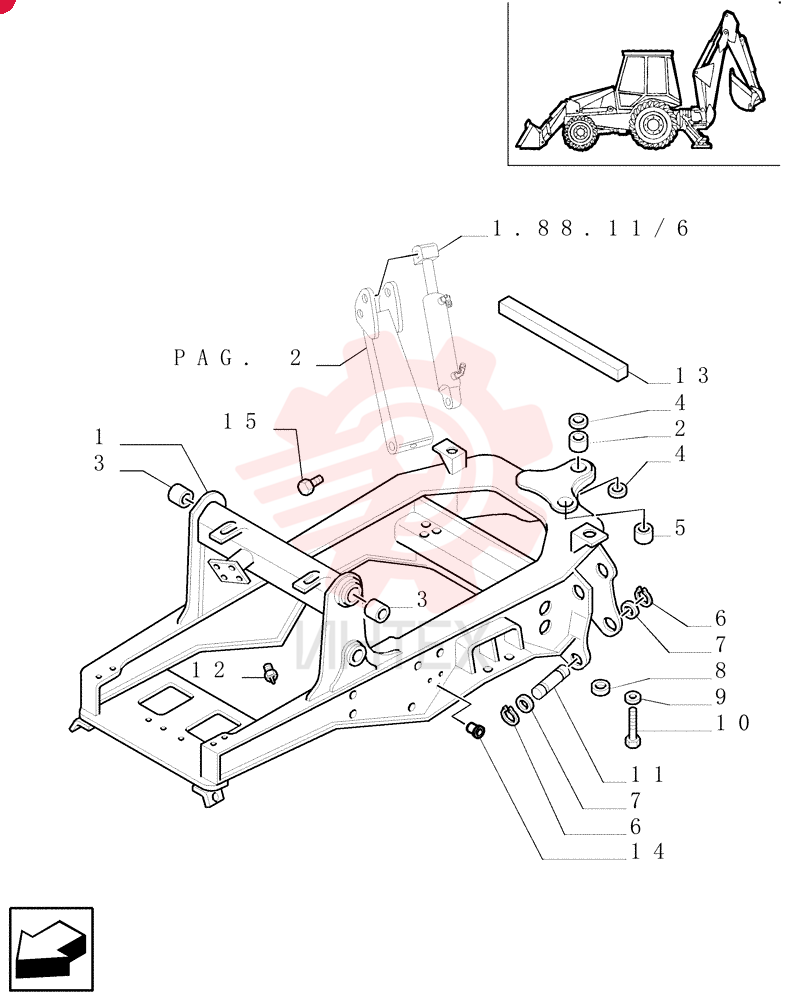

FRAME
1 85801114
- 85801114 - FRAME
2 85700728
- 85700728 - BUSHING
- 70.24mm ID x 86.01mm OD x 50.5mm L
3 85801110
- 85801110 - BUSHING
- 51.15mm ID x 64.98mm OD x 70mm L
4 81875248
- 81875248 - SEAL
- 70mm ID x 80.1mm OD x 5mm Thk
5 83910645
- 83910645 - BUSHING
- 70.35mm ID x 80.18mm OD x 32mm L
6 83911020
- 83911020 - SNAP RING
- 46mm ID
- Ext
7 290885
- 290885 - WASHER
8 85802903
- 85802903 - INSULATOR
9 10520431
- 10520431 - WASHER
- 21mm ID x 35mm OD x 4mm Thk
10 15989137
- 15989137 - BOLT
- Hex
- M20 x 1.5 x 90mm
- Cl 10.9
11 83911000
- 83911000 - PIN
- 50mm OD x 348mm L
12 80710
- 80710 - LUBE NIPPLE
- 1/8” – 27 Dryseal PTF
13 85802338
- 85802338 - STRIP-GASKET
14 85801492
- 85801492 - THREADED INSERT
15 85801485
- 85801485 - THREADED INSERT
16 16043630
- 16043630 - BOLT
- Hex
- M8 x 1.25 x 25mm
- Cl 10.9
- Full Thd
17 16043824
- 16043824 - SCREW
- Hex
- M8 x 1.25 x 30mm
- Cl 8.8
- Full Thd
- DAC
